Corbin Russwin HP3020 HPSK 630 Specialty Hardware HP3000, Privacy Push/Pull Function, HPSK Trim, Satin Stainless Steel

Corbin Russwin HP3020 HPSK 630 Specialty Hardware HP3000, Privacy Push/Pull Function, HPSK Trim, Satin Stainless Steel

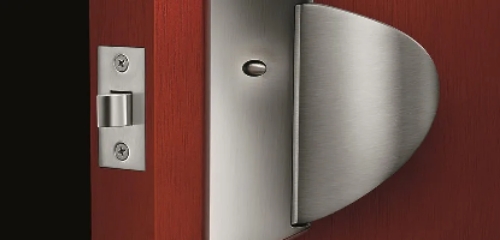

The HP3000 Series tubular Lock with push/pull paddle trim provides an aesthetically pleasing alternative to products with standard push/pull trim. Its heavy-duty design and ANSI/BHMA Grade1 strength help it to withstand abuse from rigorous environments. Multiple mounting orientations, hands free operation and a sleek, aesthetic form, make the HP3000 Series ideal for use in healthcare facilities and educational facilities.

HP3020 - Privacy
- Inside paddle always retracts latch. - Outside paddle retracts latch, except when locked by inside push button. - Closing door unlocks outside paddle. - Includes emergency release. - Vertical orientation required. - Ideal for bathrooms.

Features:

Handing: Passage (HP3010) function is non-handed. Privacy (HP3020) function is handed. Specify hand. Door Thickness: 1-3/4" (44mm) standard. Optional door thicknesses available. Backset: 5" (127mm) standard. Optional: 2-3/4" (70mm) and 7" (177mm). Latchbolt: Brass, 1/2" (13mm) throw. Strike: ANSI curved lip strike standard, 4-7/8" x 1-1/4" x 1-1/4" lip to center. Optional strikes, lip lengths and ANSI wrought strike box available. Covers: Cast stainless steel. Paddles: Cast stainless steel. "PUSH & PULL" Identification available, Quick Code M38. Laser engraving available. Mounting Options: Paddle trim can be mounted as horizontal. (up or down) and vertical (sideways). orientations in the field. Cover and Paddle Dimensions: https://www.americanlocksets.com/images/HP3000-Dm.bmp Warranty: One-year limited.

Corbin Russwin HP3010, HP3010 Corbin Russwin, CorbinHP3010, HP3010Corbin, Corbin HP3000, HP3000 Corbin, CorbinHP3000, HP3000Corbin, Corbin Russwin Paddle Trim, Corbin Healthcare
