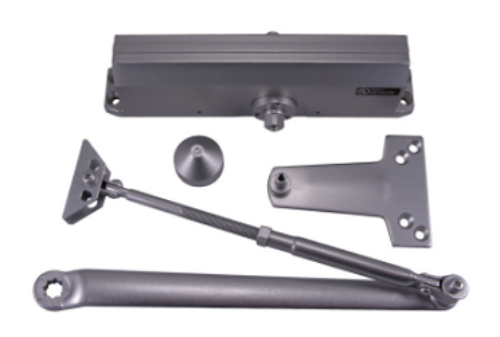

Design Hardware DH-116-AL Heavy Duty Door Closer

*Design Hardware DH-116-AL Heavy Duty Door Closer *

ANSI:Meets ANSI A156.4 Grade 1 Standards

UL Listings:For "A" Label 3 Hour Fire Doors, UL10C Positive Pressure Rated

ADA Compliance:Meets ADA requirements ANSI A117.1

Closer Body:Heavy Duty Cast Aluminum Closer Body, Rack & Pinion Const.

Piston, Spindle, Spring:Heat Treated Heavy Duty Steel Piston, Spindle & Spring

Spring Sizing:Adjustable Spring Power from size 1 to 6 - Factory set at size 3  Speed Controls: Independent Latch & Sweep Speed Controls  Back Check: Back Check Intensity Control Standard  Valves: Staked valves to prevent backing valves out too far

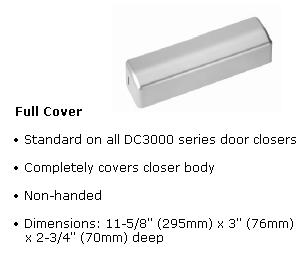

Included Parts:Plastic Pinion Cap & PA Bracket included  Cover: Molded Plastic Cover available separately  CTC Hole Pattern: 9 1/16" CTC Horizontally x 3/4" CTC Vertically  Projection: Slim 2 1/4" projection with cover installed over mtg. plate

Minimun Top Rail:Regular: 3 1/8" - Top Jamb: 1 7/8" - Parallel Arm: 5 3/4"  Fasteners: Machine screws & thru bolts, wood screws & self tapping machine screws included

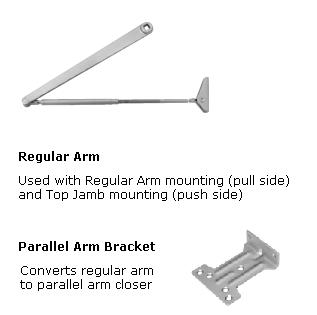

Mounting Styles:Includes all screws and brackets for Regular, Top Jamb and Parallel Arm Installations

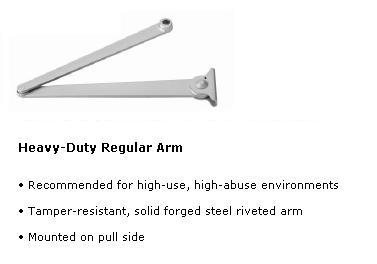

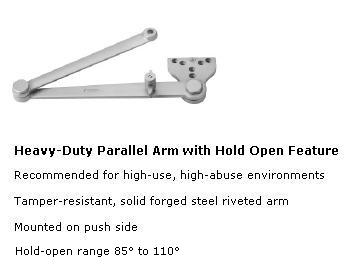

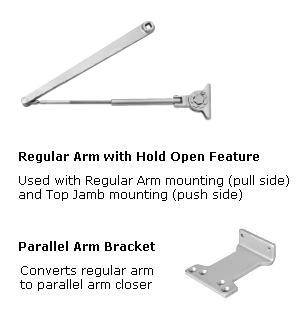

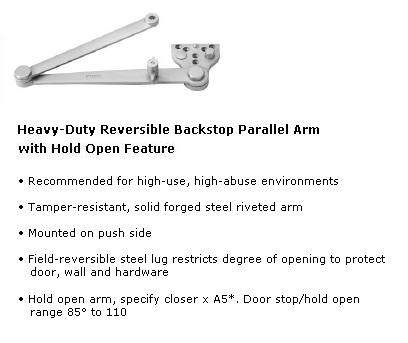

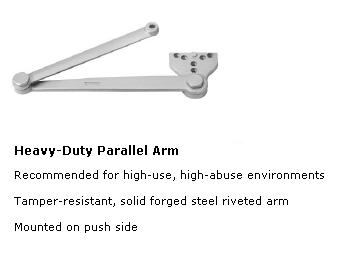

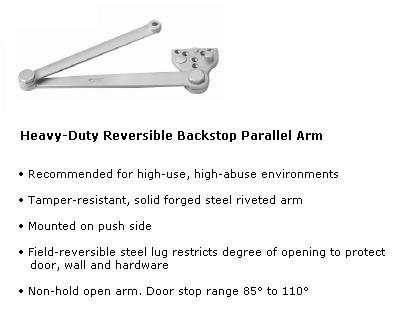

Accessories:Hold Open Arms, Heavy Duty Arms, Drop Plates, Extended Arms & more ...  Warranty: Limited lifetime warranty

MODELS:
