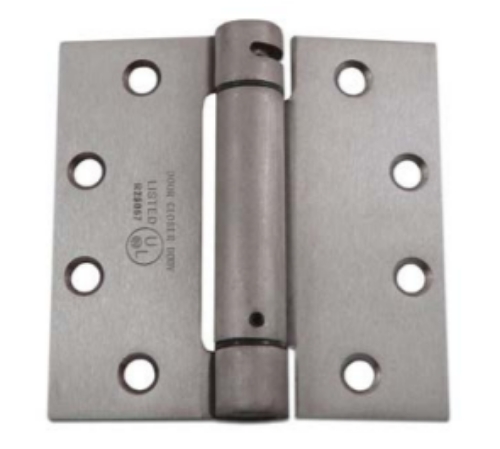

Design Hardware SH-4.5X4.5-26D Spring Hinge - Satin Chrome

Product Details

Design Hardware SH 4.5X4.5 26D Standard Weight Spring Hinge - *Satin Chrome*

ANSI:Meets ANSI A 156.2 - Dimensions and tolerances conform to ANSI - A156.7

Gauge of Metal:.134"

Base Material:Steel (ANSI K81071 F) or Stainless Steel (Grade 304) (ANSI K51071 F) Templating: All hinges have templated hole locations for wood or metal doors

Swaging:1/16" swage standard which provides 1/16" of clearance between leaves

Fasteners:Each box of 3 hinges contains full set of machine and wood screws

Adjustability:Spring tension can be adjusted with hex wrech or tension rod (both are provided) Spring tension is held by tension pin inserted into tension pin hole

Labeled Door Sizes:Maximum labeled door size (As set forth by NFPA80) 4' wide x 8' tall x 1 3/4" thick Meets NFPA80 standard for 3 Hour Fire Doors

NFPA 80 Reference:NFPA 80 requires minimum of 2 spring hinges to be used on

labeld doors Warranty:Limited lifetime warranty

Model:Design Hardware SH-4.5X4.5-26D

Design Hardware SH-4.5X4.5-26D Spring Hinge - Satin Chrome

SKU: Satin Chrome

In Stock

$20.36

$32.90

You saved $12.54

About this item

Design Hardware SH 4.5X4.5 26D Standard Weight Spring Hinge - Satin Chrome

ANSI: Meets ANSI A 156.2 - Dimensions and tolerances conform to ANSI - A156.7

Gauge of Metal: .134"

Base Material: Steel (ANSI K81071 F) or Stainless Steel (Grade 304) (ANSI K51071 F)

Templating:
All hinges have templated hole locations for wood or metal doors

Swaging: 1/16" swage standard which provides 1/16" of clearance between leaves

Fasteners: Each box of 3 hinges contains full set of machine and wood screws

Adjustability: Spring tension can be adjusted with hex wrech or tension rod (both are provided) Spring tension is held by tension pin inserted into tension pin hole

Labeled Door Sizes: Maximum labeled door size (As set forth by NFPA80) 4' wide x 8' tall x 1 3/4" thick Meets NFPA80 standard for 3 Hour Fire Doors

NFPA 80 Reference: NFPA 80 requires minimum of 2 spring hinges to be used on

labeld doors Warranty: Limited lifetime warranty

Model: Design Hardware SH-4.5X4.5-26D

Design Hardware SH 4.5X4.5 26D Standard Weight Spring Hinge - *Satin Chrome*

ANSI:Meets ANSI A 156.2 - Dimensions and tolerances conform to ANSI - A156.7

Gauge of Metal:.134"

Base Material:Steel (ANSI K81071 F) or Stainless Steel (Grade 304) (ANSI K51071 F) Templating: All hinges have templated hole locations for wood or metal doors

Swaging:1/16" swage standard which provides 1/16" of clearance between leaves

Fasteners:Each box of 3 hinges contains full set of machine and wood screws

Adjustability:Spring tension can be adjusted with hex wrech or tension rod (both are provided) Spring tension is held by tension pin inserted into tension pin hole

Labeled Door Sizes:Maximum labeled door size (As set forth by NFPA80) 4' wide x 8' tall x 1 3/4" thick Meets NFPA80 standard for 3 Hour Fire Doors

NFPA 80 Reference:NFPA 80 requires minimum of 2 spring hinges to be used on

labeld doors Warranty:Limited lifetime warranty

Model:Design Hardware SH-4.5X4.5-26D

Design_Hardware_SH_4.5X4.5
Design Hardware SH-4.5X4.5-26D Spring Hinge - Satin Chrome

Product code: Satin Chrome

In Stock

$32.90

$20.36

Design_Hardware_SH_4.5X4.5
Design Hardware SH-4.5X4.5-26D Spring Hinge - Satin Chrome

Product code: Satin Chrome

In Stock

$32.90

$20.36
