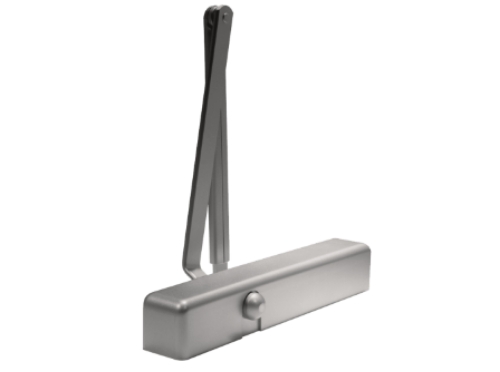

Dormakaba 8616 PH Door Closer w/ Plunger Hold Open Arm

Dormakaba 8616 PH Door Closer with Plunger Hold Open Arm (SNB1)

Provides a hold open function at a selected point within a range from approximately 30 Degree 150 Degree (conditions and installation applications permitting). Ideal for doors frequently placed in and out of hold open. Arm is non handed.

PH Plunger hold open arm complete regular or top jamb mount (0"1-1/2" [0 mm38 mm] reveal).

8616 - Closer is for interior and exterior doors. Meets barrier-free requirements (adjustable size 1 thru 6).

Adjustable backcheck standard. Controls opening motion during abusive or abrupt opening.

Backcheck positioning valve standard. Maintains effective backcheck range on parallel arm applications. Valve is accessible with the closer installed.

Optional delayed action adjustable with a separate independent valve. Delays door closing to allow unobstructed passage through the opening.

Slim plastic cover standard. Full plastic cover optional.

Designed to minimize change in closing speed during severe temperature changes.

The 8600 Series is certified to the requirements of ANSI A156.4 Grade 1.

In addition to all of these superior features, the 8600 Series is backed by DORMAs unprecedented 25-year warranty.

SNB1: SNB1 sex nuts and machine screws for 1-3/4" thick doors included standard.

Model: Dormakaba,8616 PH 689, 8616 PH 695, 8616PH689, 8616PH695
