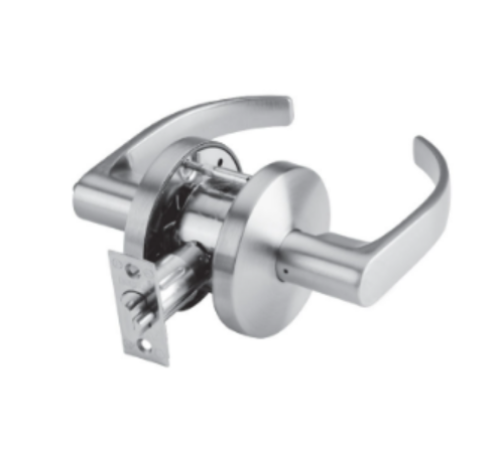

Dormakaba C540 LCC Privacy/Bedroom Lever Set

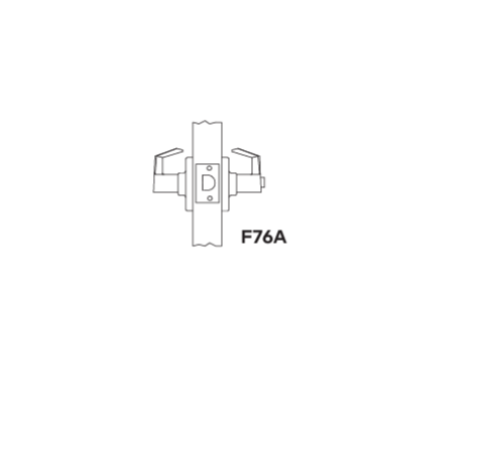

Dormakaba *C540 Privacy/Bedroom Lever- ANSI F76*

Latch bolt operated by trim from either side. Outside trim locked by push button or locking device inside. Outside trim unlocked by emergency release from outside. Outside trim unlocked by inside trim. Outside trim unlocked by closing door. Inside trim always unlocked.

Lever Style:LCC.

Finish:626 - Satin Chrome

ANSI/BHMAA156.2 Series 4000 Grade 2.

Door Ranges:Lever and knob designs fit 1-3/8" - 1-7/8" (35 mm - 48 mm) standard.

Backset: **2-3/4" (70mm).

Strike:ANSI 1-1/4" x 4-7/8" square strike 1-1/8" lip length strike standard.

Non-handed

Model: Dormakaba C540, C540LCC, C540LCC626

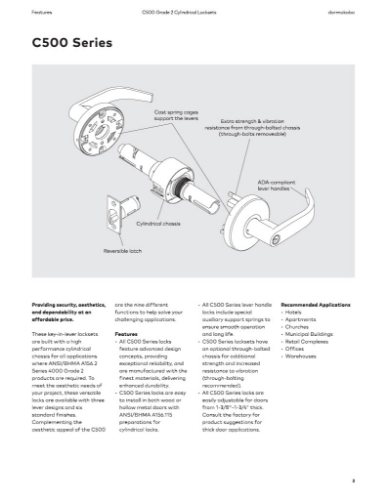

Technical Details  Non-handed for simple installation.  Key-in-lever lock is throughbolted for additional strength and security.  Thru bolts removable for retrofit applications.  Lock chassis constructed of steel, stainless steel and precision castings for superior strength and corrosion resistance.  Stainless steel latch bolt.  Auxiliary deadlocking latch bolt for preventing manipulation when door is closed (all keyed functions).

Listings & Approvals: UL/CUL listed 3 hour fire rated. Locks are listed for A label and lesser class doors.  Meets A117.1 accessibility code and ADA requirements for barrier-free accessibility.
