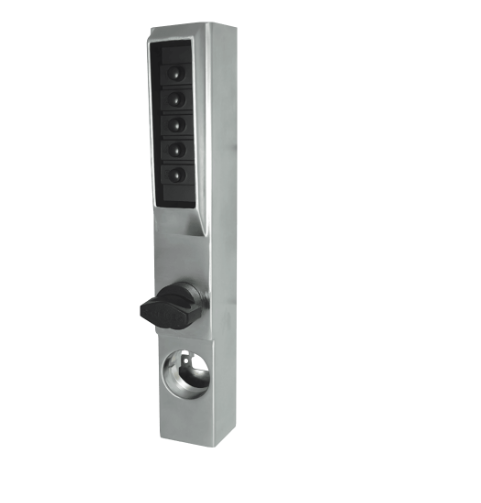

Dormakaba Simplex 3002-26D-41 Narrow Stile Pushbutton Lock With Cylinder Guard - Satin Chrome

Dormakaba *Simplex 3002-26D-41 Narrow Stile Pushbutton Lock with Thumbturn Key Override  Passage  Lockout With Cylinder Guard  - Satin Chrome*

Backset: (Drive Assembly)

Model 3010:Right Hand; Right Hand Reverse—31⁄32" (25 mm)

Model 3020:Left Hand; Left Hand Reverse—31⁄32" (25 mm)

Model 3030:Right Hand; Right Hand Reverse—1⅛" (29 mm) or 1½" (38 mm)

Model 3040:Left Hand; Left Hand Reverse—1⅛" (29 mm) or 1½" (38 mm)

The 3000 lock is designed for use with Adams Rite 4510/4710 Mortise latch (not supplied).

Features:

Access Control:Mechanical pushbutton lock eliminates problems and costs associated with issuing, controlling, and collecting keys and cards. Provides exterior access by combination.**

No Battery:Fully mechanical lock eliminates the material and labor expense of battery replacements**

Locking Device:Adams Rite 4510/4710/4910 mortise latch

Number of Codes:Single access code—one easy-to-manage code for all users**

Programming:Lock is easily programmed via keypad without removing lock from the door

Handing:Non-handed; required drive assembly is factory-handed, not field reversible

Key Override:Accepts Maximum Security (MS) mortise cylinders; can be used to override the lock combination and gain access using a key. Allows facilities to initiate or maintain a master-keyed security system (keyed alike or keyed differently).

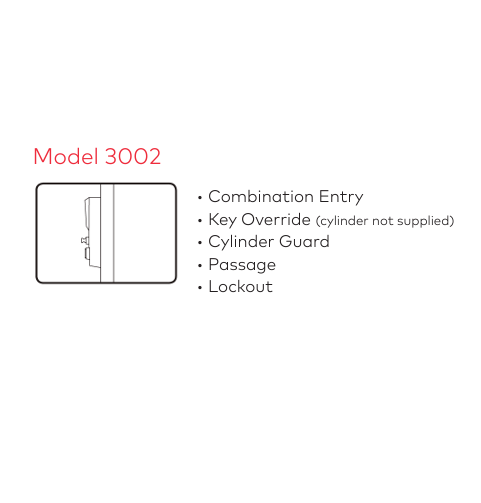

Operation Modes - Pushbutton Access:**

Passage — allows access without using the lock entry code. Feature activated from the outside using cylinder override key.

Lockout —disables the lock so that entry code cannot be used to gain access. Access is permitted using the key override only. This is activated from the outside using the cylinder override key.

Economical:A cost effective access control solution

Mechanical Features:

Construction:All metal cast front housing, force-resistant, clutch-protected fixed thumbturn

Numeric Keypad:Vandal resistant, solid metal pushbuttons

Finishes:Satin Chrome 26D (626); 55 (695) Duranodic

Latch:Purchased separately (Adams Rite)

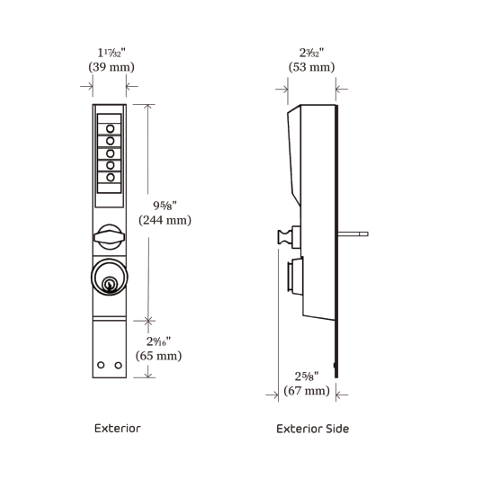

Stile Width:1⅞" (48 mm) minimum, required for mounting

Door Thickness:1¾" (44 mm) maximum

Weight:4 lbs. (1.8 kg)

Strike:Sold separately (Adams Rite or Kaba Ilco Corp.)

Items Supplied Include:Installation instructions, full-scale template, combination change key, and screwdriver

Certification and Testing

Durability:Weather resistant

Warranty:1-year warranty

Model:  Dormakaba Simplex 3002-26D-41,  300226D41, 300-2-26D-41, 3002 26D 41, 300 2 26D 41, 3002-26D41, 300226D-41
