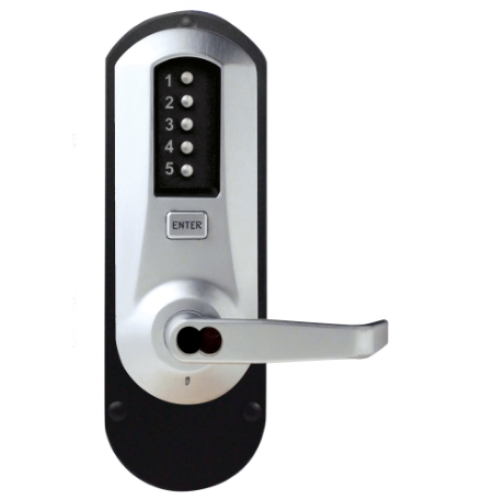

Dormakaba Simplex 5010SWL-26D Exit Trim - Satin Chrome - Schlage IC

Dormakaba *Simplex 5010-S-WL Keyless Exit Device Trim with Key Override*

**Provides exterior access by combination and Key Override, while allowing free egress with exit device (not supplied).

Key Override:Accepts Schlage Large Format IC Core, (Core not included).

Features Include:

Extra heavy-duty:Internal drive parts of cast stainless steel.

Direct-drive design:Clutch-free, decreasing possibility of internal breakage and thesubsequent linkage repairs.

Non-handed:Fits left and right hand doors changes in seconds.

Construction:Extra heavy-duty solid cast housing and solid cast zinclevers, stainless steel cylindrical drive components.

Numeric pushbuttons:Vandal resistant, 5 button, plus Enter button, anodized aluminum, mechanical.

Finishes:Satin Chrome 26D (626), Duranodic 55 (695), Bright Brass-Lifetime 03 (605), Satin Brass 04 (606), Bright Chrome 026 (625),Black With Satin Chrome Accents 676, Dark Bronze With Brass Accents 744

**Latch and Exit Device Not supplied.

Strike supplied with Exit Device

*Combination code:*One code per lock made of any combination of one to five numbers(pressed individually or simultaneously).

Number combinations:Thousands of possible combinations.

Code changing:Accomplish with the lever release combination change tool from the lock exterior.

Emergency access:Mechanical key override.

Fire rating:Three-hour UL/ ULC Fire rating for A label doors.

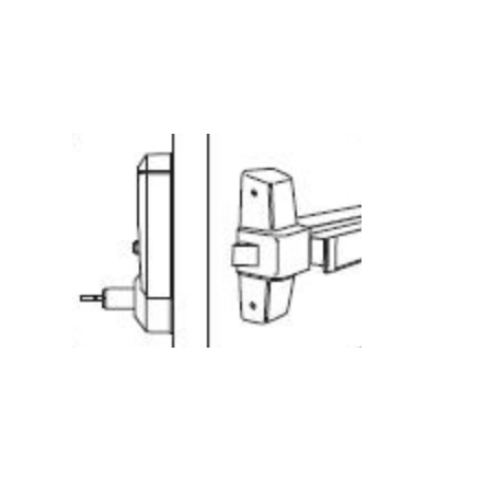

Rim Exit Device:Compatible with most leading brands of exit devices see list below (Exit Device and Mounting hardware not included)

Arrow S1250, Dorex 8500R/8500F, Sargent 8888, Arrow S3883F/S3800, Dorex 9500PR/9500FR, Von Duprin 22/22F Black & Decker (K-2) QED111/112, Dorma 9300/F9300, Von Duprin 98/98F, Cal Royal 9800, Monarch 18R, F18R**, Von Duprin 99/99F, Cal Royal 2200, Precision 21/FL21, Von Duprin XP98/99, Corbin Russwin ED5200/5200A, Sargent 2828, Yale YME2100/2100, Detex 1001 BP1, Sargent 3828, Yale 7100, Detex 10/F10 Series, Sargent 8810E/8800

** requires special K-Hub Adapter

Model: Dormakaba ,kaba, LL1021C, LL1021C03, LL1021CUS3, LL1021C-03-41, 605, Bright Brass
