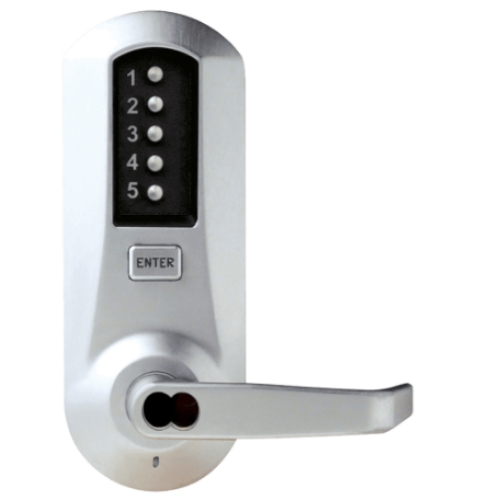

Dormakaba Simplex 5021MWL-26D Pushbutton Lock Satin Chrome - for Medeco IC

Dormakaba *Simplex 5021MWL Cylindrical Keyless Lockwith Key Override, with Key Override, preparedfor"Medeco and Yale" Cores*.

Cylindrical keyless Lock with Lever, Combination Entry and Key Override. Accepts Medeco and Yale Large Format IC Cores, Core not included.

Exterior Combination Change

Features Include:

Extra heavy-duty:Internal drive parts of cast stainless steel.

Direct-drive design:Clutch-free, decreasing possibility of internal breakage and thesubsequent linkage repairs.

Non-handed:Fits left and right hand doors changes in seconds.

Construction:Extra heavy-duty cylindrical lock; solid cast housing and solid cast zinclevers, stainless steel cylindrical drive components.

Numeric pushbuttons:Vandal resistant, 5 button, plus Enter button, anodized aluminum, mechanical.

Finishes:Satin Chrome 26D (626), Duranodic 55 (695), Bright Brass-Lifetime 03 (605), Satin Brass 04 (606), Black With Satin Chrome Accents 676, Dark Bronze With Brass Accents 744

Backset:2-3⁄4 (70 mm)

Latch:1⁄2 (13 mm) throw latch, floating face plate. 3⁄4 (19 mm) throw latch, beveledface plate.

Combination code:One code per lock made of any combination of one to five numbers(pressed individually or simultaneously).

Number combinations:Thousands of possible combinations.

Code changing:Accomplish with the lever release combination change tool from the lock exterior (model 5021, 5041) or from the lock interior (model 5031, 5051).

Emergency access:Mechanical key override.

Fire rating:Three-hour UL/ ULC Fire rating for A label doors.

Operation Modes:

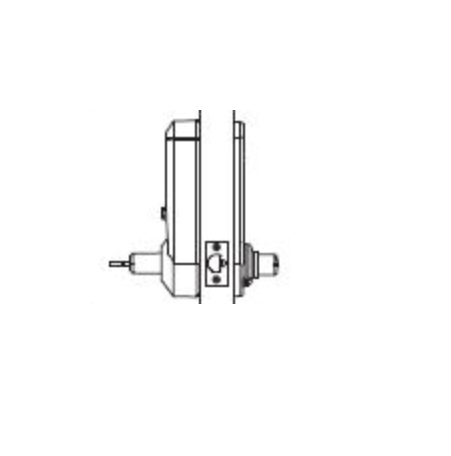

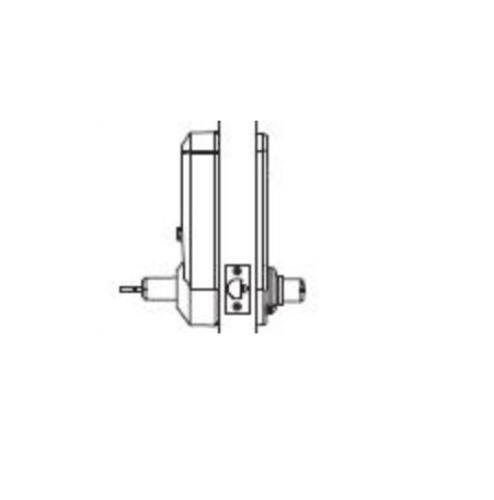

Combination Entry and Key Override (model5021&5031)

Combination Entry, Key Override and Passage (model5041&5051)

Passage option:Allows access without using the lock entry code Feature activated from the inside with a thumbturn or key included with all passage feature models (model5041,5051)

Model: Dormakaba ,kaba, LL1021C, LL1021C03, LL1021CUS3, LL1021C-03-41, 605, Bright Brass
