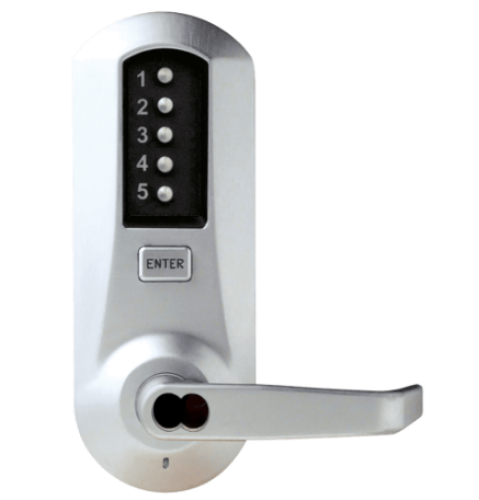

Dormakaba Simplex 5031SWL-26D Pushbutton Lock-Satin Chrome - for Schlage IC

The Dormakaba Simplex 5031SWL-26D is a mechanical pushbutton cylindrical lever lock from the Simplex 5000 Series Lever Lock platform, specifically the 5031 Interior Combination Change configuration prepped to accept a Schlage Large Format Interchangeable Core. The full part number breaks down as: 5031 (Simplex 5000 Series, interior combination change with key override), SWL (Schlage IC prep with Wide lever), 26D (US26D Satin Chrome finish), 41 (cylinder/core configuration). Schlage LFIC core is purchased separately so the lock can be pinned to your existing Schlage keyway. Extra heavy-duty cylindrical lock with cast stainless steel internal drive parts and a clutch-free direct-drive design. Non-handed (fits left or right hand doors with handing changes in seconds). Three-hour UL/ULC fire rating on A-label single doors. SKU 5031SWL-26D-41. In stock under Mechanical Pushbutton Locks with Keypad/Prox Locks.

What "Simplex 5031" Means in the Simplex 5000 Series

The Simplex 5000 family includes four model variants on the same chassis: 5021 (exterior combination change with key override), 5031 (interior combination change with key override), 5041 (exterior combination change with key override and passage option), and 5051 (interior combination change with key override and passage option). The 5031 specifically requires interior combination change, which means the lever release combination change tool can only be operated from the inside of the door. This is the configuration the U.S. Department of Defense requires on military and federal facility openings because it prevents combination changes from the exterior even when the door is open, eliminating a security exposure. If the spec calls for D.O.D.-compliant push button hardware, the 5031 (or 5051 with passage) is the correct model.

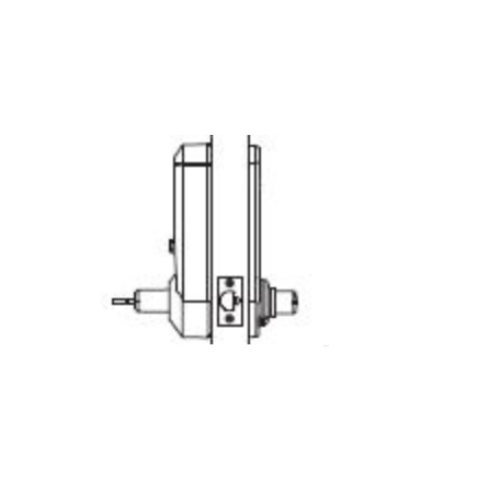

How the Simplex 5031 Operates

Five vandal-resistant mechanical pushbuttons (1 through 5) plus an Enter button. Anodized aluminum buttons. One combination code per lock made of any combination of one to five numbers, pressed individually or simultaneously, producing thousands of possible combinations. Press the code, turn the outside lever, latch retracts. Inside lever always retracts the latch (free egress). Mechanical key override on the outside is provided by the Schlage Large Format IC core (sold separately) for emergency access. No batteries, no wiring, no electronics. The combination change is performed from the interior using the lever release tool included with the lock.

Specifications

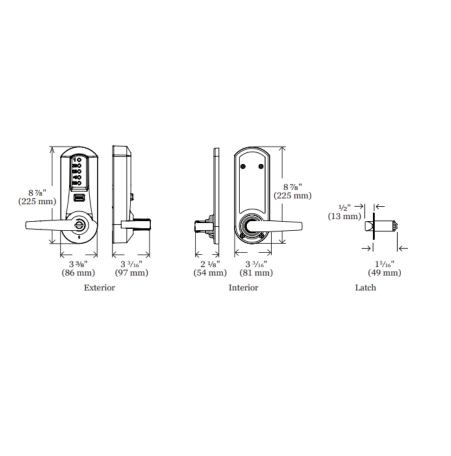

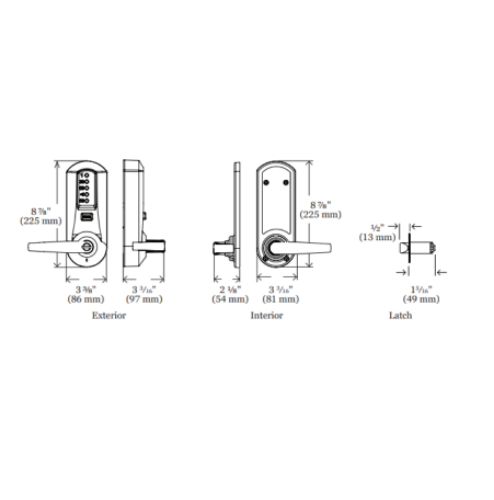

Construction: extra heavy-duty cylindrical lock with solid cast housing, solid cast zinc levers, stainless steel cylindrical drive components, cast stainless steel internal drive parts. Backset: 2-3/4" (70 mm). Latch: 1/2" (13 mm) throw with floating face plate, or 3/4" (19 mm) throw with beveled faceplate. Door thickness: 1-3/4" standard. Handing: non-handed, field reversible. Operation modes: combination entry plus key override. Code: one combination of one to five buttons, thousands of possible combinations. Combination change: interior, using lever release combination change tool from inside (D.O.D. requirement). Cylinder: prepped for Schlage Large Format Interchangeable Core (LFIC); core sold separately. Compliance: three-hour UL and ULC fire rating on A-label single doors. Warranty: three-year manufacturer warranty.

Where to Specify the Simplex 5031

Federal government office buildings, military facility back-of-house and admin doors, courthouse non-public doors, IT and server rooms in any commercial environment, multi-tenant building common doors, healthcare facility staff-only zones, school administrative offices, dormitory and university back-of-house doors, mechanical and electrical rooms, supply rooms, and any commercial opening that needs keyless code-based entry plus mechanical key override without batteries, wiring, or access control infrastructure. The Schlage IC prep is the right choice for any facility already running a Schlage keying system because the 5031 integrates directly without keyway migration.

Where the Simplex 5031 Sits in the Simplex Catalog

Sister models in the same Simplex 5000 family with the same Schlage IC prep: Dormakaba Simplex 5021SWL-26D for exterior combination change, Dormakaba Simplex 5041XSWL-26D for exterior combination change with passage option, and Dormakaba Simplex 5051XSWL-26D for interior combination change with passage option. For Kaba proprietary keyway instead of Schlage IC, see Dormakaba Simplex 5031XKWL-26D. Same finish in Bright Brass: Dormakaba Simplex 5031SWL-03. Same finish in Satin Brass: Dormakaba Simplex 5031SWL-04. For other Simplex platforms see Simplex L1000 Series Lever Lock, Simplex 1000 Series Knob Lock, and Simplex 8100 Mortise Lock.
