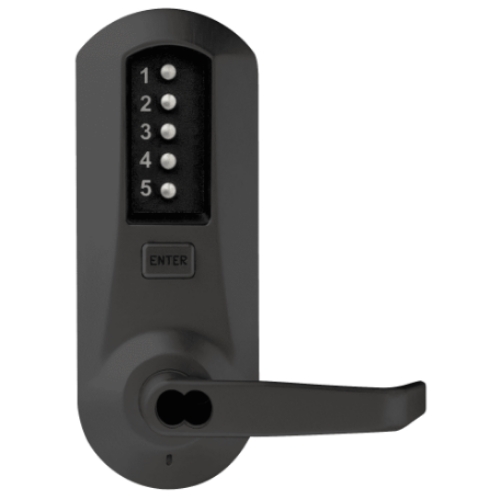

Dormakaba Simplex 5041CWL-744 Lever Lock - Dark Bronze - for Corbin IC Core

Dormakaba Simplex 5041CWL-744 Lever Lock - Dark Bronze - for Corbin IC Core

Product Details

Dormakaba *Simplex 5041-C-WL Cylindrical Keyless Lock,with Key Override,preparedfor"Corbin Russwin" Cores.*

Cylindrical keyless Lock with Lever, Combination Entry with Passage option and Key Override. Accepts Corbin Russwin Large Format IC Cores, Core not included.**

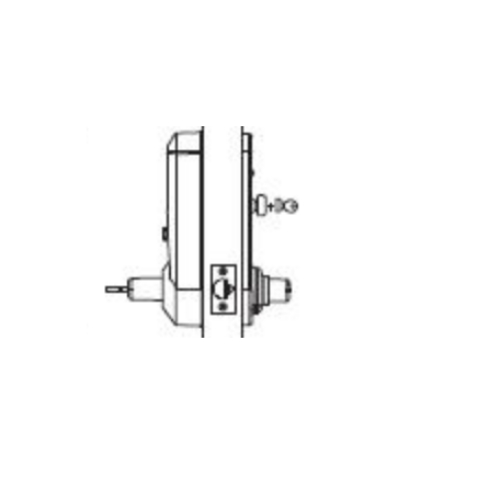

Passage option:Allows access without using the lock entry code Feature activated from the inside with a thumbturn or key (included with all passage feature models)

Exterior Combination Change

Let's See What We Have Here

Features Include:

Extra heavy-duty:Internal drive parts of cast stainless steel.

Direct-drive design:Clutch-free, decreasing possibility of internal breakage and thesubsequent linkage repairs.

Non-handed:Fits left and right hand doors changes in seconds.

Construction:Extra heavy-duty cylindrical lock; solid cast housing and solid cast zinclevers, stainless steel cylindrical drive components.

Numeric pushbuttons:Vandal resistant, 5 button, plus Enter button, anodized aluminum, mechanical.

Finishes:Satin Chrome 26D (626), Duranodic 55 (695), Bright Brass-Lifetime 03 (605), Satin Brass 04 (606), Black With Satin Chrome Accents 676, Dark Bronze With Brass Accents 744

Backset:2-3⁄4 (70 mm)

Latch:1⁄2 (13 mm) throw latch, floating face plate. 3⁄4 (19 mm) throw latch, beveledface plate.

Combination code:One code per lock made of any combination of one to five numbers(pressed individually or simultaneously).

Number combinations:Thousands of possible combinations.

Code changing:Accomplish with the lever release combination change tool from the lock exterior (model 5021, 5041) or from the lock interior (model 5031, 5051).

Emergency access:Mechanical key override.

Fire rating:Three-hour UL/ ULC Fire rating for A label doors.

Operation Modes:

Combination Entry and Key Override (model5021&5031)

Combination Entry, Key Override and Passage (model5041&5051)

Model: Dormakaba ,kaba, LL1021C, LL1021C03, LL1021CUS3, LL1021C-03-41, 605, Bright Brass

Dormakaba Simplex 5041CWL-744 Lever Lock - Dark Bronze - for Corbin IC Core

Name: Dormakaba Simplex 5041CWL-744 Lever Lock - Dark Bronze - for Corbin IC Core
SKU: 5041CWL-744-41
Price: 635.63 USD
Availability: InStock

SKU: 5041CWL-744-41

In Stock

Chat

$635.62

About this item

The latest addition to the line of mechanical pushbutton locks, the Simplex 5000 offers unparalleled strength, convenience, and flexibility. This extra heavy-duty lock contains internal drive parts of cast stainless steel and a clutch-free direct-drive design. Buttons are easy to press, and its sleek design will fit nicely with any existing door. Designed for simplest installation possible, non-handed design fits both left and right hand doors - handing changes in seconds. Kaba backs the Simplex 5000 with a three-year warranty.

Resources

Dormakaba *Simplex 5041-C-WL Cylindrical Keyless Lock,with Key Override,preparedfor"Corbin Russwin" Cores.*

Cylindrical keyless Lock with Lever, Combination Entry with Passage option and Key Override. Accepts Corbin Russwin Large Format IC Cores, Core not included.**

Passage option:Allows access without using the lock entry code Feature activated from the inside with a thumbturn or key (included with all passage feature models)

Exterior Combination Change

Let's See What We Have Here

Features Include:

Extra heavy-duty:Internal drive parts of cast stainless steel.

Direct-drive design:Clutch-free, decreasing possibility of internal breakage and thesubsequent linkage repairs.

Non-handed:Fits left and right hand doors changes in seconds.

Construction:Extra heavy-duty cylindrical lock; solid cast housing and solid cast zinclevers, stainless steel cylindrical drive components.

Numeric pushbuttons:Vandal resistant, 5 button, plus Enter button, anodized aluminum, mechanical.

Finishes:Satin Chrome 26D (626), Duranodic 55 (695), Bright Brass-Lifetime 03 (605), Satin Brass 04 (606), Black With Satin Chrome Accents 676, Dark Bronze With Brass Accents 744

Backset:2-3⁄4 (70 mm)

Latch:1⁄2 (13 mm) throw latch, floating face plate. 3⁄4 (19 mm) throw latch, beveledface plate.

Combination code:One code per lock made of any combination of one to five numbers(pressed individually or simultaneously).

Number combinations:Thousands of possible combinations.

Code changing:Accomplish with the lever release combination change tool from the lock exterior (model 5021, 5041) or from the lock interior (model 5031, 5051).

Emergency access:Mechanical key override.

Fire rating:Three-hour UL/ ULC Fire rating for A label doors.

Operation Modes:

Combination Entry and Key Override (model5021&5031)

Combination Entry, Key Override and Passage (model5041&5051)

Model: Dormakaba ,kaba, LL1021C, LL1021C03, LL1021CUS3, LL1021C-03-41, 605, Bright Brass

Dormakaba Simplex 5041CWL-744 Lever Lock - Dark Bronze - for Corbin IC Core

Product code: 5041CWL-744-41

In Stock

$635.62

Dormakaba Simplex 5041CWL-744 Lever Lock - Dark Bronze - for Corbin IC Core

Product code: 5041CWL-744-41

In Stock

$635.62

Dormakaba Simplex 5041CWL-744 Lever Lock - Dark Bronze - for Corbin IC Core

SKU: 5041CWL-744-41
