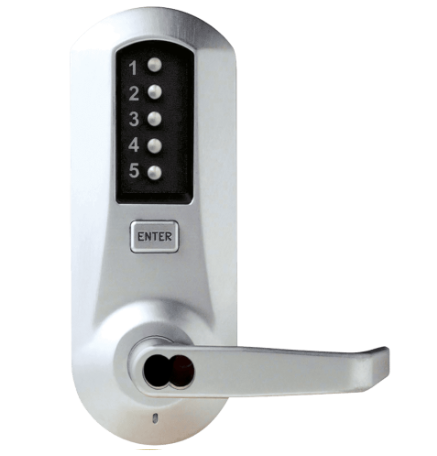

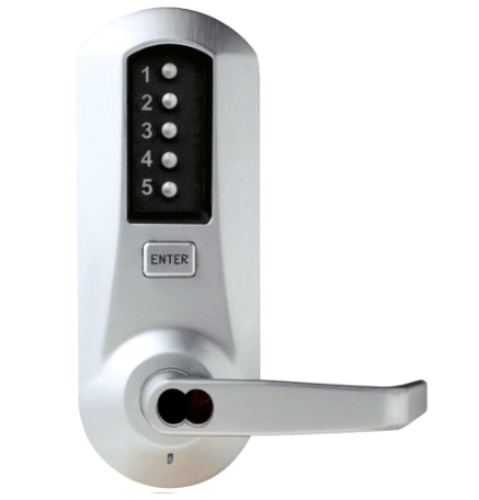

Dormakaba Simplex 5066 BWL-26D Pushbutton Mortise Lock Satin Chrome - Best IC Core

Dormakaba *Simplex 5066 BWL-26D Pushbutton Mortise Lock Satin Chrome For Best IC Core*

No Battery:Fully mechanical lock eliminates the material and labor expense of battery replacements

Number of Codes:Single access code—one easy-to-manage code for all users

Programming:Lock is easily programmed via keypad without removing lock from the door

Handing:Non-handed, pre-assembled for left-hand door installations; easily changed in the field

Direct Drive Design:Clutch free design minimizes friction and wear

Construction:Extra heavy-duty, solid cast housings, solid cast; ADA-compliant levers, and wear tested for extensive use in indoor and outdoor applications

Numeric Keypad:Vandal resistant, solid metal pushbuttons

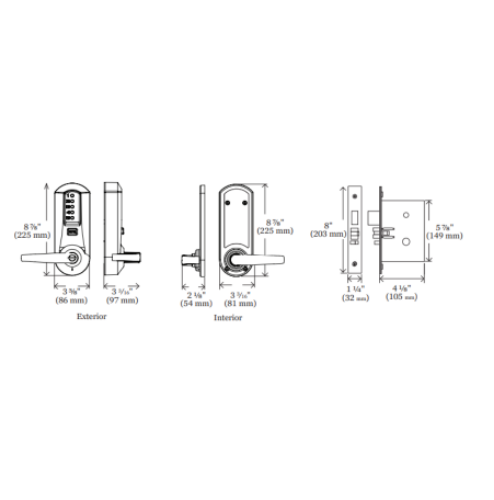

Backset:Mortise: 2¾" (70 mm) backset

Latch:½" (13 mm) latch, ¾"

Door Thickness:Mortise: 1¾" (44 mm) to 2¼" (57 mm). Pre-assembled to accommodate doors 1¾" (44 mm) to 2⅛" (54 mm).

Warranty:3-year warranty

Model: Dormakaba ,kaba, LL1021C, LL1021C03, LL1021CUS3, LL1021C-03-41, 605, Bright Brass

Certification and Testing

Accessibility Standard:Americans with Disabilities Act (ADA); ADA-compliant levers

Durability:ANSI/BHMA Grade 1 Certified (A156.2, 156.13); D.O.D. Compliant 5220.22M for supplemental access control; weather resistant, wear tested for extensive use in indoor and outdoor applications

Fire Rating:3-hour UL/ULC fire rating for "A" label doors and installed with an existing fire-rated exit device (where applicable)
