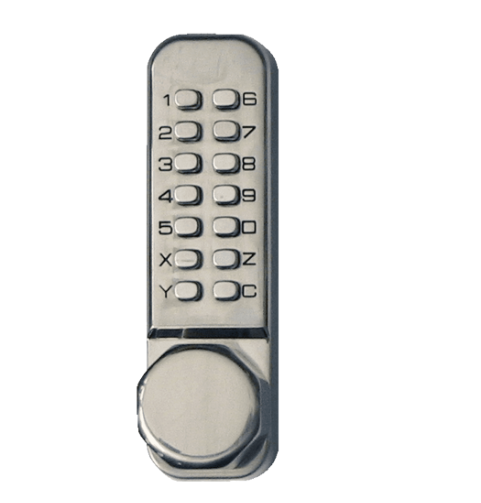

Dormakaba Simplex LD452-35-32D-41 Pushbutton Knob Lock - 2 3/4 Backset

Dormakaba *Simplex LD452-35-32D-41 Light Duty Pushbutton Knob Lock  2 3/4 Backset- Satin Stainless*

Kaba Simplex LD452 is for2-3/4 Backset,  ( for 2-3/8" Backsetsee LD451.See Below)

Features:

Access Control:Mechanical pushbutton lock eliminates problems and costs associated with issuing, controlling, and collecting keys and cards

No Battery:Fully mechanical lock eliminates the material and labor expense of battery replacements

Locking Device:Tubular latch

Number of Codes:Single access code (non-sequential)—one easy-to-manage code for all users

Programming:Lock is easily programmed via keypad once removed from door

Operation Modes:Pushbutton Access Latch Holdback (easily removed in field)

Economical:A cost effective access control solution

Key Override:Not available

Mechanical Features:

Construction:Solid cast housings; cast knobs and levers

Numeric Keypad:Vandal resistant, metal pushbuttons

Handing:Non-handed, pre-assembled for right-hand door installations (easily changed in field)

Backset:2¾" (70 mm) backset, 2⅜" (66 mm) backset

Latch:½" (51 mm) latch

Installation:

Door Preparation:Easily installs on wood or metal doors. Requires four holes (two for through bolts, one for latch spindle, and one for latch support post).

Door Thickness:1⅜ " (35 mm) to 2½ " (64 mm)

Supplies Included:Lock assembly, installation manual, template, and required hardware; as well as two 2½" (64 mm) x 8" (203 mm) cover plates and two 2" (51 mm) gaskets

Warranty:1-year warranty

Model: Dormakaba Simplex LD451-35-32D-41, LD451 35 32D 41, LD-45-1-3-5-32D-41, LD4513532D41, LD451, LD 451-35-32D-41
