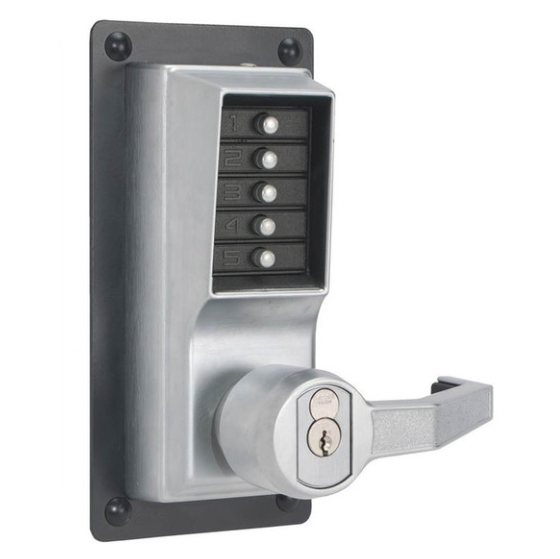

Dormakaba Simplex LRP1020B-26D Pushbutton Exit Trim - Key Override Satin Chrome -RHR

Dormakaba Simplex LRP1020B-26D Pushbutton Exit Trim - Key Override Satin Chrome -RHR

for Right Hand Reverse Doors - RHR [**(Help Me)

**](https://www.americanlocksets.com/optionsjs/ajaxoptions.php?productsid=6713&optionsid=10)

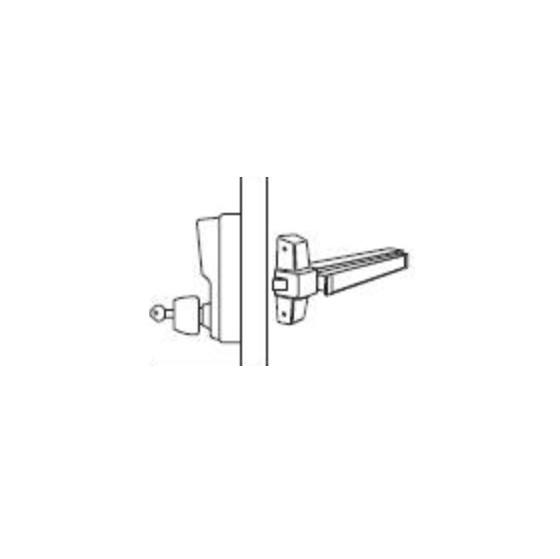

Provides exterior access by combination and Key Override, while allowing free egress with exit device (not supplied).

Key Override:"Best and Compatibles" (Best, Arrow & Falcon Small Format IC Cores)

Features Include:

Heavy-duty cast front housing; heavy-duty mounting plate; fixed ADA compliant levers

Vandal resistant, solid metal pushbuttons

Factory-handed; not field reversible

Standard Finishes: Satin Chrome 26D (626), Antique Brass 05 (609)

Optional Finishes: Bright Brass 03 (605), Bright Chrome 026 (625)

Latch and Exit Device Not supplied.

Strike supplied with Exit Device

Exit Device Hub Rotation:Up to 60 Degree, counterclockwise for left hand and clockwise forright hand.

Rim Exit Device:Compatible with most leading brands of exit devices see list below (Exit Device and Mounting hardware not included)

Von Duprin Exit Only (EO) or Exit Only Fire (EOF) 22, 88 NL, 98, 99, 987, 9957

Dorma 9100, 9300, 9400

Detex Advantex Series 10, 20, 21 40, 50, 51

Monarch XX-R, FXX-R, 18-R, F-18-R, XX-V, F-XX-V, 18-V, F-18-V*

(* Requires special khub adapter)

Model: Dormakaba, Ilco, Access, Simplex, LP1020. LP1020B,LRP1020B26D, LRP1020BUS26D, LRP1020B-26D-41, 626,Satin Chrome
