Dormakaba TS9315-ST Door Closer - Spring Stop Track (Pull)

Dormakaba TS9315-ST Door Closer - Spring Stop Track (Pull)

Technical Details.

Available as TS9315 closers for interior and exterior barrier-free requirements (adjustable size 1–5). Available as TS9356 closers for greater closing force for exceptionally wide, tall, or heavy doors (size 5–6 +50% adjustment). Adjustable backcheck prevents uncontrolled opening of door. Adjustable delayed action extends the closing cycle to allow unobstructed passage through opening. SN3 sex nuts supplied standard for 1-3/4" thick door.

Certification:

The DORMA TS9315/ TS9356 Series are listed by UL and CUL under their continuing reinspection programs. The TS9315/ TS9356 Series are certified to the requirements of ANSI/ BHMA A156.4 Grade 1. The TS93 is UL 10C listed for positive pressure. The TS9315 meets the requirements of ANSI/ BHMA A117.1 and ADA for barrier-free accessibility. California State Fire Marshall Approved (CSFM)

Model: Dormakaba TS9315,TS9315-ST,TS9315-ST 689,

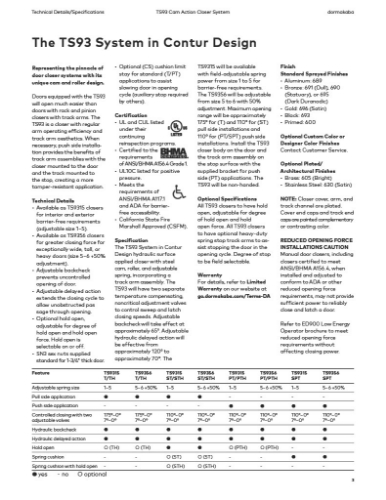

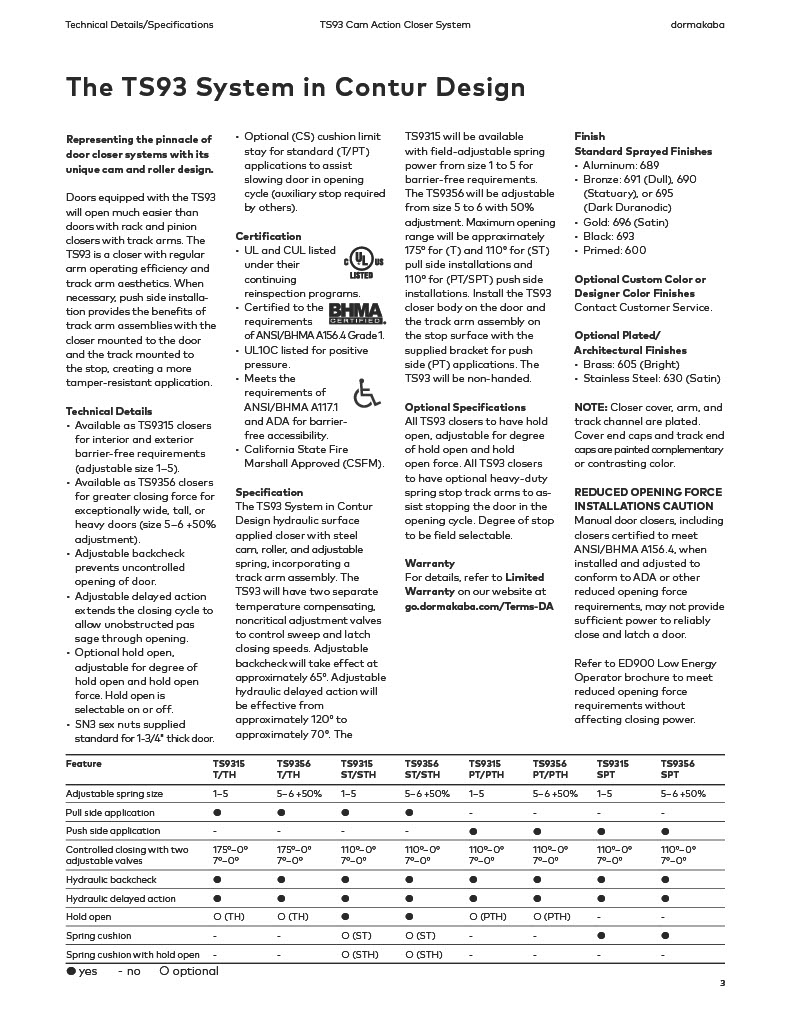

The TS93 System in Contur Design hydraulic surface applied closer with steel cam, roller, and adjustable spring, incorporating a track arm assembly. The TS93 will have two separate temperature compensating, noncritical adjustment valves to control sweep and latch closing speeds. Adjustable backcheck will take effect at approximately 65  Degree. Adjustable hydraulic delayed action will be effective from approximately 120 Degree to approximately 70 Degree. The TS9315 will be available with fieldadjustable spring power from size 1 to 5 for barrier-free requirements. The TS9356 will be adjustable from size 5 to 6 with 50% adjustment. Maximum opening range will be approximately 175 Degree for (T) and 110 Degree for (ST) pull side installations and 110 Degree for (PT/ SPT) push side installations. Install the TS93 closer body on the door and the track arm assembly on the stop surface with the supplied bracket for push side (PT) applications. The TS93 will be non-handed.
