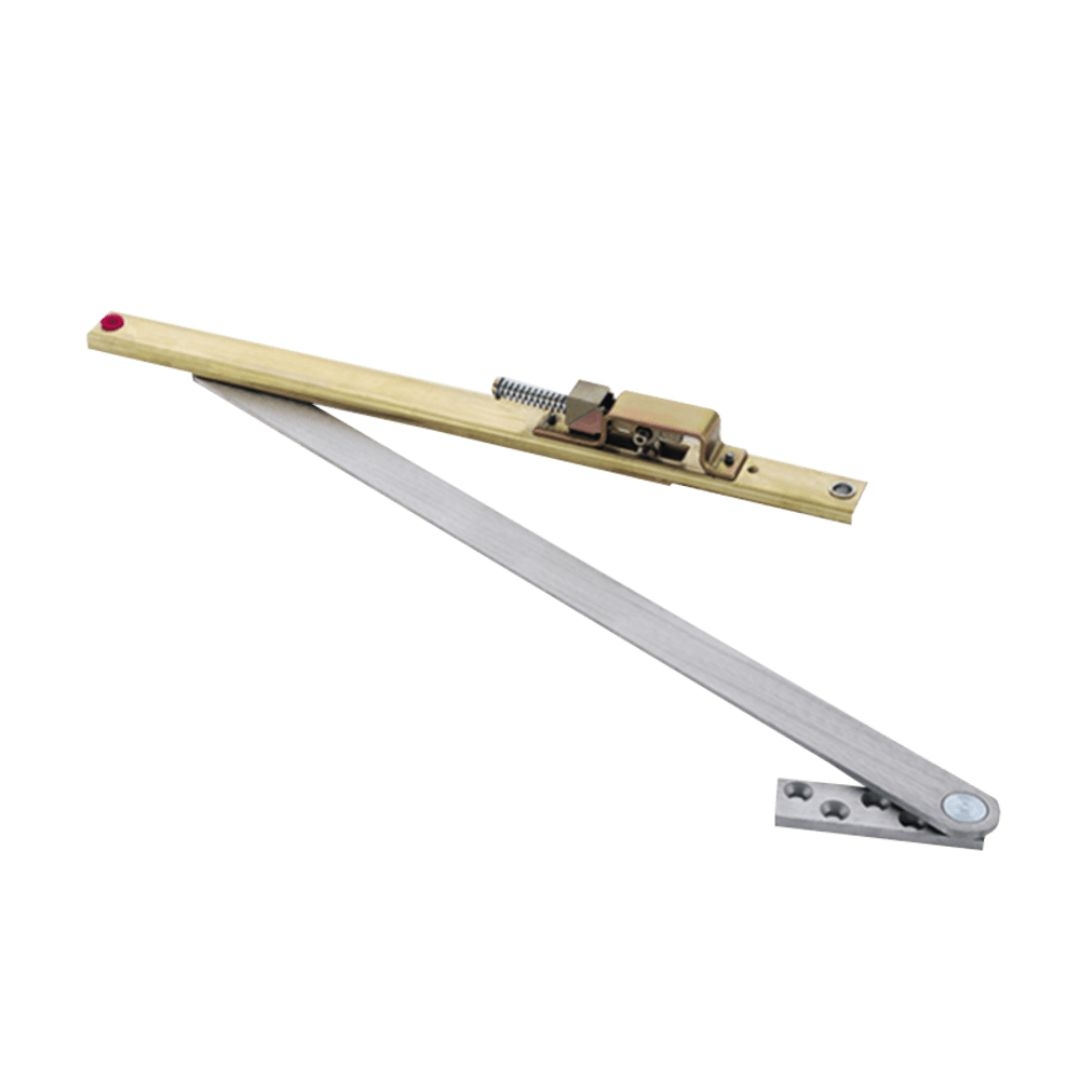

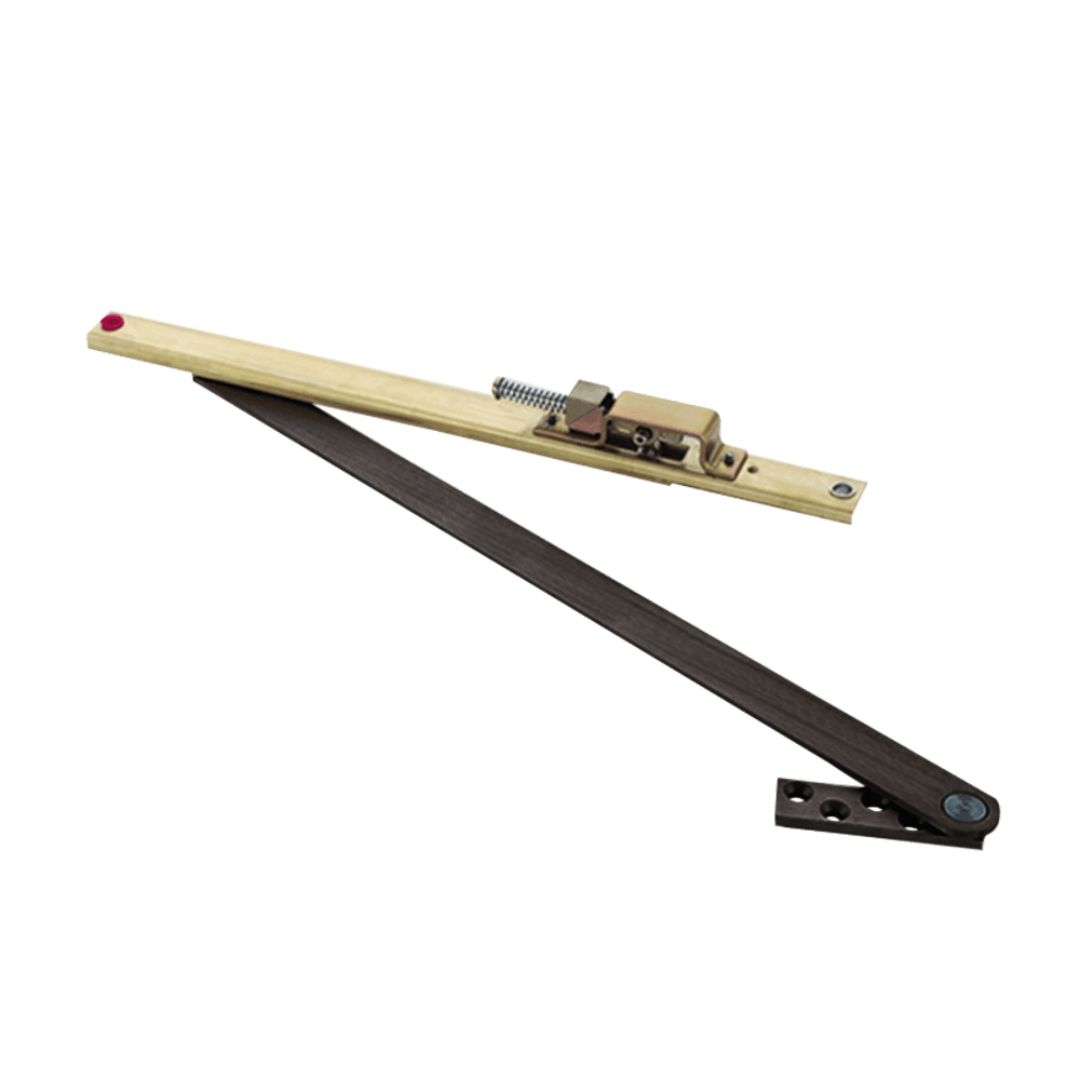

Glynn Johnson 102H Concealed Overhead Door Stop / Holder 23-1/16" - 27" Door

Glynn Johnson 102H Concealed Overhead Door Stop / Holder 23-1/16" - 27" Door

The Hold-Open function should be used where it is desired to hold a door open at a predetermined position for short or long periods of time, permitting an unobstructed traffic flow through the opening.

These models are both selective and adjustable, featuring the most reliable Hold-Open mechanism available.

They feature a control knob which protrudes from the face of the door and turns the Hold-Open function on or off. Set in the inactive position, the unit acts as a stop and shock absorber. The tension on the Hold-Open mechanism can be adjusted using an allen wrench to offset air currents or other exterior conditions.

The Hold-Open tension adjustment is located in the bottom of the track in the top of the door.

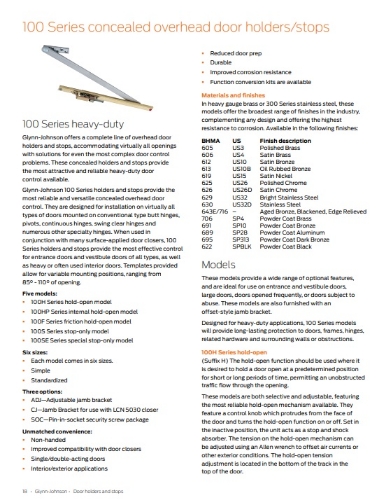

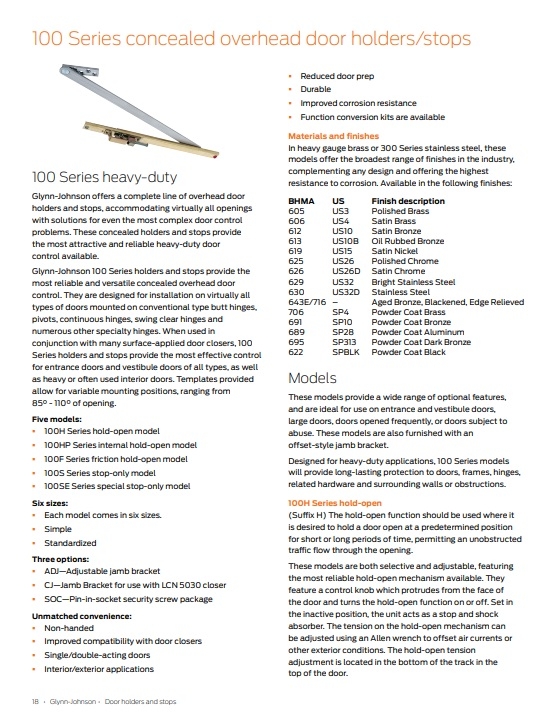

Glynn-Johnson 100 series holders and stopsprovide the most reliable and versatile concealed overhead door control. They are designed for installation on virtually all types of doors mounted on conventional type butt hinges, pivots, continuous hinges, swing clear hinges and numerous other specialty hinges.

When used in conjunction with many surface-applied door closers, 100 series holders and stops provide the most effective control for entrance doors and vestibule doors of all types, as well as heavy or often used interior doors.

Templates provided allow for variable mounting positions, ranging from 85 Degree - 110 Degree of opening

Non-handed -Improved Compatibility with Door Closers - Single/Double-Acting Doors - Interior/Exterior Applications - Reduced Door Prep  - Improved Corrosion Resistance

Materials and Finishes:

In Heavy Gauge Brass or 300 Series Stainless Steel, these models offer the broadest range of finishes in the industry, complementing any design and offering the highest resistance to corrosion

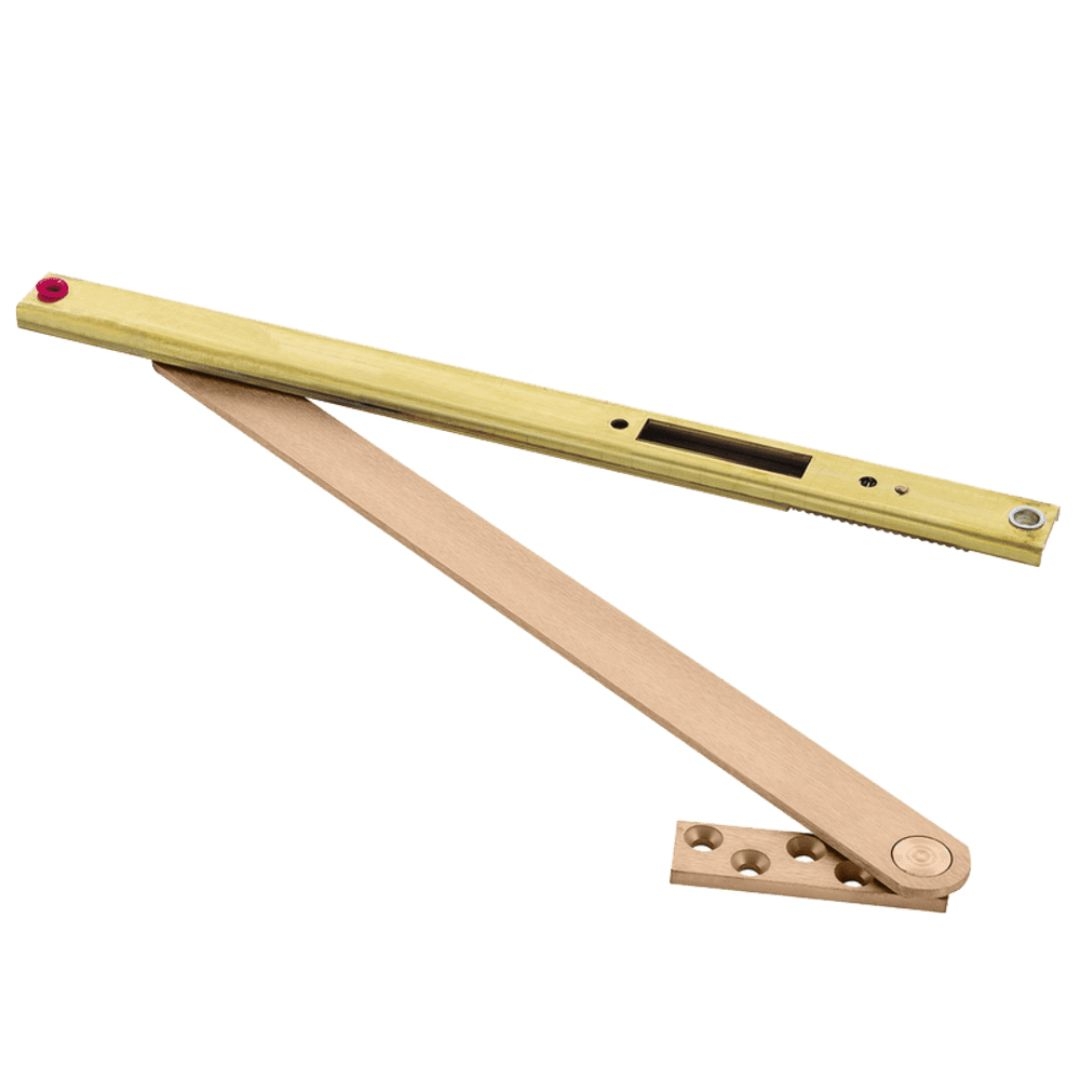

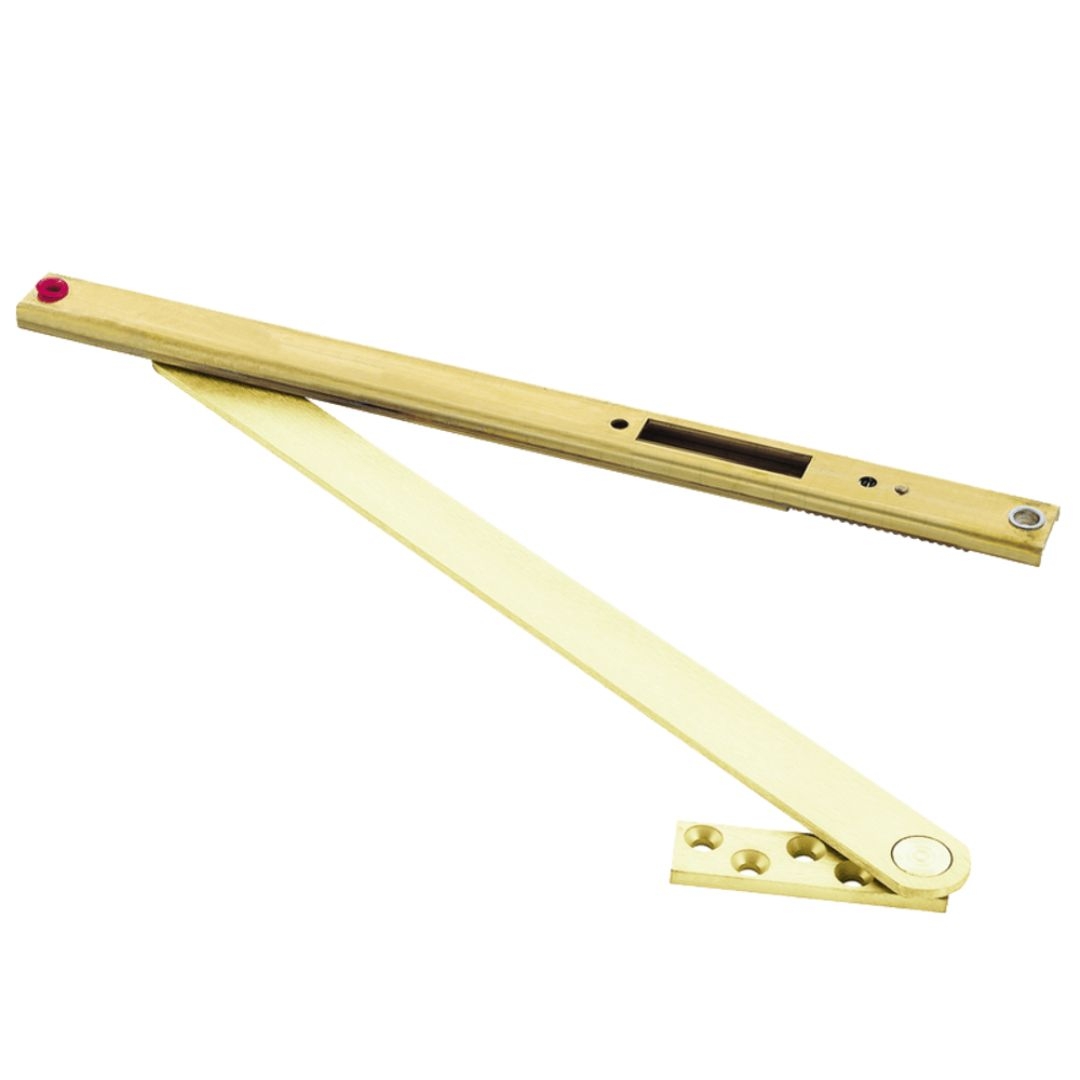

Available in the following finishes: US3 Polished Brass, US4 Satin Brass, US10 Satin Bronze, US10B Oil Rubbed Bronze, US32 Polished Stainless Steel, US32D Satin Stainless Steel, SP4 Powder Coat Brass, SP10 Powder Coat Bronze, SP28 Powder Coat Aluminum, SP313 Powder Coat Dark Bronze, SPBLK Powder Coat Black

Models:Glynn Johnson, 100, 102, 102H, 102H32D, 102HUS32D, 102HUS32, 102HUS3, 102HUS10B, 102HSP28, 102HSP10, 102HSP4, 102HSP313

UL Classification The 100 series Stop-Only models are classified by Underwriters Laboratories (UL) as Miscellaneous Fire Door Accessories. This classification applies to use on either Hollow Metal Fire Doors orWood Fire Doors. Where Wood Door manufacturer’s listing allows for the cutout required for installation, concealed overhead stops may be used on those wood fire doors. These units may be used on doors of any rating. As a reminder, the Miscellaneous Fire Door Accessories (GVUX) section is defined by UL as: “Miscellaneous fire door accessories are intended in the individual Listings. The accessories have been investigated to determine that when installed in accordance with the manufacturer’s instructions, the accessories do not adversely affect the fire rating of the fire door and/or fire door frames."
