Glynn Johnson 411S Concealed Overhead Door Stop 18-1/16" - 23" Door

Glynn Johnson 411S Concealed Overhead Door Stop 18-1/16" - 23" Door (Stop Only)

Glynn-Johnson 410 series holders and stops are designed for medium- to light-duty applications. They’re ideal for openings that are subject to normal activity, providing protection for the door, frame, hinges and surrounding walls or obstructions.

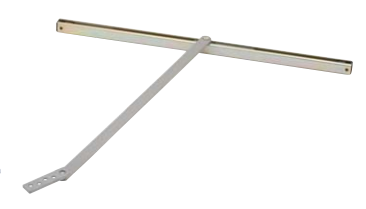

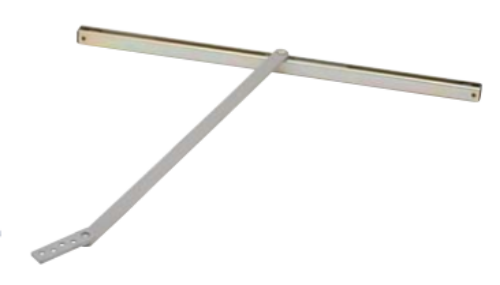

All models incorporate the popular channel/slide-arm design and offset jamb brackets. This improved design allows for simple field modification of functions, should user requirements change.

When the Hold-Open function is not a requirement,the Stop-Only function provides an effective method of door control. The Stop-Only model may be used on fire doors.

Glynn-Johnson 410 seriesholders and stops offer effective door control and a low-profile design.

Each model is constructed so that the channel is encased in the  oor and the jamb bracket is mortised in the frame. When the door is open, the arm and jamb bracket are visible. Conversely, when the door is in the closed position, the entire holder is completely concealed. These versatile models can be used with most surface-applied door closers.

The provided templates allow for variable mounting positions, ranging from 85 Degree to 110 Degree of opening. These templates are designed for installation in almost all types of doors, including doors with conventional butt-type hinges or specialty hinges.

Non-Handed - Improved Compatibility with Door Closers - Single/Double-Acting Doors - Interior Applications - Improved Corrosion Resistance

Materials and Finishes:

All models are available in 300 series Stainless Steel, Brass and Steel substrates. The broadest range of finishes in the industry is provided to complement any design.

Available in the following finishes: US3 Polished Brass, US4 Satin Brass, US10 Satin Bronze, US10B Oil Rubbed Bronze, US32 Polished Stainless Steel, US32D Satin Stainless Steel, SP4 Powder Coat Brass, SP10 Powder Coat Bronze, SP28 Powder Coat Aluminum, SP313 Powder Coat Dark Bronze, SPBLK Powder Coat Black

Models:Glynn Johnson, 410, 411, 411S, 411S32D, 411SUS32D, 411SUS32, 411SUS3, 411SUS4, 1411SUS652, 411SUS10, 02SUS10B, 411SSP28, 411SSP10, 411SSP4, 411SSP313

UL Classification The 410 series Stop-Only models are classified by Underwriters Laboratories (UL) as Miscellaneous Fire Door Accessories. This classification applies to use on either Hollow Metal Fire Doors or Wood Fire Doors. Where Wood Door manufacturer’s listing allows for the cutout required for installation, concealed overhead stops may be used on those wood fire doors. These units may be used on Doors of any rating. As a reminder, the Miscellaneous Fire Door Accessories (GVUX) section is defined by UL as: “Miscellaneous fire door accessories are intended in the individual Listings. The accessories have been investigated to determine that when installed in accordance with the manufacturer’s instructions, the accessories do not adversely affect the fire rating of the fire door and/or fire door frames."
