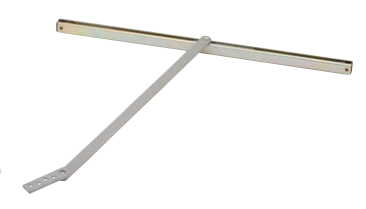

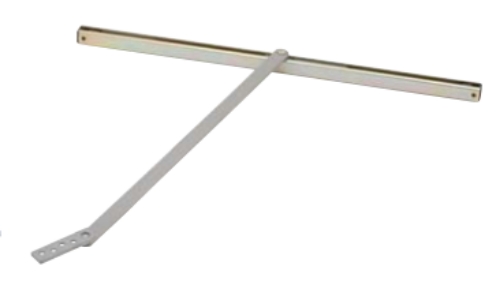

Glynn Johnson 413H Concealed Overhead Door Stop / Holder 27-1/16" - 33" Door

Glynn Johnson 413H Concealed Overhead Door Stop / Holder 27-1/16" - 33" Door

Glynn-Johnson 410 series holders and stops are designed for medium- to light-duty applications. They’re ideal for openings that are subject to normal activity, providing protection for the door, frame, hinges and surrounding walls or obstructions.

All models incorporate the popular channel/slide-arm design and offset jamb brackets. This improved design allows for simple field modification of functions, should user requirements change.

Hold-Openmodels provide a convenient method of holding the door open at a predetermined position for short or long periods of time, permitting an unobstructed traffic flow.

The Hold-Open tension can be adjusted using an allen wrench through the end of the slider located in the channel mounted in the top of the door.

These models feature a rugged, automatic Hold-Open mechanism activated when the door is opened to a preset angle. Each model meets the 250,000 test cycles required for Grade 1 classification.

The Hold-Open feature is not selectable, so the door is always held open

Glynn-Johnson 410 seriesholders and stops offer effective door control and a low-profile design.

Each model is constructed so that the channel is encased in the  oor and the jamb bracket is mortised in the frame. When the door is open, the arm and jamb bracket are visible. Conversely, when the door is in the closed position, the entire holder is completely concealed. These versatile models can be used with most surface-applied door closers.

The provided templates allow for variable mounting positions, ranging from 85  Degree to 110 Degree of opening. These templates are designed for installation in almost all types of doors, including doors with conventional butt-type hinges or specialty hinges.

Non-Handed - Improved Compatibility with Door Closers - Single/Double-Acting Doors - Interior Applications - Improved Corrosion Resistance

Materials and Finishes:

All models are available in 300 series Stainless Steel, Brass and Steel substrates. The broadest range of finishes in the industry is provided to complement any design.

Available in the following finishes: US3 Polished Brass, US4 Satin Brass, US10 Satin Bronze, US10B Oil Rubbed Bronze, US32 Polished Stainless Steel, US32D Satin Stainless Steel, SP4 Powder Coat Brass, SP10 Powder Coat Bronze, SP28 Powder Coat Aluminum, SP313 Powder Coat Dark Bronze, SPBLK Powder Coat Black

Models:Glynn Johnson, 410, 413, 413H, 413H32D, 413HUS32D, 413HUS32, 413HUS3, 413HUS4, 1413HUS652, 413HUS10, 02SUS10B, 413HSP28, 413HSP10, 413HSP4, 413HSP313

UL Classification The 410 series Stop-Only models are classified by Underwriters Laboratories (UL) as Miscellaneous Fire Door Accessories. This classification applies to use on either Hollow Metal Fire Doors or Wood Fire Doors. Where Wood Door manufacturer’s listing allows for the cutout required for installation, concealed overhead stops may be used on those wood fire doors. These units may be used on Doors of any rating. As a reminder, the Miscellaneous Fire Door Accessories (GVUX) section is defined by UL as: “Miscellaneous fire door accessories are intended in the individual Listings. The accessories have been investigated to determine that when installed in accordance with the manufacturer’s instructions, the accessories do not adversely affect the fire rating of the fire door and/or fire door frames."
