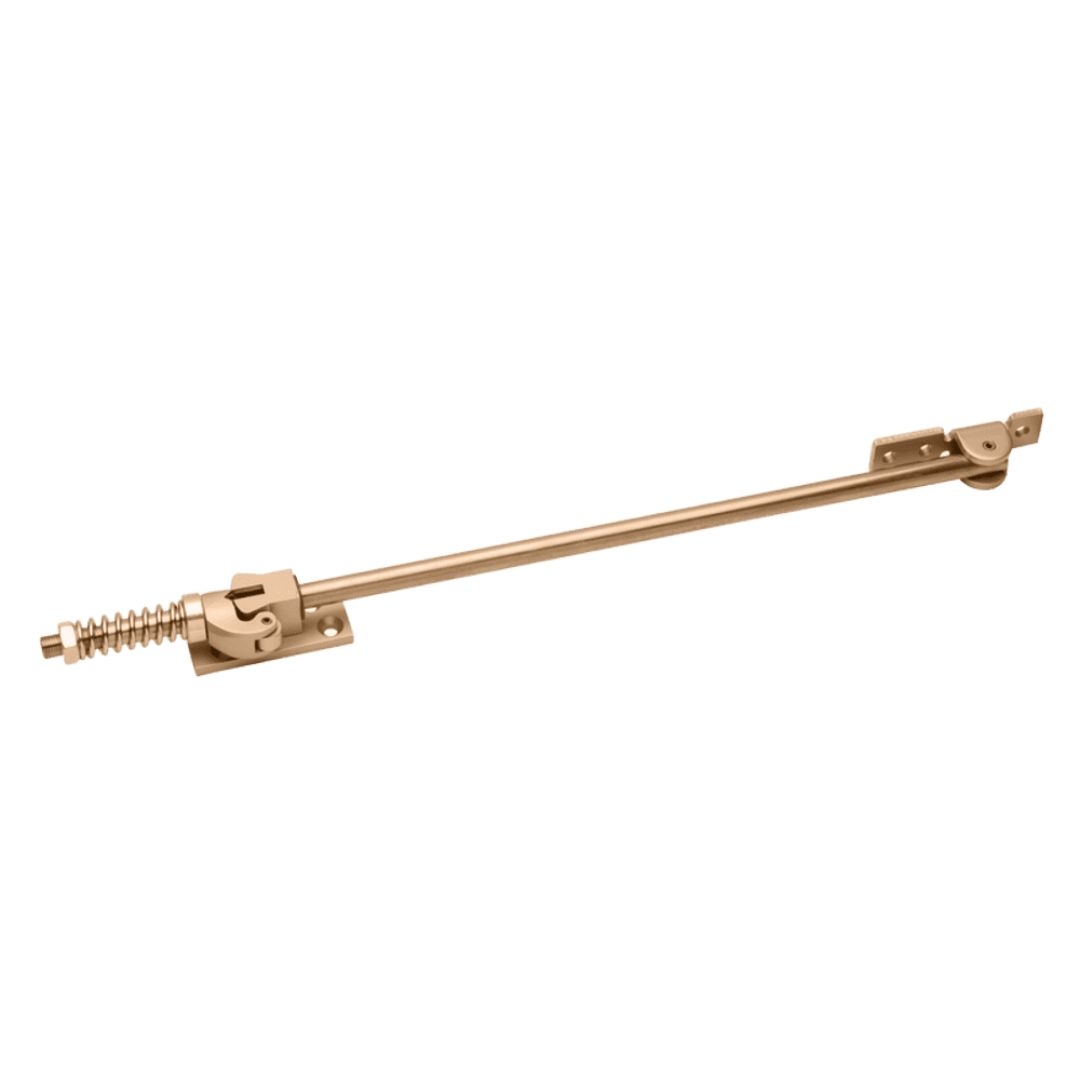

Glynn Johnson 793H Extra Heavy Duty Surface Mount Overhead Door Stop / Holder 27-1/16" - 33" Door

Glynn Johnson 793H Extra Heavy Duty Surface Mount Overhead Door Stop / Holder 23-1/16" - 33" Door

Hold-Open model provides a selective Hold-Open function with easy-to-adjust tension. A simple 90 Degree rotation of the roller mechanism disables the Hold-Open function, allowing the unit to serve as a shock-absorbing stop. The Hold-Open function provides a convenient method of holding the door open at a predetermined position for short or long periods of time, permitting an unobstructed traffic flow through the opening.

The Hold-Open tension is simply adjusted incrementally for increased or decreased holding power by turning the nut at the end of the bar

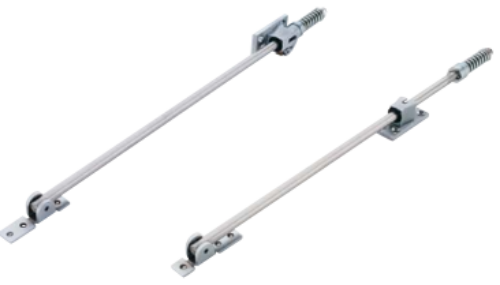

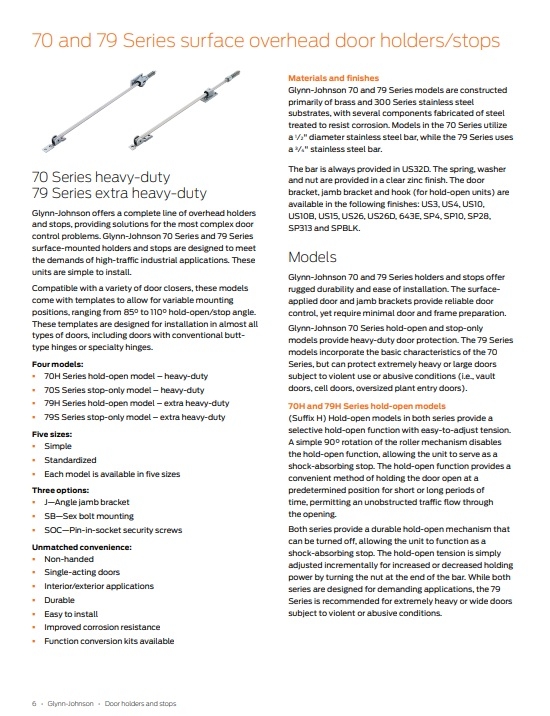

Glynn-Johnson 79 series surface-mounted holders and stops are designed to meet the demands of high-traffic industrial applications. These units are simple to install. Compatible with a variety of door closers, these models come with templates to allow for variable mounting positions, ranging from 85 Degree to 110 Degree Hold-Open/Stop angle. These templates are designed for installation in almost all types of doors, including doors with conventional butt-type hinges or specialty hinges.

Non-Handed - Single-Acting Doors - Interior/Exterior Applications - Improved Corrosion Resistance

Materials and Finishes:

Glynn-Johnson 79 series models are constructed primarily of Brass and 300 series Stainless Steel substrates, with several components fabricated of Steel treated to resist corrosion.

Models in the 79 series utilize a 3/4"-diameter stainless steel bar.

The bar is always provided in US32D.

The spring, washer and nut are provided in a clear zinc finish.

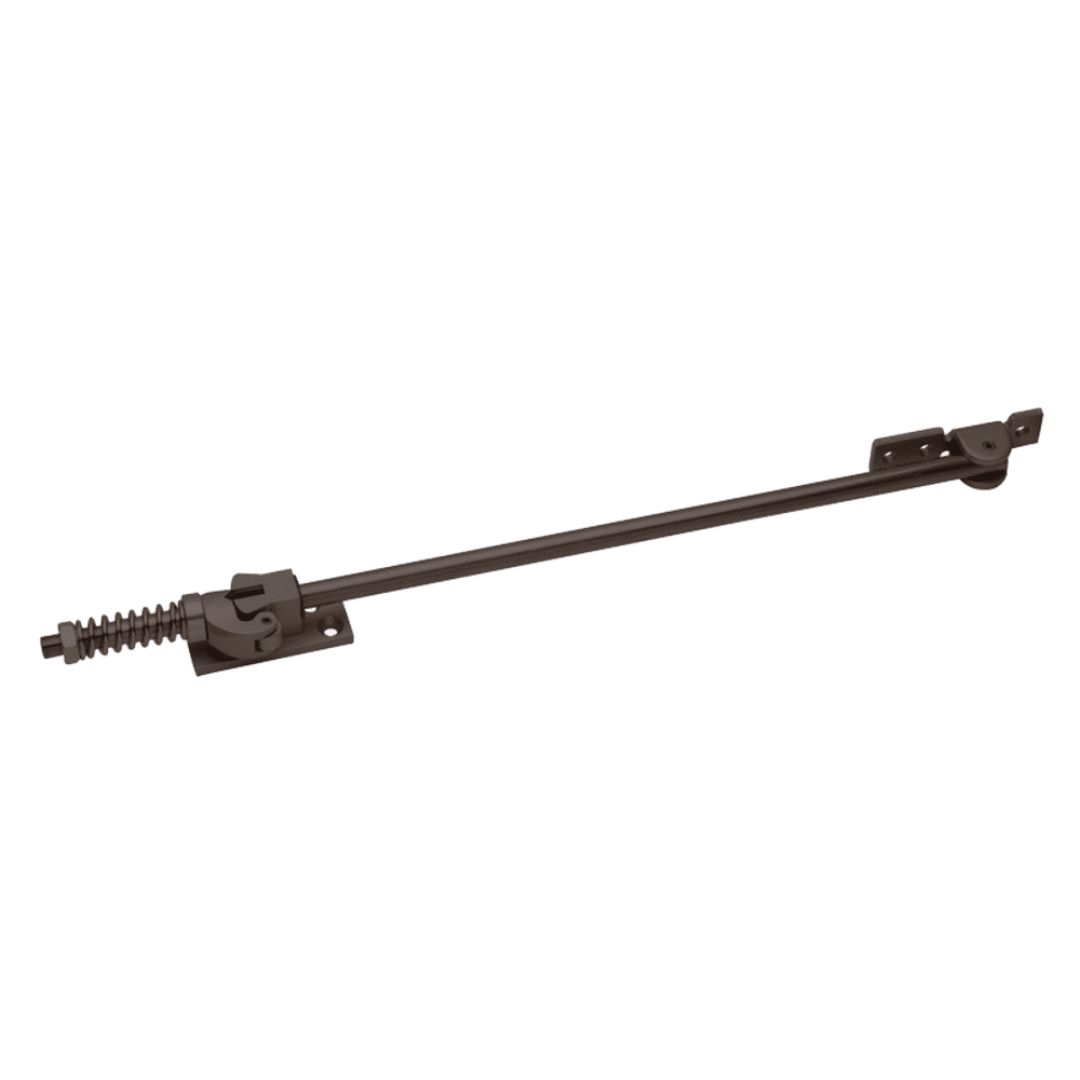

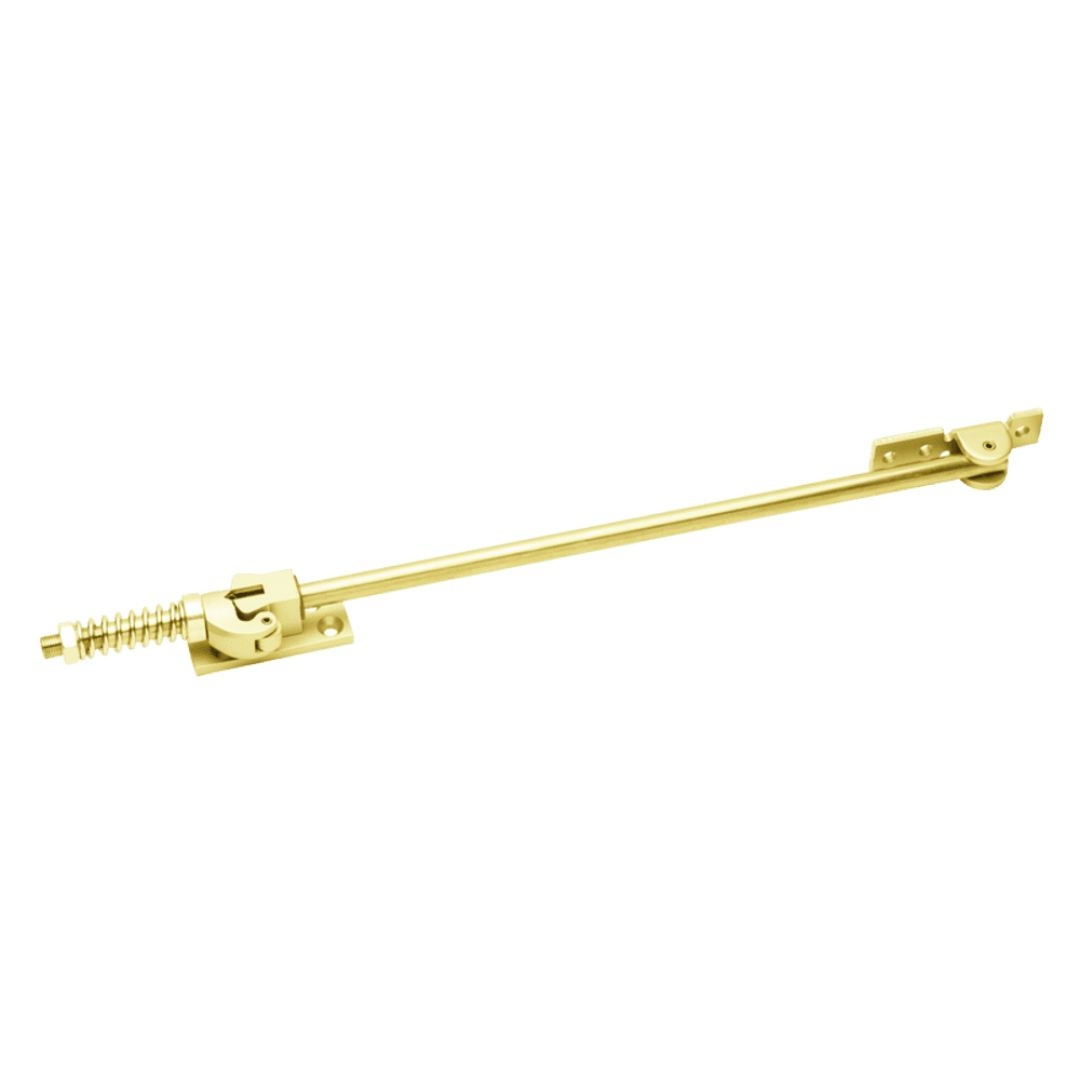

The door bracket, jamb bracket and hook (for Hold-Open units) are available in the following finishes: US3, US4, US10, US10B, US26, US26D, SP4, SP10, SP28, SP313 and SPBLK.

Models:Glynn Johnson, 79, 793, 793H, 793S26D, 793HUS26D, 793HUS26, 793HUS3, 793HUS10B, 793HSP28, 793HSP10, 793HSP4

UL Classification The 70 and 79 Series Stop-Only models are classified by Underwriters Laboratories (UL) as Miscellaneous Fire Door Accessories. This classification applies to use on either Hollow Metal Fire Doors or Wood Fire doors. These units may be used on doors of any rating. As a reminder, the Miscellaneous fire door Accessorie (GVUX) Section is defined by UL as: “Miscellaneous fire door accessories are intended for installation with classified fire doors and/or listed fire door frame as identified in the individual listings. The accessories have been investigated to determine that when installed in accordance with the manufacturer’s instructions, the accessories do not adversely affect the fire rating at the fire door and/or fire door frame."
