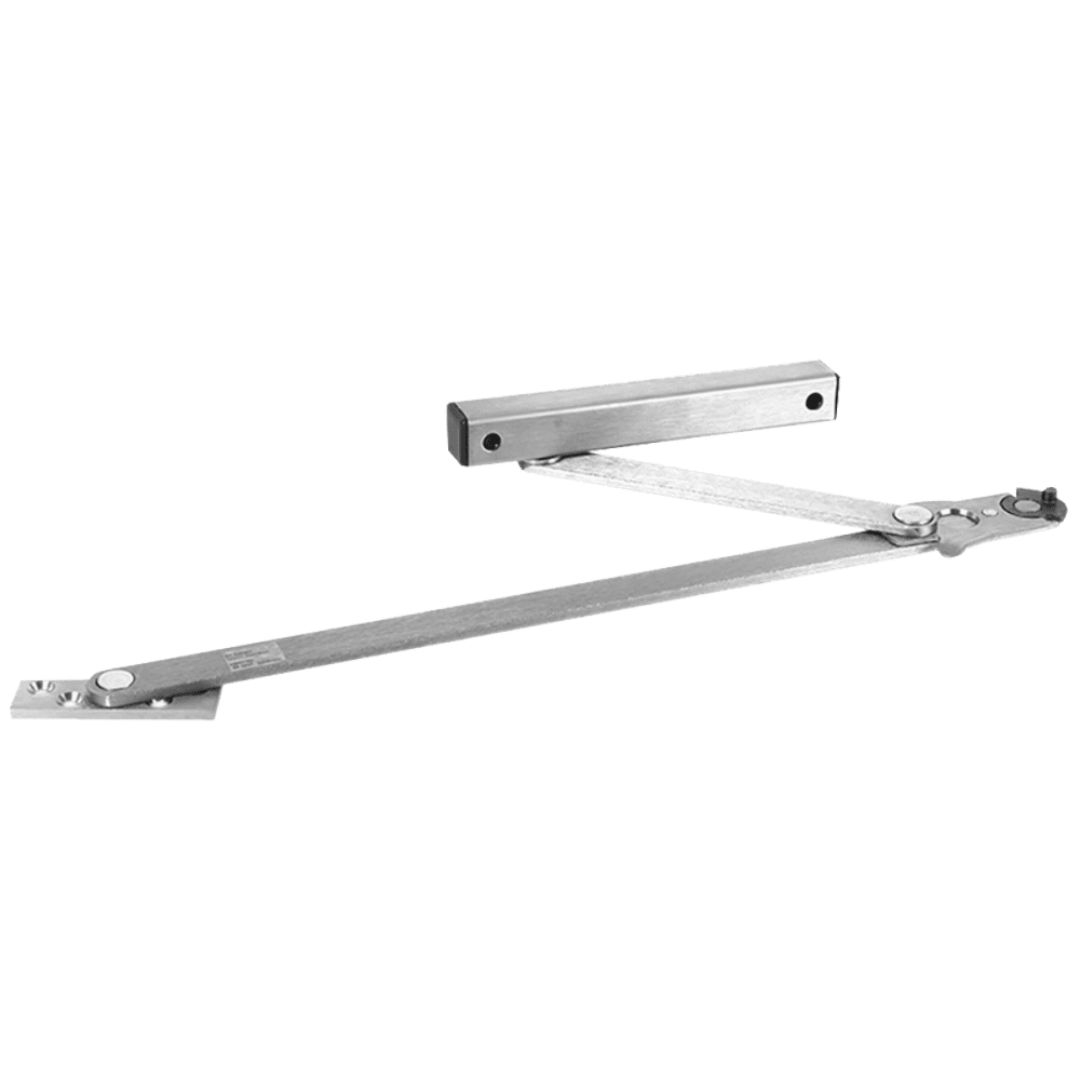

Glynn Johnson 815H Heavy Duty Surface Mount Overhead Door Stop / Hold 39-1/16" - 45" Door

Glynn Johnson 815H Heavy Duty Surface Mount Overhead Door Stop / Hold 39-1/16" - 45" Door

815H:The Hold-Open model should be used when doors will need to be held open at a preset position for an extended period.

The Hold-Open mechanism is selective and may be turned on or off with a simple turn of the thumbturn. In the “off " position, these models act as stops and shock absorbers. In the “on" position, they hold the door open at a preset position between 85 Degree and 110 Degree.

The Hold-Open force is not adjustable in the 81H Series.

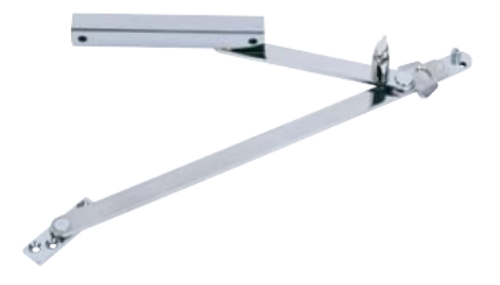

Glynn-Johnson 81 series holders and stops provide rugged, heavy-duty door control. The jointed-arm design provides the most effective stop mechanism available. The shock absorber bracket is surface mounted, usually with sex bolts. The jamb bracket is mounted to the stop of the frame, so a minimum of door and frame preparation is required.

Reversible - Single-Acting Doors - Interior/Exterior Applications - Durable - Easy to Install

Materials:

In Brass, Steel or 300 Stainless Steel, these models offer the broadest range of finishes in the industry, complementing any design. Stainless Steel models offer the highest resistance to corrosion.

Available in the following finishes:

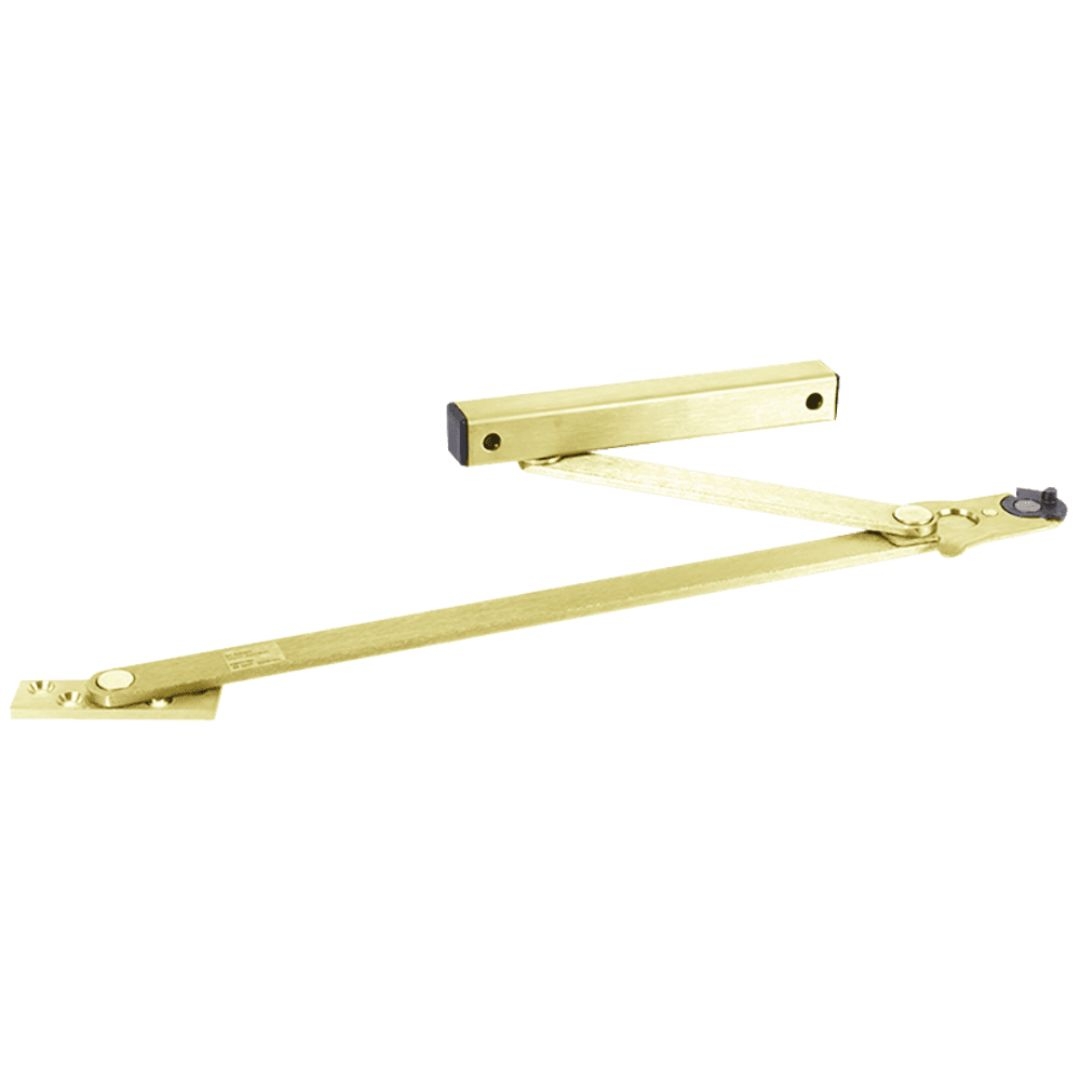

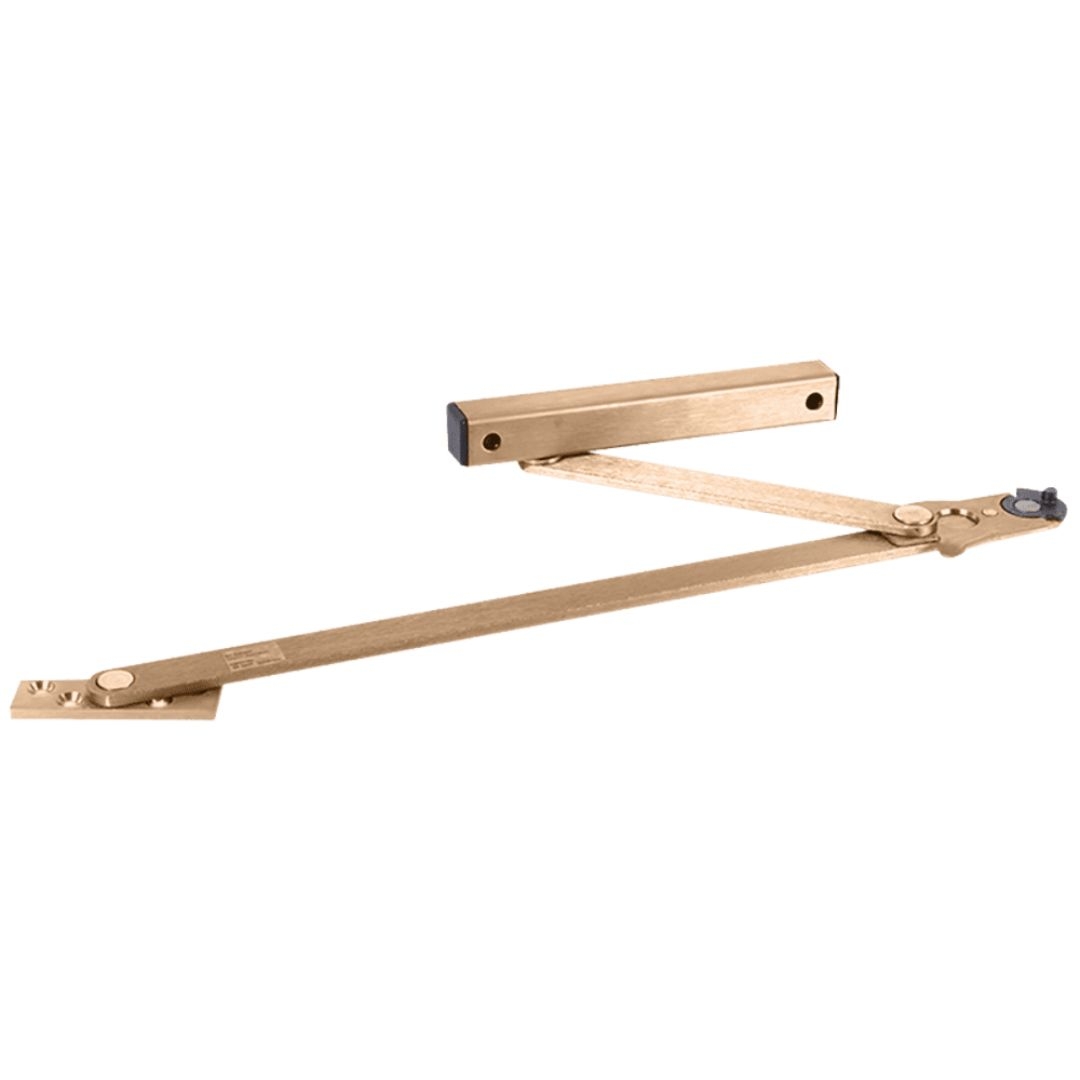

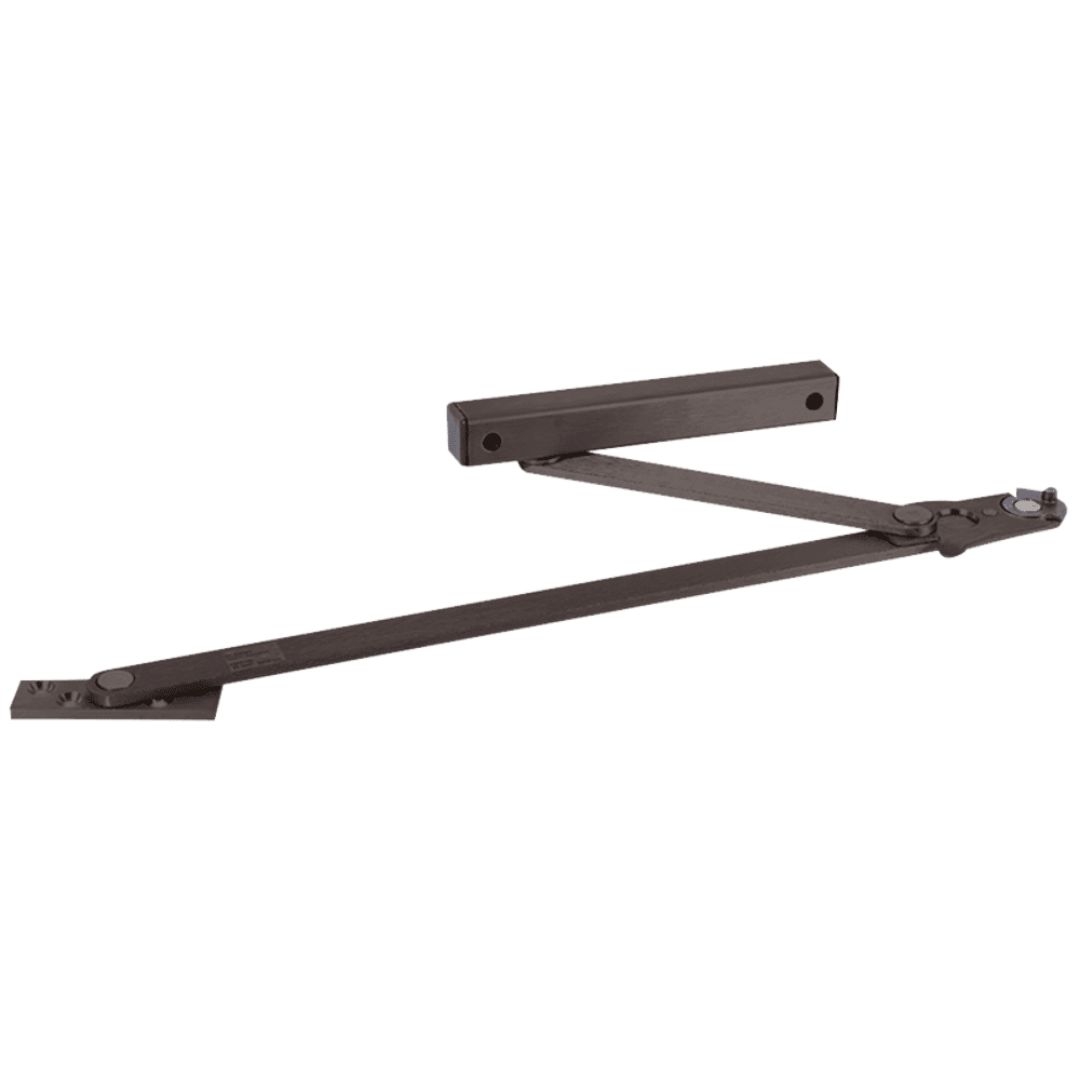

US3 Polished Brass, US4 Satin Brass, US10 Satin Bronze, US10B Oil Rubbed Bronze, US32 Polished Stainless Steel, US32D Satin Stainless Steel, 652 Chrome-like Coating

Models:Glynn Johnson, 81, 813, 815H, 815H32D, 815HUS4, 815HUS10, 815HUS10B, 815HUS32, 815HUS32D, 815HUS652

UL Classification The 81 series Stop-Only models are classified by Underwriters Laboratories (UL) as Miscellaneous Fire Door Accessories. This classification applies to use on either Hollow Metal Fire Doors or Wood Fire Doors. These units may be used on doors of any rating. As a reminder, the Miscellaneous Fire Door Accessories (GVUX)section is defined by UL as: “Miscellaneous fire door accessorie are intended in the individual Listings. The accessories have been investigated to determine that when installed in accordance with the manufacturer’s instructions, the accessories do not adversely affect the fire rating of the fire door and/or fire door frames.
