Product Details

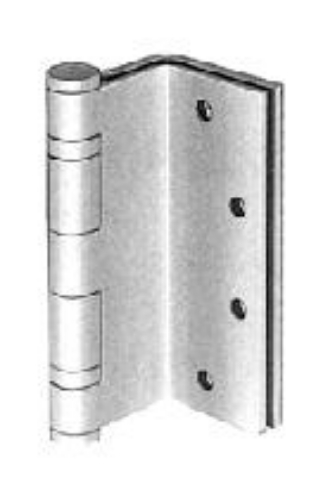

Hager BB1260 - Swing Clear -*Five Knuckle -*Ball Bearing -Standard Weight Hinge
*Swing Clear:*This is used when the passage area must be the full width of the opening. Swing clear hinges are designed to swing the door completely clear of the opening when the door is opened 95 Degree.
****For use in hospitals or other institutional type buildings
For Square Edge Doors
Hinge Size:4-1/2" (114 mm)
Material:Steel with Steel pin- ANSI A8122
Description:
Two ball bearings
Non-rising removable pin with button tip and plug
Reversible
Gauge of Metal:0.140
Hole Count: 8
Screw Size:Machine*Screws: 1/2x 12-24 FH - Wood*Screws:11/4x 12 FH
Packaging:Sold as individual units (1 EACH)
Finish:US26D - Satin Chrome
