Imperial DL-LSV53 Standard Duty Entry Lever Set

Product Details

Imperial - Trans Atlantic - DL-LSV53*Standard Duty* Entry Lever Set

Function:Entry latch - ANSI F109 Turn/push-button locking:Pushing and turning the button locks the outside lever, requiring use of a key until the button is manually unlocked..

Lever:Non-handed and reversible

Latch:1/2" projection stainless steel 3 hour UL

Bore:2 1/8" hole retrofits all cylindrical locksets

Cylinder:Schlage "C" keyway

Keying:Schlage 6 pin keyed

Key:2 six pin nickel plated Backset: 2 3/4" - face 1 1/8" - 2 1/4"

Strike: ANSI 1 1/4" - 4 7/8" strike   Door Thickness:1 3/4" - 2"

Certification:Grade 2 compliance

Thrubolts are removable   Warranty:Lifetime mechanical. 10 year finish

Model:Imperial - Trans Atlantic - DL-LSV53 US26D, DL-LSV53 US26D,DL-LSV53, Trans Atlantic DL-LSV40 US26D, DX-LSV53,Satin Chrome,ENT DX-LSV53 23/4UL 26D ANSI SC6,KD

Imperial DL-LSV53 Standard Duty Entry Lever Set

SKU: DL-LSV53

In Stock

Finish *

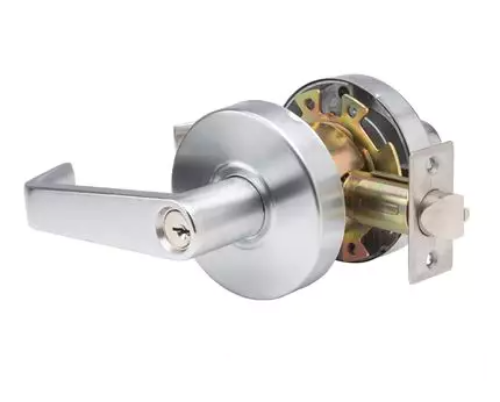

626 - Satin Chrome
626 - Satin Chrome
613 - Oil Rubbed Bronze
613 - Oil Rubbed Bronze

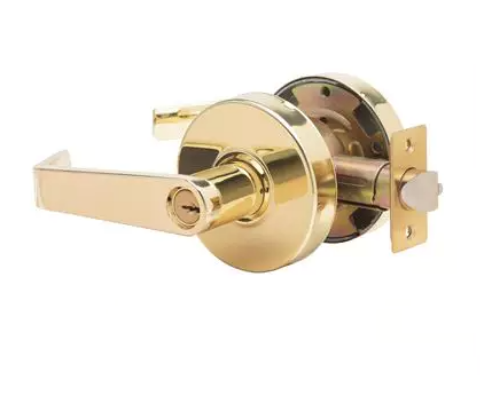

03 - Bright Brass
03 - Bright Brass

Keying *

$53.32

$48.92

You saved ($4.40)

About this item

The DL-LSV series cylindrical leverset are designed for use on all standard duty grade 2 light commercial and residential applications. The DL-LSV series is also ADA compliant. Solid zinc diecast.

Resources

Imperial - Trans Atlantic - DL-LSV53*Standard Duty* Entry Lever Set

Function:Entry latch - ANSI F109 Turn/push-button locking:Pushing and turning the button locks the outside lever, requiring use of a key until the button is manually unlocked..

Lever:Non-handed and reversible

Latch:1/2" projection stainless steel 3 hour UL

Bore:2 1/8" hole retrofits all cylindrical locksets

Cylinder:Schlage "C" keyway

Keying:Schlage 6 pin keyed

Key:2 six pin nickel plated Backset: 2 3/4" - face 1 1/8" - 2 1/4"

Strike: ANSI 1 1/4" - 4 7/8" strike   Door Thickness:1 3/4" - 2"

Certification:Grade 2 compliance

Thrubolts are removable   Warranty:Lifetime mechanical. 10 year finish

Model:Imperial - Trans Atlantic - DL-LSV53 US26D, DL-LSV53 US26D,DL-LSV53, Trans Atlantic DL-LSV40 US26D, DX-LSV53,Satin Chrome,ENT DX-LSV53 23/4UL 26D ANSI SC6,KD

DL-LSV53-US26D
Imperial DL-LSV53 Standard Duty Entry Lever Set

Product code: DL-LSV53

In Stock

$48.92

$53.32



DL-LSV53-US26D
Imperial DL-LSV53 Standard Duty Entry Lever Set

Product code: DL-LSV53

In Stock

$48.92

$53.32
