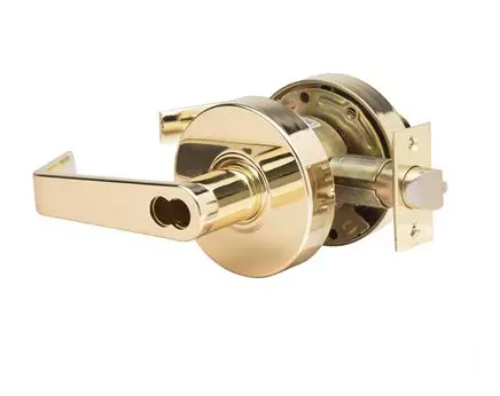

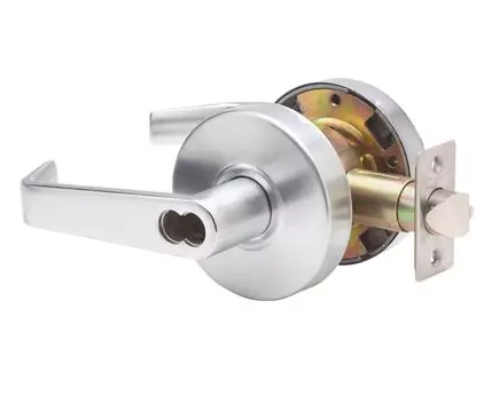

Imperial DL-LSV53IC Standard Duty Entry Lever Set - Accepts SFIC Core

Product Details

Imperial - Trans Atlantic - DL-LSV53IC*Standard Duty* Entry Lever Set - Accepts SFIC Core

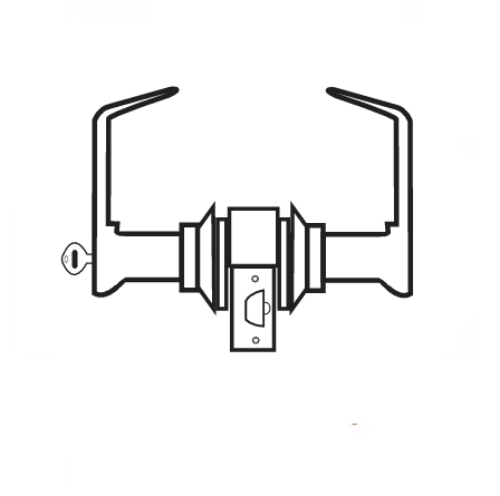

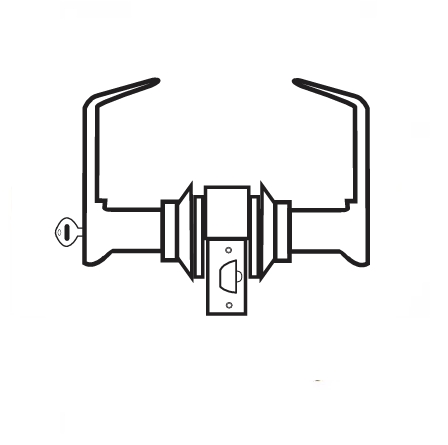

Function:Entry latch - ANSI F109 Turn/push-button locking:Pushing and turning the button locks the outside lever, requiring use of a key until the button is manually unlocked..

Lever:Non-handed and reversible

Latch:1/2" projection stainless steel 3 hour UL

Bore:2 1/8" hole retrofits all cylindrical locksets

IC :Small format Figure 8 InterchangeableCore NOT included Backset: 2 3/4" - face 1 1/8" - 2 1/4"

Strike: ANSI 1 1/4" - 4 7/8" strike   Door Thickness:1 3/4" - 2"

Certification:Grade 2 compliance

Thrubolts are removable   Warranty:Lifetime mechanical. 10 year finish

Finish:US26D-US3

Model:Imperial - Trans Atlantic - DL-LSV53IC US26D, DL-LSV53IC US3,DL-LSV53IC, Trans Atlantic DL-LSV53IC, DX-LSV53IC,Satin Chrome,ENT DX-LSV53IC 23/4UL 26D ANSI SC6,KD

Imperial DL-LSV53IC Standard Duty Entry Lever Set - Accepts SFIC Core

SKU: DL-LSV53IC

In Stock

Finish *

26D - Satin Chrome
26D - Satin Chrome
10B - Oil Rubbed Bronze
10B - Oil Rubbed Bronze

$53.32

$49.63

You saved ($3.69)

About this item

The DL-LSV series cylindrical leverset are designed for use on all standard duty grade 2 light commercial and residential applications. The DL-LSV series is also ADA compliant. Solid zinc diecast.

Resources

Imperial - Trans Atlantic - DL-LSV53IC*Standard Duty* Entry Lever Set - Accepts SFIC Core

Function:Entry latch - ANSI F109 Turn/push-button locking:Pushing and turning the button locks the outside lever, requiring use of a key until the button is manually unlocked..

Lever:Non-handed and reversible

Latch:1/2" projection stainless steel 3 hour UL

Bore:2 1/8" hole retrofits all cylindrical locksets

IC :Small format Figure 8 InterchangeableCore NOT included Backset: 2 3/4" - face 1 1/8" - 2 1/4"

Strike: ANSI 1 1/4" - 4 7/8" strike   Door Thickness:1 3/4" - 2"

Certification:Grade 2 compliance

Thrubolts are removable   Warranty:Lifetime mechanical. 10 year finish

Finish:US26D-US3

Model:Imperial - Trans Atlantic - DL-LSV53IC US26D, DL-LSV53IC US3,DL-LSV53IC, Trans Atlantic DL-LSV53IC, DX-LSV53IC,Satin Chrome,ENT DX-LSV53IC 23/4UL 26D ANSI SC6,KD
