Product Details

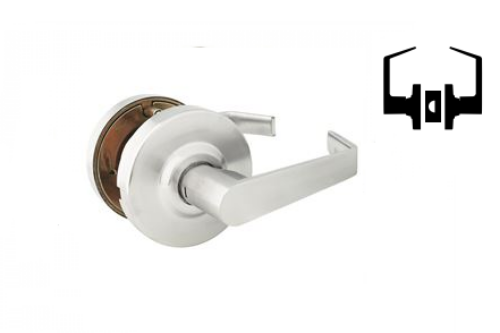

Imperial - Global - GAL-1110L- R -626*Standard Duty PassageLever Set - Satin Chrome*
Function:Passage Latch - ANSI F75 Both levers always unlocked.
Lever:Non-handed and reversible
Latch:5/8" projection stainless steel 3 hour UL
Bore:2 1/8" hole retrofits all grade 2 cylindrical locksets
Backset:
2 3/4" - face 1 1/8" - 2 1/4"
Strike: ANSI 1 1/4" - 4 7/8" strike
Door Thickness:Adjustable 1 3/8" - 1 7/8" range
Certification:Grade 2 compliance
Thrubolts are removable
Thru-bolted:5/16" holes outside 2 1/8" bore for anti-rotation
Warranty:Lifetime mechanical. 10 year finish
Finish:US26D
Model:Imperial -global - GAL - 1110L - R -626, GAL1110LR, GAL1110LR626,GAL - 1110L - R Standard Duty Passage, Imperial GAL - 1110L - R -626, Passage,Satin Chrome,GR2 removable bolts Pass LVR US26D
