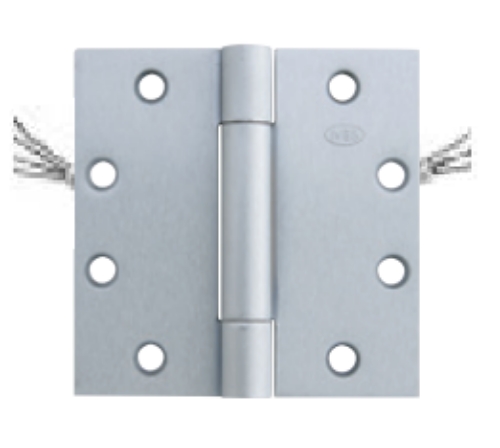

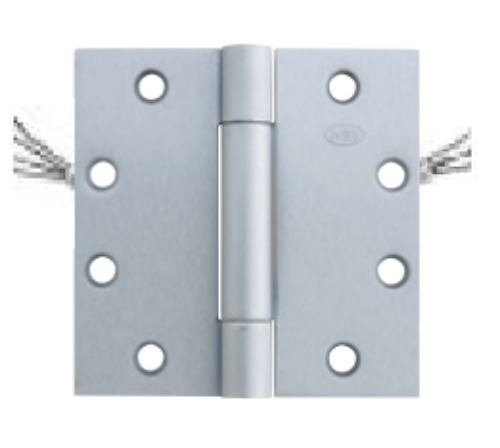

Ives 3CB1 4-1/2" x 4-1/2" TW8 Full Mortise Electrfied Hinge - 8 Wires - Three Knuckle - Concealed Bearing - Standard Weight

Product Details

Ives 3CB1 4-1/2" x 4" TW8 Full Mortise Electrfied Hinge - 8 Wires - Three Knuckle - *Concealed Bearing - Standard Weight*

For use on medium weight doors

- One hinge per box, packed with wood and machine screws

- Hinge is NRP as a standard

- High quality brass ferrules and plastic tubing protectthe wires

- Through-wire hinges cycle tested to ensure durability

- Ives warranty applies -12 months from date of shipment

- 2 ball bearing

Through-Wire is rated for 50 volts AC/DC at 3.5 amp continuous and 16 amp pulse, maximum pulse 400 mili second.

Monitor rated 30VDC at .5 amp

UL Listed - UL634 Meets ANSI/BHMA A156.1 A8111 – Steel A5111 – Stainless Steel A2111 – Brass

Hinge Size:4-1/2" x 4" (114 x 102 mm)

Material:Steel

Gauge of Metal:0.134

Ives 3CB1 4-1/2" x 4-1/2" TW8 Full Mortise Electrfied Hinge - 8 Wires - Three Knuckle - Concealed Bearing - Standard Weight

SKU: 3CB1 TW8

In Stock

Finish *

652 (US26D) Satin Chrome - Steel Base
652 (US26D) Satin Chrome - Steel Base

$426.65

$748.50

You saved $321.85

About this item

Full Mortise Commercial Electrified Hinge - 8 Wires - Steel / Stainless Steel - Concealed Bearing - Standard Weight

Resources

Ives 3CB1 4-1/2" x 4" TW8 Full Mortise Electrfied Hinge - 8 Wires - Three Knuckle - *Concealed Bearing - Standard Weight*

For use on medium weight doors

- One hinge per box, packed with wood and machine screws

- Hinge is NRP as a standard

- High quality brass ferrules and plastic tubing protectthe wires

- Through-wire hinges cycle tested to ensure durability

- Ives warranty applies -12 months from date of shipment

- 2 ball bearing

Through-Wire is rated for 50 volts AC/DC at 3.5 amp continuous and 16 amp pulse, maximum pulse 400 mili second.

Monitor rated 30VDC at .5 amp

UL Listed - UL634 Meets ANSI/BHMA A156.1 A8111 – Steel A5111 – Stainless Steel A2111 – Brass

Hinge Size:4-1/2" x 4" (114 x 102 mm)

Material:Steel

Gauge of Metal:0.134

3cbitw4
Ives 3CB1 4-1/2" x 4-1/2" TW8 Full Mortise Electrfied Hinge - 8 Wires - Three Knuckle - Concealed Bearing - Standard Weight

Product code: 3CB1 TW8

In Stock

$748.50

$426.65

3cbitw4
Ives 3CB1 4-1/2" x 4-1/2" TW8 Full Mortise Electrfied Hinge - 8 Wires - Three Knuckle - Concealed Bearing - Standard Weight

Product code: 3CB1 TW8

In Stock

$748.50

$426.65
