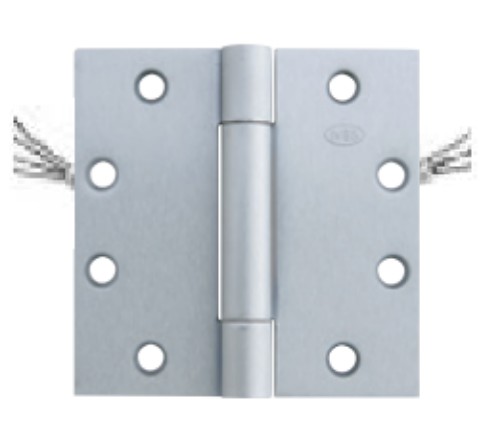

Ives 3CB1HW 4-1/2" x 4-1/2" TW4 Full Mortise Electrified Hinge - 4 Wires - Three Knuckle - Concealed Bearing - Heavy Weight

Product Details

Ives 3CB1HW 4-1/2" x 4-1/2" TW4  Full Mortise Electrified Hinge - 4 Wires - Three Knuckle - *Concealed Bearing - Heavy Weight*

For use on Heavy weight doors

Hinge Size:4-1/2" x 4-1/2" (114 x 114 mm)

Material:Steel

Gauge of Metal:0.180

- One hinge per box, packed with wood and machine screws

- Hinge is NRP as a standard

- High quality brass ferrules and plastic tubing protectthe wires

- Through-wire hinges cycle tested to ensure durability

- Ives warranty applies -12 months from date of shipment

- 2 ball bearing

Through-Wire is rated for 50 volts AC/DC at 3.5 amp continuous and 16 amp pulse, maximum pulse 400 mili second.

Monitor rated 30VDC at .5 amp

UL Listed - UL634 Meets ANSI/BHMA A156.1 A8111 – Steel A5111 – Stainless Steel A2111 – Brass

Ives 3CB1HW 4-1/2" x 4-1/2" TW4 Full Mortise Electrified Hinge - 4 Wires - Three Knuckle - Concealed Bearing - Heavy Weight

SKU: 3CB1HWTW4

In Stock

Finish *

600 (USP) Primed For Paint
600 (USP) Primed For Paint
652 (US26D) Satin Chrome - Steel Base [+$4.02]
652 (US26D) Satin Chrome - Steel Base [+$4.02]

$302.67

$550.30

You saved $247.63

About this item

Full Mortise Commercial Electrified Hinge - 4 Wires - Steel  - Concealed Bearing - Heavy Weight

Resources

Ives 3CB1HW 4-1/2" x 4-1/2" TW4  Full Mortise Electrified Hinge - 4 Wires - Three Knuckle - *Concealed Bearing - Heavy Weight*

For use on Heavy weight doors

Hinge Size:4-1/2" x 4-1/2" (114 x 114 mm)

Material:Steel

Gauge of Metal:0.180

- One hinge per box, packed with wood and machine screws

- Hinge is NRP as a standard

- High quality brass ferrules and plastic tubing protectthe wires

- Through-wire hinges cycle tested to ensure durability

- Ives warranty applies -12 months from date of shipment

- 2 ball bearing

Through-Wire is rated for 50 volts AC/DC at 3.5 amp continuous and 16 amp pulse, maximum pulse 400 mili second.

Monitor rated 30VDC at .5 amp

UL Listed - UL634 Meets ANSI/BHMA A156.1 A8111 – Steel A5111 – Stainless Steel A2111 – Brass

3cbitw4

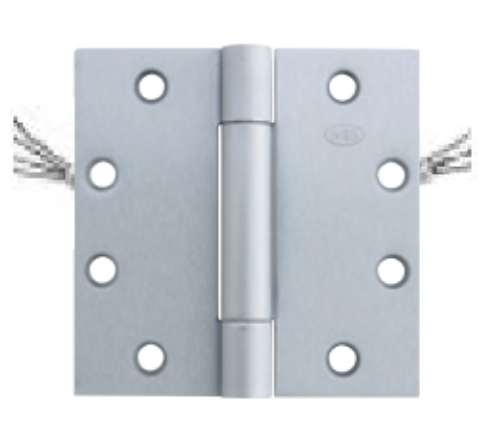

Ives 3CB1HW 4-1/2" x 4-1/2" TW4 Full Mortise Electrified Hinge - 4 Wires - Three Knuckle - Concealed Bearing - Heavy Weight
