Ives 3CB1HW 4-1/2" x 4-1/2" TW8 Full Mortise Electrified Hinge - 8 Wires - Three Knuckle - Concealed Bearing - Heavy Weight

Product Details

Ives 3CB1HW 4-1/2" x 4-1/2" TW8 Full Mortise Electrified Hinge - 8 Wires - Three Knuckle - *Concealed Bearing - Heavy Weight*

For use on Heavy weight doors

Hinge Size:4-1/2" x 4-1/2" (114 x 114 mm)

Material:Steel

Gauge of Metal:0.180

 One hinge per box, packed with wood and machine screws Hinge is NRP as a standard High quality brass ferrules and plastic tubing protectthe wires Through-wire hinges cycle tested to ensure durability Ives warranty applies -12 months from date of shipment 2 ball bearingThrough-Wire is rated for 50 volts AC/DC at 3.5 amp continuous and 16 amp pulse, maximum pulse 400 mili second.

Monitor rated 30VDC at .5 amp

UL Listed - UL634 Meets ANSI/BHMA A156.1 A8111 – Steel A5111 – Stainless Steel A2111 – Brass

Ives 3CB1HW 4-1/2" x 4-1/2" TW8 Full Mortise Electrified Hinge - 8 Wires - Three Knuckle - Concealed Bearing - Heavy Weight

SKU: 3CB1 HWTW8

In Stock

Finish *

652 (US26D) Satin Chrome - Steel Base
652 (US26D) Satin Chrome - Steel Base
633 (US4) Satin Brass, Clear Coat - Steel Base [+$0.38]
633 (US4) Satin Brass, Clear Coat - Steel Base [+$0.38]

$437.42

$795.30

You saved $357.88

About this item

Full Mortise Commercial Electrified Hinge - 8 Wires - Steel  - Concealed Bearing - Heavy Weight

Resources

Ives 3CB1HW 4-1/2" x 4-1/2" TW8 Full Mortise Electrified Hinge - 8 Wires - Three Knuckle - *Concealed Bearing - Heavy Weight*

For use on Heavy weight doors

Hinge Size:4-1/2" x 4-1/2" (114 x 114 mm)

Material:Steel

Gauge of Metal:0.180

 One hinge per box, packed with wood and machine screws Hinge is NRP as a standard High quality brass ferrules and plastic tubing protectthe wires Through-wire hinges cycle tested to ensure durability Ives warranty applies -12 months from date of shipment 2 ball bearingThrough-Wire is rated for 50 volts AC/DC at 3.5 amp continuous and 16 amp pulse, maximum pulse 400 mili second.

Monitor rated 30VDC at .5 amp

UL Listed - UL634 Meets ANSI/BHMA A156.1 A8111 – Steel A5111 – Stainless Steel A2111 – Brass

3cbitw4

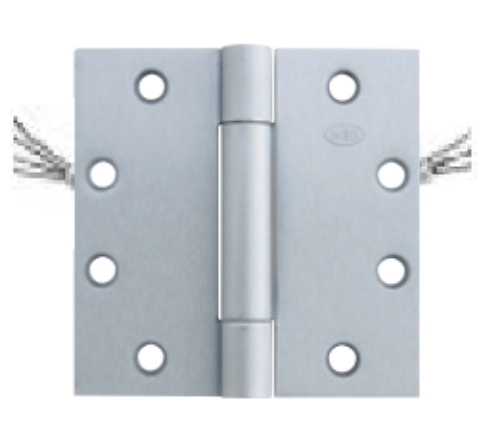

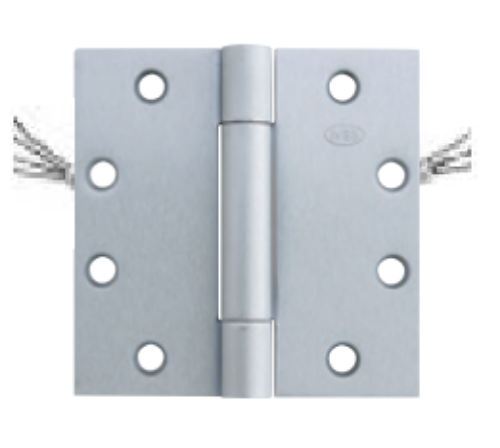

Ives 3CB1HW 4-1/2" x 4-1/2" TW8 Full Mortise Electrified Hinge - 8 Wires - Three Knuckle - Concealed Bearing - Heavy Weight

Product code: 3CB1 HWTW8

In Stock

$795.30

$437.42

3cbitw4
Ives 3CB1HW 4-1/2" x 4-1/2" TW8 Full Mortise Electrified Hinge - 8 Wires - Three Knuckle - Concealed Bearing - Heavy Weight

Product code: 3CB1 HWTW8

In Stock

$795.30

$437.42
