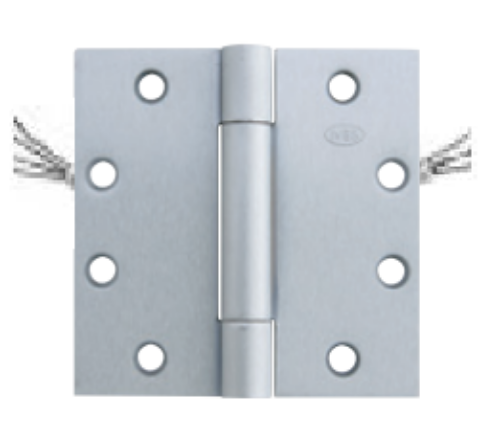

Ives 3CB1HW 4-1/2" x 4" TW8M Full Mortise Electrfied Hinge - 8 Wires W/ Monitor - Three Knuckle - Concealed Bearing - Heavy Weight

Product Details

Ives 3CB1HW 4-1/2" x 4" TW8M  Full Mortise Electrfied Hinge - 8 Wires W/ Monitor - Three Knuckle - *Concealed Bearing - Heavy Weight*

For use on Heavy weight doors

 One hinge per box, packed with wood and machine screws Hinge is NRP as a standard High quality brass ferrules and plastic tubing protectthe wires Through-wire hinges cycle tested to ensure durability Ives warranty applies -12 months from date of shipment 2 ball bearingThrough-Wire is rated for 50 volts AC/DC at 3.5 amp continuous and 16 amp pulse, maximum pulse 400 mili second.

Monitor rated 30VDC at .5 amp

UL Listed - UL634 Meets ANSI/BHMA A156.1 A8111 – Steel A5111 – Stainless Steel A2111 – Brass

Hinge Size:4-1/2" x 4" (114 x 102 mm)

Material:Steel

Gauge of Metal:0.180

Ives 3CB1HW 4-1/2" x 4" TW8M Full Mortise Electrfied Hinge - 8 Wires W/ Monitor - Three Knuckle - Concealed Bearing - Heavy Weight

SKU: 3CB1HW TW8M

In Stock

Finish *

652 (US26D) Satin Chrome - Steel Base
652 (US26D) Satin Chrome - Steel Base
632 (US3) Bright Brass, Clear Coat - Steel Base [+$10.01]
632 (US3) Bright Brass, Clear Coat - Steel Base [+$10.01]
630 (US32D) Satin Stainless Steel Stainless - Steel Base [+$78.54]
630 (US32D) Satin Stainless Steel Stainless - Steel Base [+$78.54]

$745.22

$1,307.40

You saved $562.18

About this item

Full Mortise Commercial Electrified Hinge - 8 Wires W/ Monitor - Steel / Stainless Steel - Concealed Bearing - Standard Weight

Resources

Ives 3CB1HW 4-1/2" x 4" TW8M  Full Mortise Electrfied Hinge - 8 Wires W/ Monitor - Three Knuckle - *Concealed Bearing - Heavy Weight*

For use on Heavy weight doors

 One hinge per box, packed with wood and machine screws Hinge is NRP as a standard High quality brass ferrules and plastic tubing protectthe wires Through-wire hinges cycle tested to ensure durability Ives warranty applies -12 months from date of shipment 2 ball bearingThrough-Wire is rated for 50 volts AC/DC at 3.5 amp continuous and 16 amp pulse, maximum pulse 400 mili second.

Monitor rated 30VDC at .5 amp

UL Listed - UL634 Meets ANSI/BHMA A156.1 A8111 – Steel A5111 – Stainless Steel A2111 – Brass

Hinge Size:4-1/2" x 4" (114 x 102 mm)

Material:Steel

Gauge of Metal:0.180
