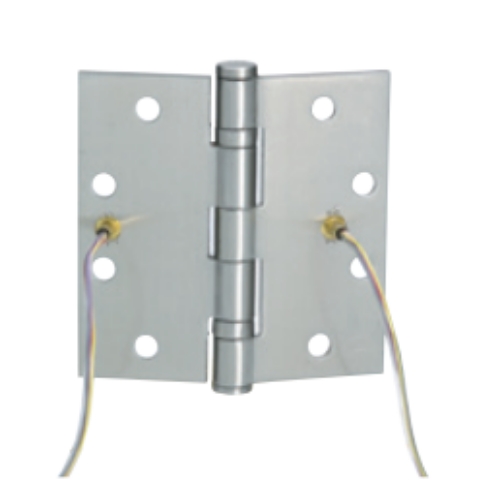

Ives 5BB1 4-1/2" x 4-1/2" TW4 Full Mortise Electrified Hinge - 4 wires - Five Knuckle - Ball Bearing - Standard Weight

Product Details

Ives 5BB1 4-1/2" x 4-1/2" TW4 Full Mortise Electrified Hinge - 4 wires - Five Knuckle - Ball Bearing - Standard Weight

For use on medium weight doors

 One hinge per box, packed with wood and machine screws Hinge is NRP as a standard High quality brass ferrules and plastic tubing protectthe wires Through-wire hinges cycle tested to ensure durability Ives warranty applies -12 months from date of shipment 2 ball bearingThrough-Wire is rated for 50 volts AC/DC at 3.5 amp continuous and 16 amp pulse, maximum pulse 400 mili second.

Monitor rated 30VDC at .5 amp Hinge Size: 4-1/2" x 4-1/2" (114 x 114 mm)

Material:Steel

Gauge of Metal:0.134

UL Listed - UL634 Meets ANSI/BHMA A156.1 A8111 – Steel A5111 – Stainless Steel A2111 – Brass

Ives 5BB1 4-1/2" x 4-1/2" TW4 Full Mortise Electrified Hinge - 4 wires - Five Knuckle - Ball Bearing - Standard Weight

SKU: 5BB1 TW4

In Stock

Finish *

652 (US26D) Satin Chrome - Steel Base
652 (US26D) Satin Chrome - Steel Base
630 (US32D) Satin Stainless Steel Stainless - Steel Base [+$65.12]
630 (US32D) Satin Stainless Steel Stainless - Steel Base [+$65.12]

$285.34

$500.60

You saved $215.26

About this item

Full Mortise Commercial Electrified Hinge - 4 Wires - Steel - Ball Bearing - Standard Weight

Resources

Ives 5BB1 4-1/2" x 4-1/2" TW4 Full Mortise Electrified Hinge - 4 wires - Five Knuckle - Ball Bearing - Standard Weight

For use on medium weight doors

 One hinge per box, packed with wood and machine screws Hinge is NRP as a standard High quality brass ferrules and plastic tubing protectthe wires Through-wire hinges cycle tested to ensure durability Ives warranty applies -12 months from date of shipment 2 ball bearingThrough-Wire is rated for 50 volts AC/DC at 3.5 amp continuous and 16 amp pulse, maximum pulse 400 mili second.

Monitor rated 30VDC at .5 amp Hinge Size: 4-1/2" x 4-1/2" (114 x 114 mm)

Material:Steel

Gauge of Metal:0.134

UL Listed - UL634 Meets ANSI/BHMA A156.1 A8111 – Steel A5111 – Stainless Steel A2111 – Brass

5bb1tw4
Ives 5BB1 4-1/2" x 4-1/2" TW4 Full Mortise Electrified Hinge - 4 wires - Five Knuckle - Ball Bearing - Standard Weight

Product code: 5BB1 TW4

In Stock

$500.60

$285.34

5bb1tw4
Ives 5BB1 4-1/2" x 4-1/2" TW4 Full Mortise Electrified Hinge - 4 wires - Five Knuckle - Ball Bearing - Standard Weight

Product code: 5BB1 TW4

In Stock

$500.60

$285.34
