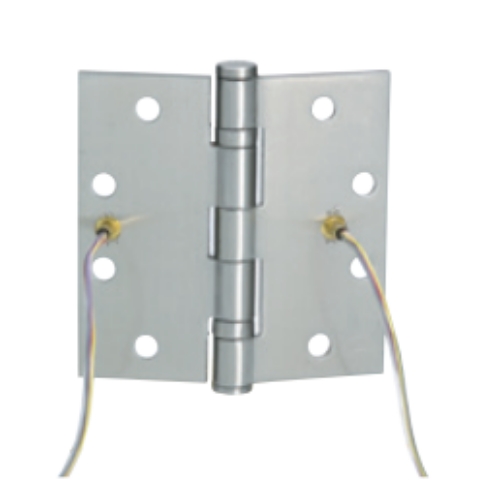

Ives 5BB1 4-1/2" x 4-1/2" TW8M Full Mortise Electrified Hinge - 8 wires W/ Monitor - Five Knuckle - Ball Bearing - Standard Weight

Ives 5BB1 4-1/2" x 4-1/2" TW8M Full Mortise Electrified Hinge - 8 wires W/ Monitor - Five Knuckle - Ball Bearing - Standard Weight

For use on medium weight doors

One hinge per box, packed with wood and machine screws

- Hinge is NRP as a standard

- High quality brass ferrules and plastic tubing protectthe wires

- Through-wire hinges cycle tested to ensure durability

- Ives warranty applies -12 months from date of shipment

- 2 ball bearing

Through-Wire is rated for 50 volts AC/DC at 3.5 amp continuous and 16 amp pulse, maximum pulse 400 mili second.

Monitor rated 30VDC at .5 amp

Hinge Size: 4-1/2" x 4-1/2" (114 x 114 mm)

Material: Steel, Brass/ Bronze

Gauge of Metal: 0.134

Packaging: Packed with wood and metal screws

UL Listed - UL634 Meets ANSI/BHMA A156.1 A8111 – Steel A5111 – Stainless Steel A2111 – Brass
