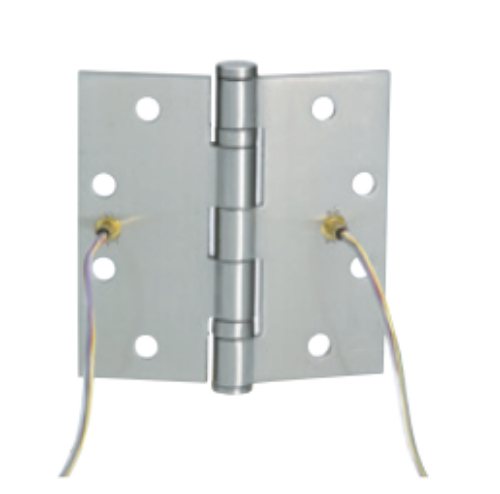

Ives 5BB1 5" x 4-1/2" TW8 Full Mortise Electrified Hinge - 8 wires - Five Knuckle - Ball Bearing - Standard Weight

Product Details

Ives 5BB1 5" x 4-1/2" TW8 Full Mortise Electrified Hinge - 8 wires - Five Knuckle - Ball Bearing - Standard Weight

For use on medium weight doors

- One hinge per box, packed with wood and machine screws

- Hinge is NRP as a standard

- High quality brass ferrules and plastic tubing protectthe wires

- Through-wire hinges cycle tested to ensure durability

- Ives warranty applies -12 months from date of shipment

- 2 ball bearing

Through-Wire is rated for 50 volts AC/DC at 3.5 amp continuous and 16 amp pulse, maximum pulse 400 mili second.

Monitor rated 30VDC at .5 amp Hinge Size: 5" x 4-1/2"

Material:Steel, Brass/ Bronze

Gauge of Metal:0.134

Packaging:Packed with wood and metal screws

UL Listed - UL634 Meets ANSI/BHMA A156.1 A8111 – Steel A5111 – Stainless Steel A2111 – Brass

Ives 5BB1 5" x 4-1/2" TW8 Full Mortise Electrified Hinge - 8 wires - Five Knuckle - Ball Bearing - Standard Weight

SKU: 5BB1 TW8545

In Stock

Finish *

652 (US26D) Satin Chrome - Steel Base
652 (US26D) Satin Chrome - Steel Base

$384.98

$675.40

You saved $290.42

About this item

Full Mortise Commercial Electrified Hinge - 8 Wires - Steel /  Brass/ Bronze - Ball Bearing - Standard Weight

Resources

Ives 5BB1 5" x 4-1/2" TW8 Full Mortise Electrified Hinge - 8 wires - Five Knuckle - Ball Bearing - Standard Weight

For use on medium weight doors

- One hinge per box, packed with wood and machine screws

- Hinge is NRP as a standard

- High quality brass ferrules and plastic tubing protectthe wires

- Through-wire hinges cycle tested to ensure durability

- Ives warranty applies -12 months from date of shipment

- 2 ball bearing

Through-Wire is rated for 50 volts AC/DC at 3.5 amp continuous and 16 amp pulse, maximum pulse 400 mili second.

Monitor rated 30VDC at .5 amp Hinge Size: 5" x 4-1/2"

Material:Steel, Brass/ Bronze

Gauge of Metal:0.134

Packaging:Packed with wood and metal screws

UL Listed - UL634 Meets ANSI/BHMA A156.1 A8111 – Steel A5111 – Stainless Steel A2111 – Brass
