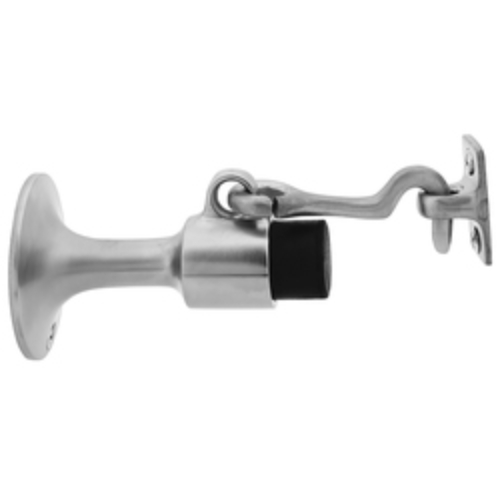

Ives WS445 Wall Door Stop & Holder (for masonry mounting)

Ives WS445 Wall Door Stop & Holder (for masonry mounting)

Constructed in cast of brass or aluminum.

Unit functions as a stop but serves as a Hold-Open device when hook

is manually engaged in strike.

Unit requires manual disengagement to release Hold-Open.

Replaceable resilient, non-marring rubber tip.

Packed with expansion shield and lead shield for masonry type mounting.

**Dimensions

**Base Diameter: 2-1/4"

Base Projection: 3-11/16"

Engaged Projection: 5-3/4"

Strike Height: 1-1/2"

Strike Width: 13/16"

Strike Projection: 13/16"

Finish: US3 - Bright Brass (605) US4 - Satin Brass (606)  US10 - Satin Bronze (612)  US10B - Oil Rubbed Bronze (613)  US26 - Bright Chrome (625) US26D - Satin Chrome (626) US15 - Satin Nickel (619)

Model: WS445US3, WS445US4, WS445US10, WS445US10B, WS445US26, WS445US26D, WS445US15
