Product Details

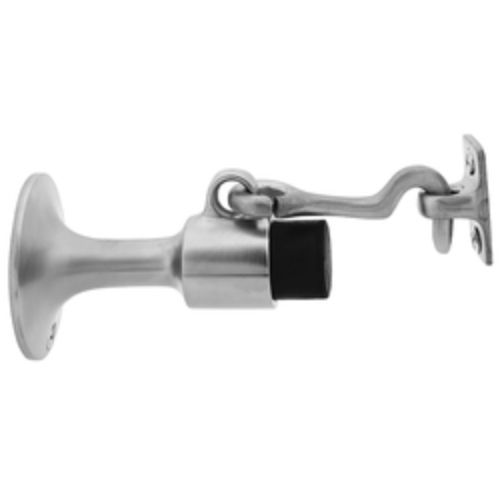

Ives WS449 Wall Door Stop & Holder (for drywal mounting)
Constructed in cast of brass or aluminum.
Unit functions as a stop but serves as a Hold-Open device when hook
is manually engaged in strike.
Unit requires manual disengagement to release Hold-Open.
Replaceable resilient, non-marring rubber tip.
Packedwith wood screws for drywall mounting.
Dimensions
Base Diameter: 2-1/4"
Base Projection: 3-11/16"
Engaged Projection: 5-3/4"
Strike Height: 1-1/2"
Strike Width: 13/16"
Strike Projection: 13/16"
Finish:
US3 - Bright Brass (605)
US4 - Satin Brass (606)
US10 - Satin Bronze (612)
US10B - Oil Rubbed Bronze (613)
US26 - Bright Chrome (625)
US26D - Satin Chrome (626)
US15 - Satin Nickel (619)
US28 - Aluminum (628)
Model:
WS449US3, WS449US4, WS449US10, WS449US10B, WS449US26, WS449US26D, WS449US15, WS449US28
