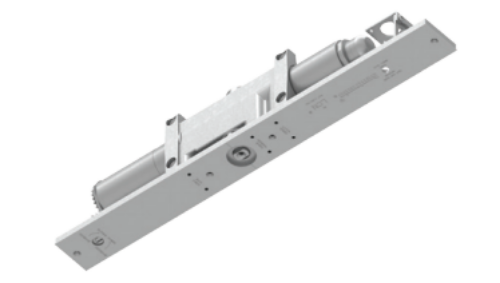

LCN 2314ME-STD Concealed in frame, Closer/ Holder - Aluminum

The LCN 2314ME is the SENTRONIC Series concealed in-frame closer/holder for interior smoke barrier and labeled fire doors. The closer body conceals inside the door frame, not on the door face and not on a surface bracket. When the door is closed, there is no visible hardware on the door or frame face from either corridor direction. The track arm connects from the closer body in the frame to a track on the door, and the door operates as a standard closer when hold-open is not active.

When current flows, the electromagnetic hold-open mechanism engages and holds the door open at the set position: infinitely adjustable up to 160 degrees, with templating allowing 180 degrees. When the fire alarm activates or power is interrupted for any reason, the electromagnetic hold releases and the closer mechanism takes over. The door closes under normal rack-and-pinion closer action. This fail-safe behavior is the code requirement for fire and smoke barrier doors: they must close and latch when the fire alarm fires. The 2314ME satisfies that requirement in a concealed installation. For all door closers and holders, browse our door closers catalog.

LCN 2314ME vs. LCN 4314ME

Both are LCN SENTRONIC Series concealed in-frame closer/holders for fire-rated applications. The difference is capacity. The 2314ME is sized for its specific door width range - the 2310ME SENTRONIC Series serves narrower and lighter interior doors, including 2'4" (28") smoke barrier corridor doors common in healthcare and institutional construction. The 4314ME is the higher-capacity SENTRONIC unit from the 4310ME Series, sized for wider and heavier doors in the same concealed in-frame configuration. Confirm your door width and door weight against LCN's sizing criteria before ordering between the two series. If you arrived searching for "lcn 4314me," this is the 2314ME product page.

Fire Code Compliance Certifications

The 2314ME carries the certification set required for labeled fire door hardware:

Grade 1 under ANSI A156.15. UL 10C positive pressure fire rating. ADA compliance. 100-hour salt spray. NFPA 101 Life Safety Code compliance. Buy American Act (BAA) compliance for federal and government procurement specifications. This certification package makes the 2314ME specifiable on federal projects under BAA requirements, which require domestically manufactured products, and on any life safety specification calling for UL10C positive pressure fire door hardware.

LCN 2314ME SENTRONIC Specifications

• SKU: 2314ME-STD

• Also known as: LCN 2314ME, 2314ME STD, LCN SENTRONIC 2314ME, lcn 4314me (see comparison above), LCN 2310ME 2314, lcn concealed fire door closer holder

• Series: LCN 2310ME SENTRONIC

• Type: Concealed in-frame, closer/holder, electrified hold-open

• Size: Size 4 only (not multi-sized; confirm sizing against door specs before ordering)

• Power: 24V AC/DC or 120V AC/DC (must specify voltage at time of order)

• Handing: RH or LH (must specify handing at time of order)

• Hold-open: Infinitely adjustable; hold-open positions up to 160 degrees

• Max opening (templating): 180 degrees

• Fail mode: Fail safe; door closes when power fails or is interrupted

• Fire alarm interface: Yes; interfaces directly with fire alarm system

• Body: Cast iron; full complement bearing; 1-1/2" diameter piston; 11/16" double heat-treated pinion journal

• Fluid: All-weather fluid

• Arm: Standard arm, track roller, standard track

• Wiring: Concealed or exposed; built-in on/off switch controls hold-open function

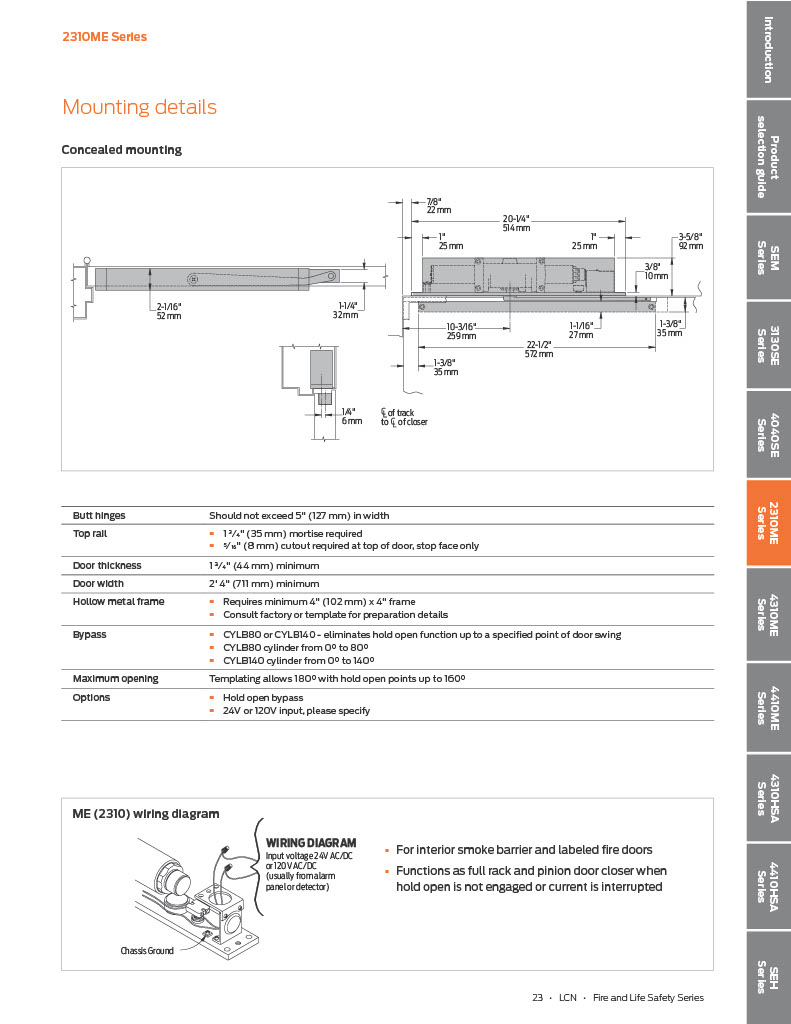

• Door prep: 1-3/8" (35mm) mortise required in frame; 5/16" (8mm) cutout required at top of door stop face only

• Door thickness: 1-3/4" (44mm) minimum

• Door width: 2'4" (711mm)

• Finish: Powder Coat Aluminum (689)

• Certifications: Grade 1 ANSI A156.15, UL 10C, ADA, 100-Hour Salt Spray, Buy American Act, NFPA 101

• Warranty: 2 years

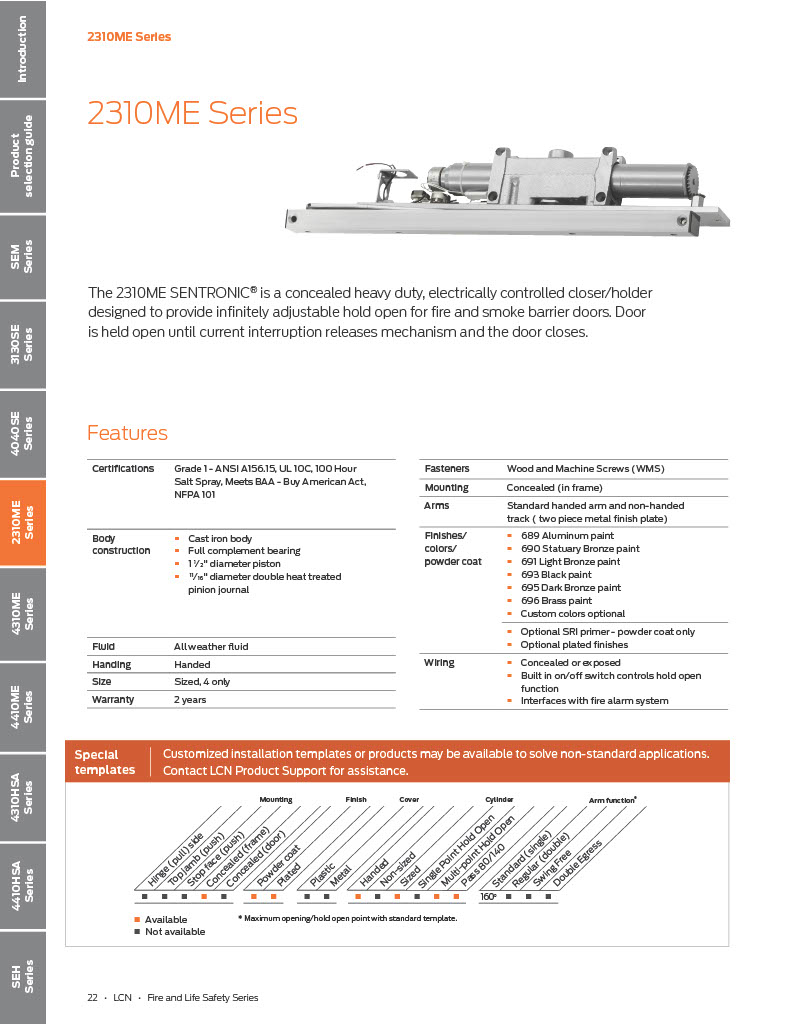

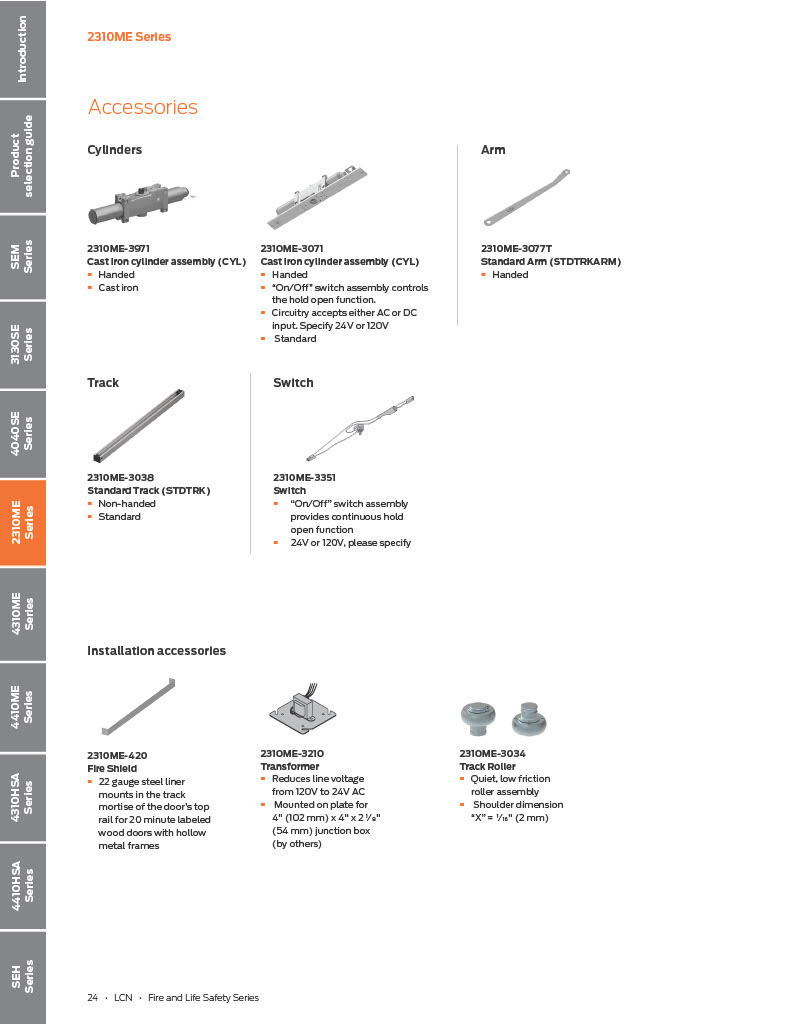

• Resources: LCN 2310 Full Catalog and Options PDF in Resources section
