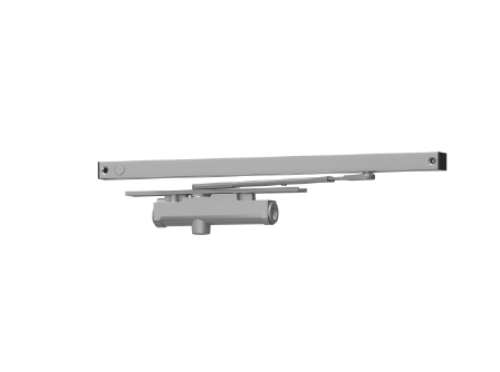

LCN 3134SE-STD 24V AL Concealed in door, Closer/ Holder - Size 4

LCN 3134SE 24V AL Concealed in door, Closer/ Holder - Aluminum (689) - 24V AC/DC - Size 4

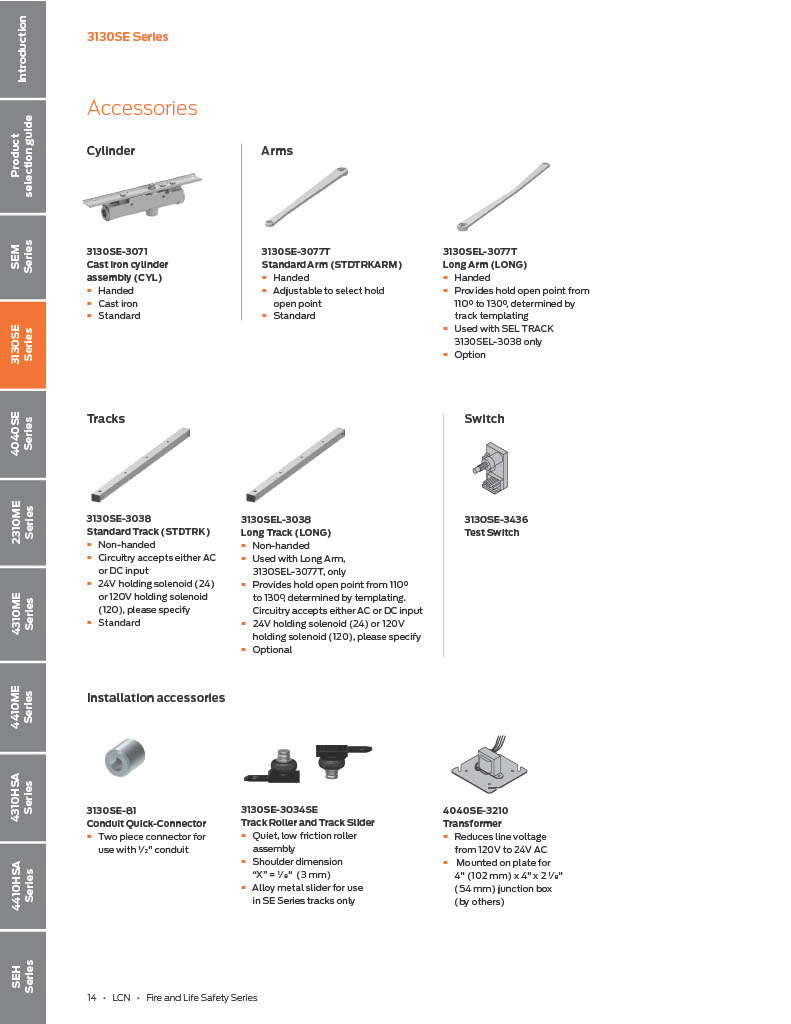

Standard arm - Track roller and slider - Standard track - Wood & machine screw pack

For interior smoke barrier and labeled fire doors

Functions as full rack and pinion door closer when hold-open is not engaged or current is interrupted

Interfaces with fire alarm  system

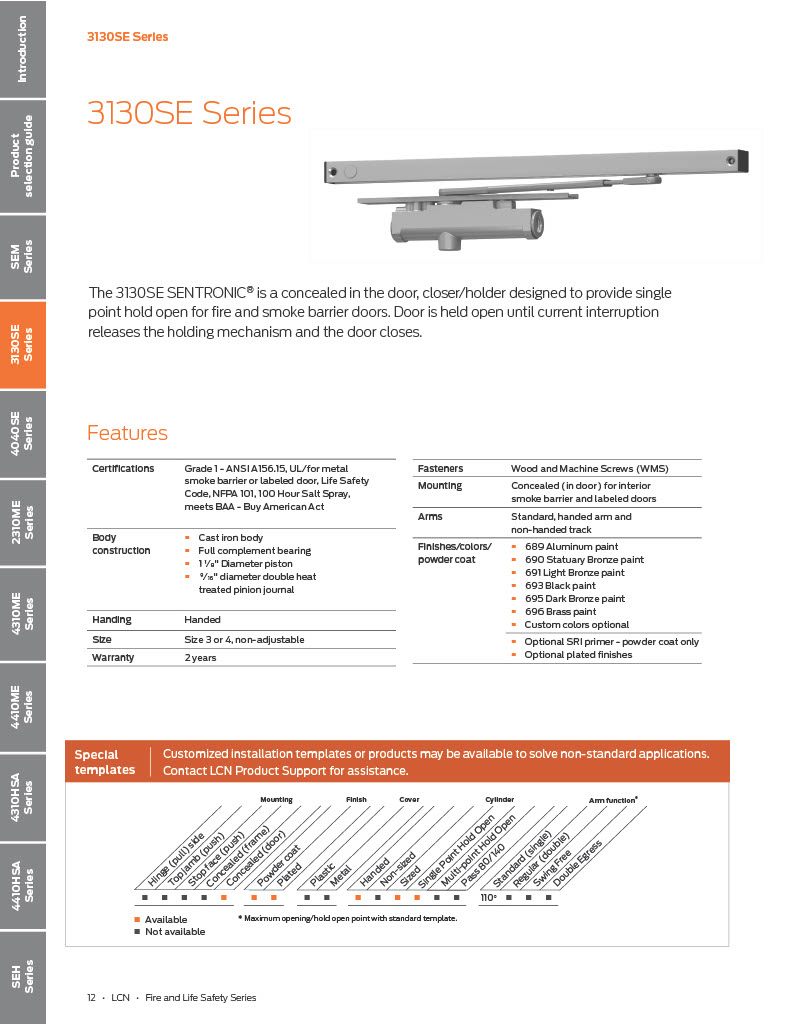

Body Construction:Cast Iron Body, Full Complement Bearing, 1-1/8˝ Diameter Piston, 9/16˝ Diameter Double Heat Treated Pinion Journa

Fluid:All Weather Fluid

Certifications:Grade 1 - ANSI A156.15, UL/for metal smoke barrier or labeled door, ADA, Life Safety Code, NFPA 101, 100 Hour Salt Spray, Meets BAA - Buy American Act

Warranty:2 years

Fasteners:Wood and machine screw pack

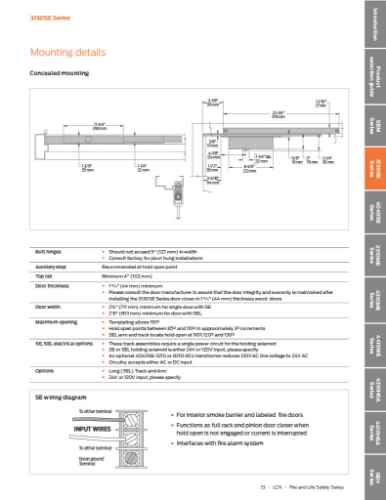

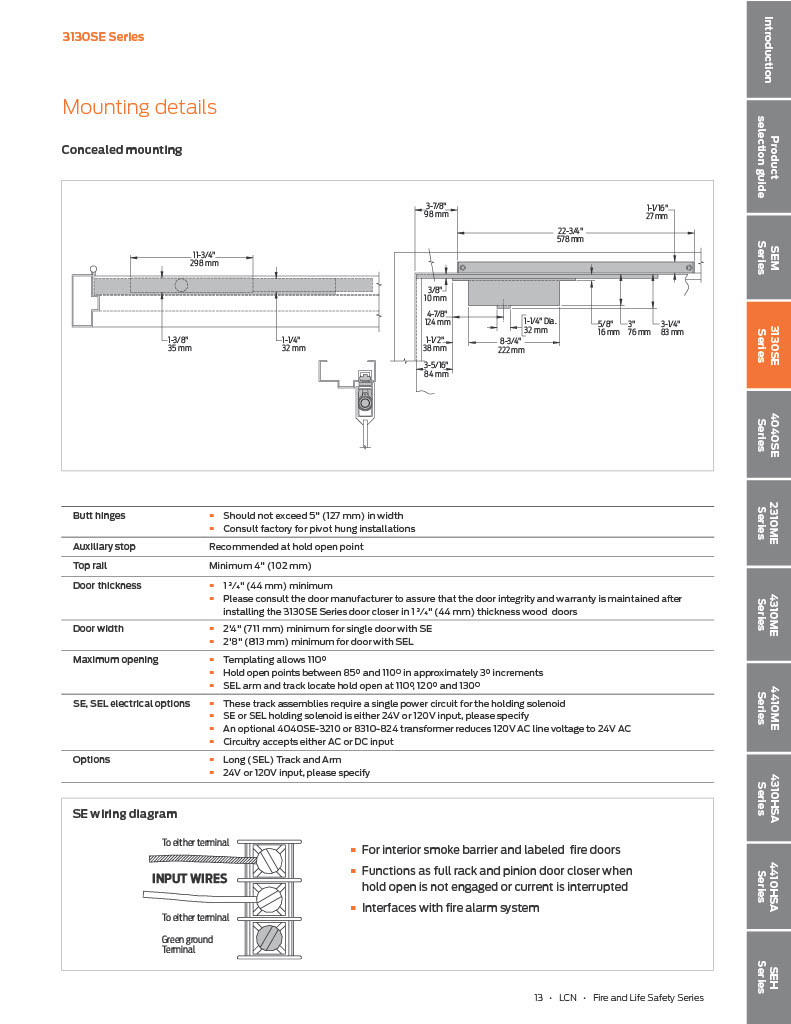

Top Rail:Minimum 4˝ (102 mm)

Door Thickness:1-3/4˝ (44 mm) minimum

Door Width:2´4˝ (711 mm) minimum for single door with SE

Maximum Opening:Templating allows 110 Degree, Hold-open points between 85 Degree and 110 Degree in approximately 3 Degree  increments

Model:LCN 3134SE STD 24V AL, LCN 3134SE STD 24V RH AL, LCN 3134SE STD 24V LH AL
