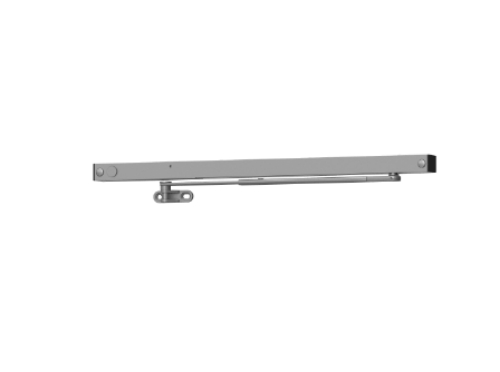

LCN 4040SEH AL SENTRONIC® Holder (Closer Available Separately) - Auminum

LCN 4040SEH AL SENTRONIC® Holder (Closer Available Separately) - Aluminum

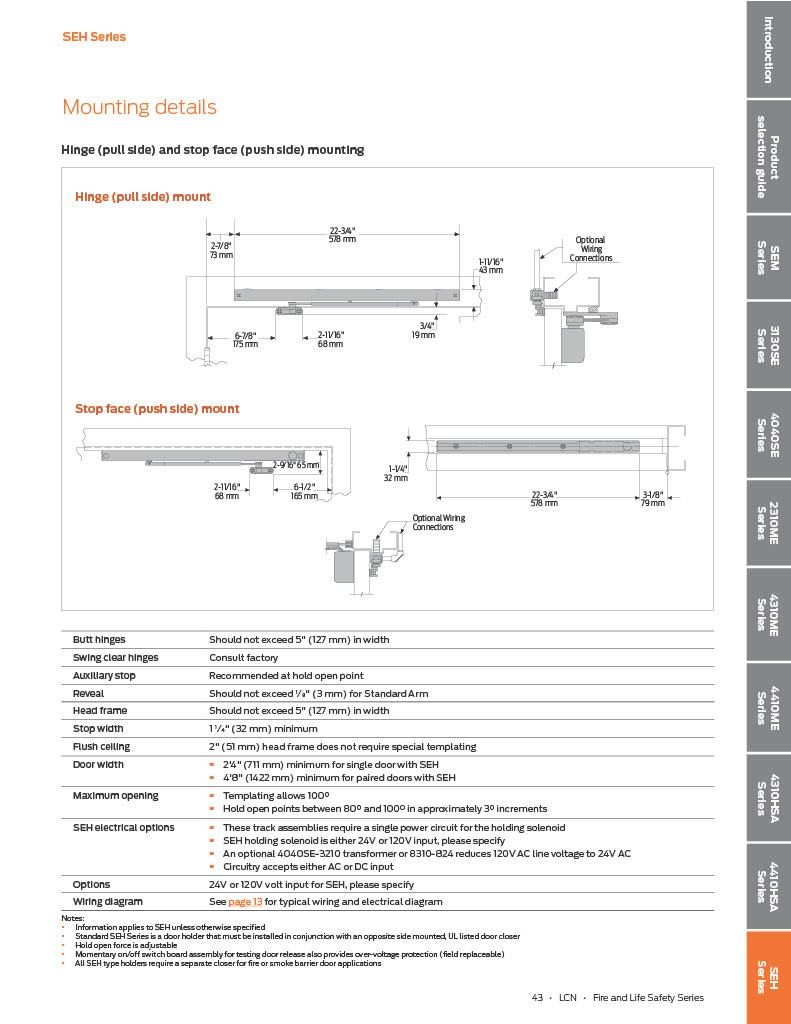

Hinge (pull) side & Stop face (push side) Mountings

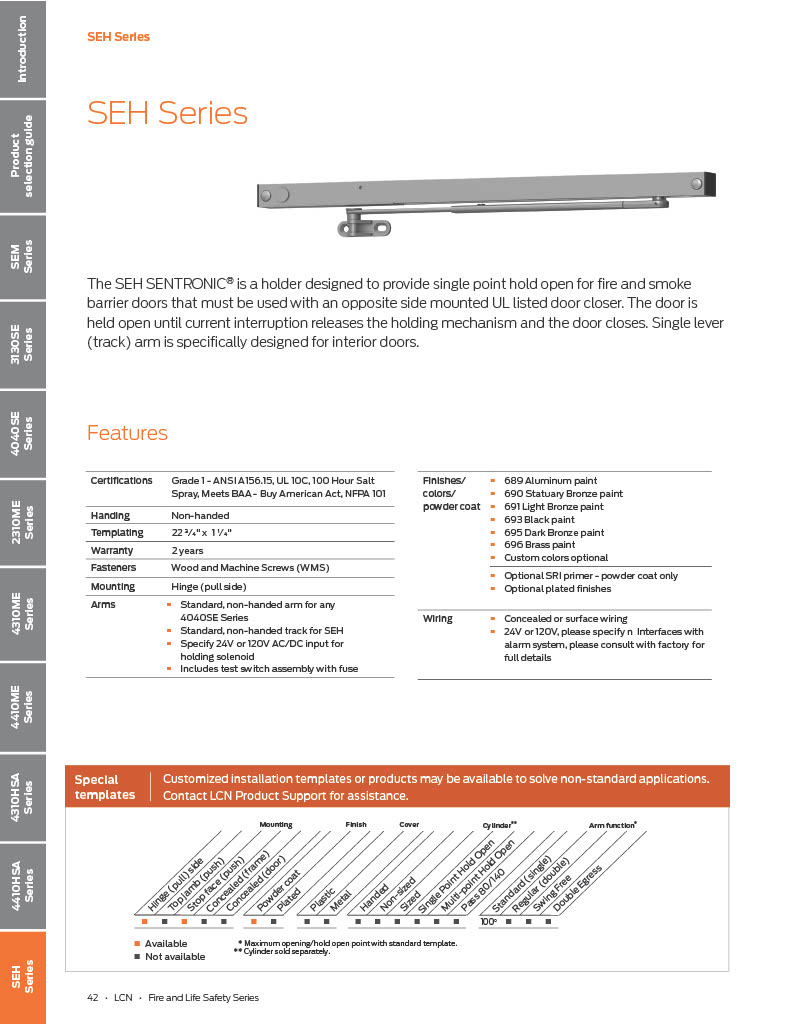

Standard SEH Series is a door holder that must be installed in conjunction with an opposite side mounted, UL listed door closer  Hold-open force is adjustable  Momentary on/off switch board assembly for testing door release also provides over-voltage protection. Field replaceable  All SEH type holders require a separate closer for fire or smoke barrier door applications

Input voltage:24V or 120V

For interior smoke barrier and labeled fire doors

Interfaces with fire alarm  system

Handing:Non-Handed

Templating:22 3/4˝ x 1 1/4˝

Wiring:Concealed or surface

Certifications:Grade 1 - ANSI A156.15, UL 10C, ADA, 100 Hour Salt Spray, Meets BAA - Buy American Act, NFPA 101

Warranty:2 years

Fasteners:Wood and machine screw pack

Reveal:Should not exceed 1/8˝ (3 mm) for standard arm

Head Frame:Requires 2˝ (51 mm) minimum

Stop Width:1-1/4˝ (32 mm) minimum

Flush Ceiling:2˝ (51 mm) head frame does not require special templating

Door Width:2´4˝ (711 mm) minimum for single door with SEH, 4´8˝ (1422 mm) minimum for paired doors with SEH

Maximum Opening:Templating allows 100 Degree, Hold-open points between 80 Degree and 100 Degree in approximately 3 Degree increments
