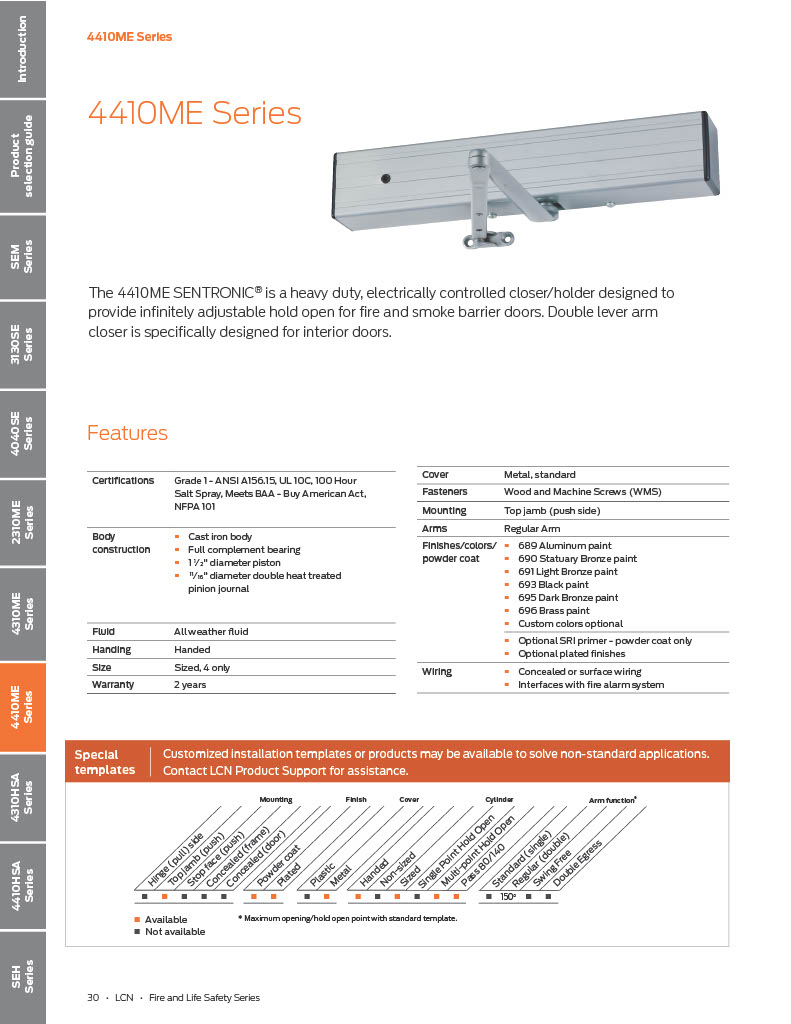

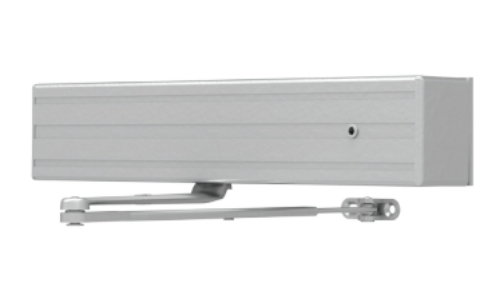

LCN 4414ME Top Jamb (Push Side) Mounting Closer/ Holder

LCN 4414ME Top Jamb (Push Side) Mounting Closer/ Holder

Input voltage:24V AC/DC or 120V AC/DC

Size:Sized, 4 only

For interior smoke barrier and labeled fire doors

Interfaces with fire alarm  system

Cover Metal, Standard

Body Construction:Cast Iron Body, Full Complement Bearing, 1-1/2˝ Diameter Piston, 11/16˝ Diameter Double Heat Treated Pinion Journal

Fluid:All Weather Fluid

Wiring:Concealed or surface Interfaces with fire alarm system

Certifications:Grade 1 - ANSI A156.15, UL 10C, ADA, 100 Hour Salt Spray, Meets BAA - Buy American Act, NFPA 101

Warranty:2 years

Fasteners:Wood and machine screw pack

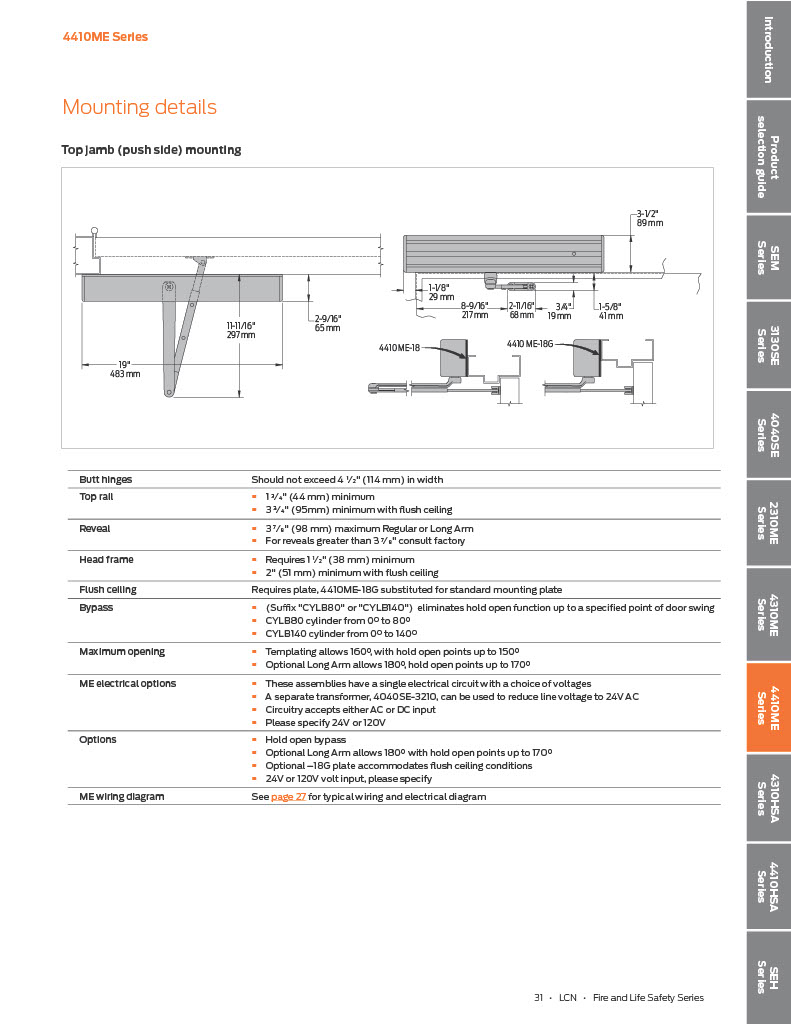

Top Rail:1-3/4˝ (44 mm) minimum, 3-3/4˝ (95mm) minimum with flush ceiling

Reveal:3-7/8˝ (98 mm) maximum regular or long arm

Head Frame:Requires 1-1/2˝ (38 mm) minimum, 2˝ (51 mm) minimum with flush ceiling

Maximum Opening:Templating allows 160 Degree, with hold-open points up to 150 Degree , Optional long arm allows 180 Degree, hold-open points up to 170 Degree

Model:LCN 4414ME STD 24V AL, LCN 4414ME STD 120V AL, LCN 4414ME STD 24V RH AL, LCN 4414ME STD 24V LH AL, LCN 4414ME STD 120V LH AL, LCN 4414ME STD 120V RH AL
