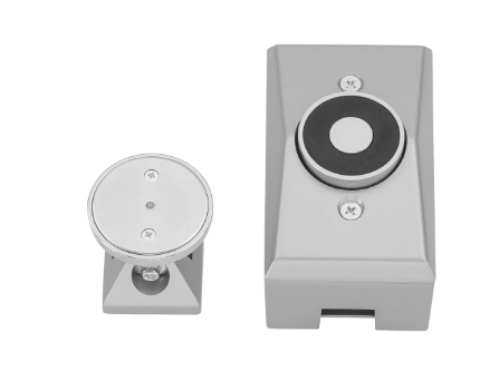

LCN SEM7830 Magnetic Holder

SEM7830 689
1-Page8-LCNHOLDERS
1-Page9-LCNHOLDERS
1-Page10-LCNHOLDERS
SEM7830 689
1-Page8-LCNHOLDERS
1-Page9-LCNHOLDERS
1-Page10-LCNHOLDERS
naxt
prev

Product Details

LCN SEM7830Magnet, Die cast housing, Surface wall mounted.  Finish: Powder Coat

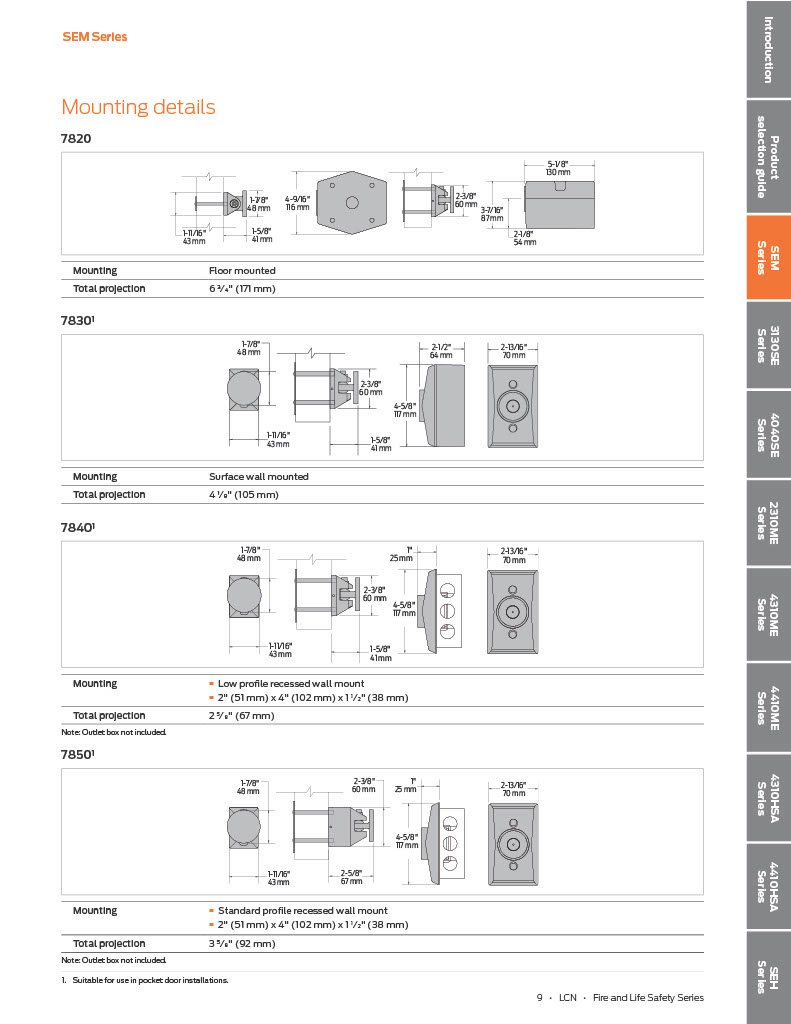

**Mounting:Surface wall mounted

LCN SEM7830 Series:

Tri-voltage design with 35lbs. of holding force. All SEM series magnets are UL listed for smoke barrier or labeled fire doors. Tested and certified under ANSI Standard A156.15. SEM 7830 magnets are shipped with die cast housing, cover, armature and WMS screw pack. Electrical Data:24/120ACDC

Finishes:ALUM - ALUMINUM (BHMA 689), DKBRZ - DARK BRONZE (BHMA 695),

Model:LCN, SEM7830, SEM 7830, SEM7830AL, SEM7830ALUM, SEM7830DKBRZ

LCN SEM7830 Magnetic Holder

SKU: SEM7830

In Stock
Picture for manufacturer LCN
icon Chat

$401.88

Finish *

ALUM - ALUMINUM (BHMA 689)
ALUM - ALUMINUM (BHMA 689)
DKBRZ - DARK BRONZE (BHMA 695)
DKBRZ - DARK BRONZE (BHMA 695)

About this item

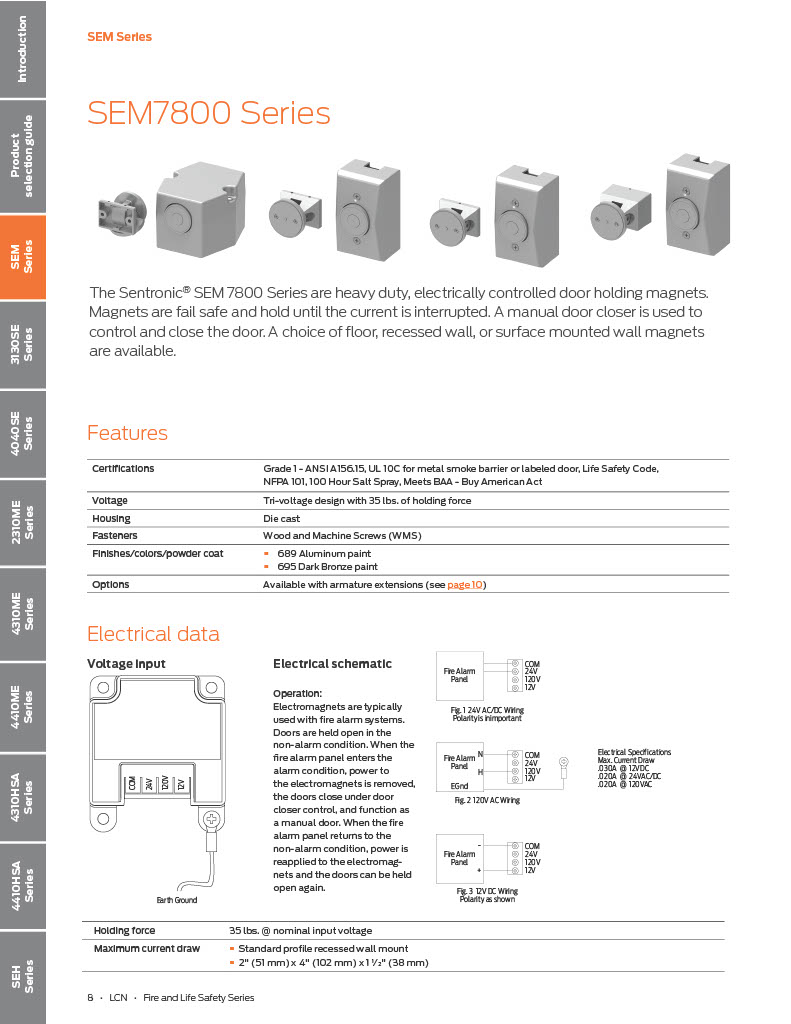

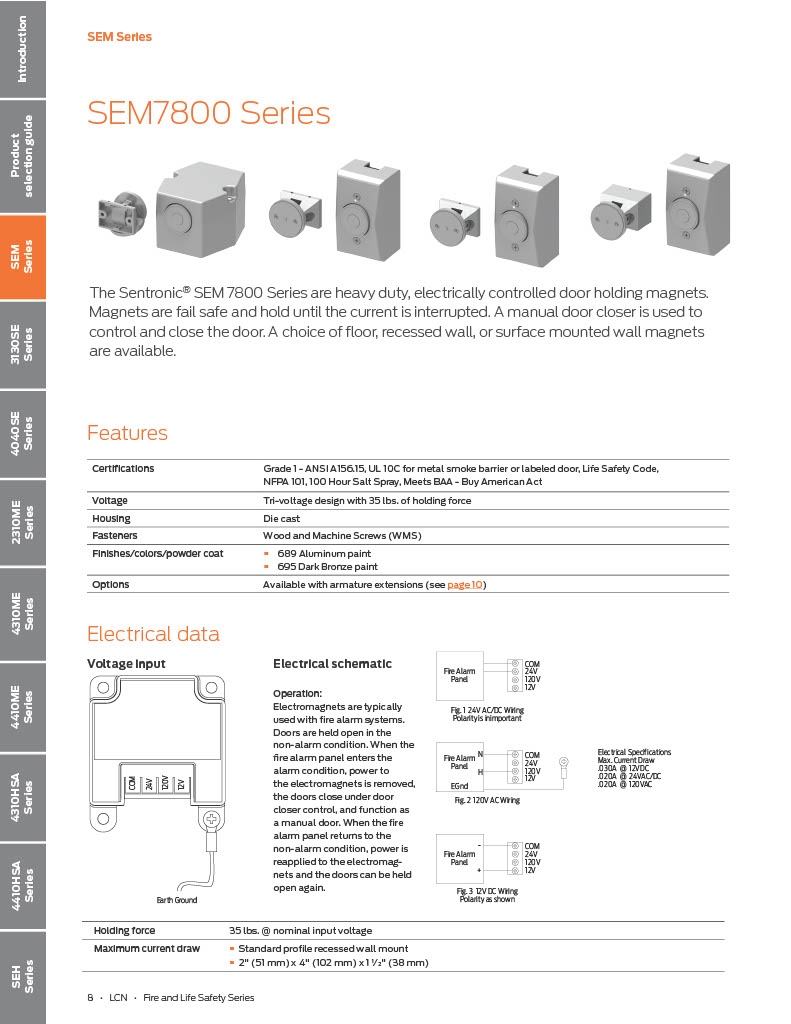

The Sentronic  SEM 7800 Series are heavy duty, electrically controlled door holding magnets. Magnets are fail safe and hold until the current is interrupted. A manual door closer is used to control and close the door. A choice of floor, recessed wall, or surface mounted wall magnets are available.

Resources

LCN SEM7830Magnet, Die cast housing, Surface wall mounted.  Finish: Powder Coat

**Mounting:Surface wall mounted

LCN SEM7830 Series:

Tri-voltage design with 35lbs. of holding force. All SEM series magnets are UL listed for smoke barrier or labeled fire doors. Tested and certified under ANSI Standard A156.15. SEM 7830 magnets are shipped with die cast housing, cover, armature and WMS screw pack. Electrical Data:24/120ACDC

Finishes:ALUM - ALUMINUM (BHMA 689), DKBRZ - DARK BRONZE (BHMA 695),

Model:LCN, SEM7830, SEM 7830, SEM7830AL, SEM7830ALUM, SEM7830DKBRZ

SEM7830 689
LCN SEM7830 Magnetic Holder

Product code: SEM7830

In Stock

$401.88

$401.88

SEM7830 689
LCN SEM7830 Magnetic Holder

Product code: SEM7830

In Stock

$401.88

$401.88

LCN SEM7830 Magnetic Holder

SKU: SEM7830
