Locknetics LP150B, LP Series Power Supply, 1.5 Amp, Board Only

Locknetics LP150B, LP Series Power Supply, 1.5 Amp, Board Only

The LP Series of power supplies include a 1.5 amp and 2.5 amp option to power various electronic access control devices and most single or double door applications.

This line of UL294 certified, Class 2 power supplies have field selectable output voltage, a built-in charger for battery backup and the ability for fire alarm integration. Field replacement is simple with an industry common power supply board footprint and power can be easily managed with the addition of the RDB4 option board.

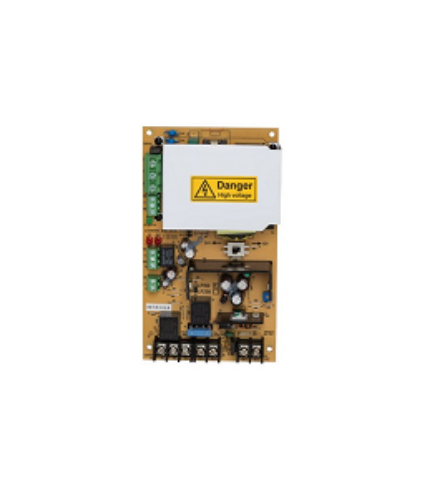

Model:LP150 - 1.5 amp power supply, Board Only

Features and benefits:

Amperage: 1.5 AMPS/2.5 AMPSInput voltage: 120 VAC / 60HzOutput voltage: Field selectable output voltage 12/24 VDCBattery backup circuitry includedDesigned with fire alarm integration, if desiredVisual LED indicators: AC input status, DC output status, battery back up statusProtective cover over the AC components Accessories:

RDB4 Option Board is a four output relay distribution board (LP250 only - sold separately)LP150B 1.5 AMP board onlyLP250B 2.5 AMP board only

Certifications include:

UL294, UL603, Class 2, FCC Part 15, CSFM, RoHS and CSA-C22.2 NO.205
