Marks USA 195F Survivor Storeroom Lock

USA195DW
1-Page1-MarkUSA
USA195DW
1-Page1-MarkUSA
naxt
prev

Product Details

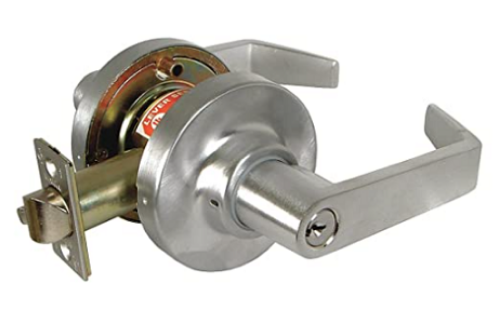

Marks USA 195F Survivor Storeroom Lock

Function:Storeroom -ANSI F86- Deadlocking latch by lever inside, key outside. Outside lever always locked.

Backset:2-3/4 Inch

Bore Hole Diameter:2-1/8"

Rose/Escutcheon Design:3-7/16" Diameter Cylinder Type: Conventional Cylinder

Door Thickness:1 5/8" - 1 7/8"

Grade:ANSI/BHMA Grade 1

Keyblank Grouping:SCHL-C-6-1

Keying Charges:CCAM

Keyway:Marks C

Num Pins:6

Strike:ANSI, 1-1/4" x 4-7/8", 1-1/4" Lip, Square Corne

Latch Bore Diameter:1"

Model: Marks, Marks USA 195F26D, 195F/26D, 195F10B,195F-10B,

Marks USA 195F Survivor Storeroom Lock

SKU: 195F

In Stock
icon Chat
Picture for manufacturer MARKS USA

Finish *

US26D - Satin Chrome
US26D - Satin Chrome
US10B - Oil Rubbed Bronze [+$48.50]
US10B - Oil Rubbed Bronze [+$48.50]

Keying *

$169.97

$545.36

You saved $375.39

About this item

The Marks USA Survivor leverset has a unique "clutch" mechanism that radically reduces the wear and abuse that typical cylindrical lever sets endure. When locked, the levers of the Survivor disengage from the retractor and other interior mechanisms of the lock. The levers of the Survivor swing freely, without resistance. This reduces the amount of wear on lock components and eliminates "lever droop". The use of a clutch results in longer lasting, lower maintenance, eloquent solution.

Resources

Marks USA 195F Survivor Storeroom Lock

Function:Storeroom -ANSI F86- Deadlocking latch by lever inside, key outside. Outside lever always locked.

Backset:2-3/4 Inch

Bore Hole Diameter:2-1/8"

Rose/Escutcheon Design:3-7/16" Diameter Cylinder Type: Conventional Cylinder

Door Thickness:1 5/8" - 1 7/8"

Grade:ANSI/BHMA Grade 1

Keyblank Grouping:SCHL-C-6-1

Keying Charges:CCAM

Keyway:Marks C

Num Pins:6

Strike:ANSI, 1-1/4" x 4-7/8", 1-1/4" Lip, Square Corne

Latch Bore Diameter:1"

Model: Marks, Marks USA 195F26D, 195F/26D, 195F10B,195F-10B,
