Mckinney T4A3786 POE Power Over Ethernet, 4-1/2x4-1/2 Five Knuckle Heavy Weight Full Mortise Series, Steel

Mckinney T4A3786 POE Power Over Ethernet, 4-1/2x4-1/2 Five Knuckle Heavy Weight Full Mortise Series, SteelANSI:

A8111

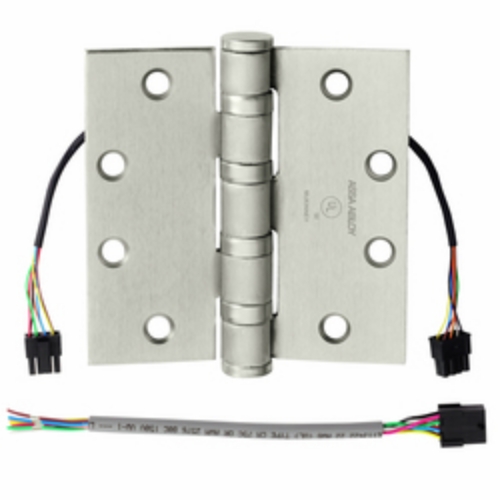

ElectroLynx Power over Ethernet (PoE) Hinge

Brass eyelets add protection and durability to the PoE hinge which features common wire colors coordinated to work with intelligent Power over Ethernet  lectromechanical hardware from SARGENT and Corbin RusswinThe PoE hinge should be installed in the second from bottom hinge position on the door. Once installed, it will give no outward indication of its function and will transfer power and data efficiently and reliably, as long as the wire capacity is not exceededAll PoE hinges are factory tested and specially packaged to minimize damage during shipment. Installation instructions are packed with each hinge. Along with the PoE hinge, mating PoE door and frame side harnesses are required to complete the opening. The required PoE harnesses must be ordered separately- Heavy weight hinges should be used on all extra heavy doors or those exposed to high frequency use

T4A3386- Stainless steel base or available in brass base material polished

• For Beveled Edge, where doors are beveled on hinge side, specify T4A4386 or T4A4786

Inches: 4 1/2" x 4 1/2"

Gauge: .180

mm:114.3 x 114.3

No. of Holes:8

Fasternes: mochine- 1/2 x 12-24  Wood1 1/4 x 12
