McKinney TA2314 4.5X4, 5 Knuckle, Standard Weight Full Mortise Ball Bearing Hinge

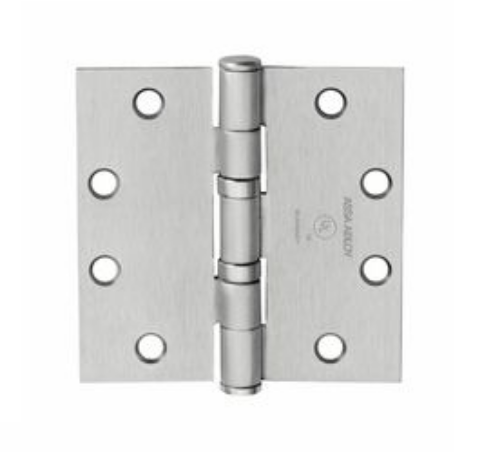

McKinney TA2714 4.5X4 26D, 5 Knuckle, Standard Weight Full Mortise Ball Bearing Hinge

Full Mortise Hinge - The most common application is a flush door/frame/wall condition using a hollow metal frame with a standard hollow metal or wood door which is flush or 1/16" inset from the face of the frame, with a wall which is either flush (or inset from the face of the frame. Recommended to hang door for 180˚ swing: Full Mortise Hinge. The same hinge could be used with a wood or aluminum frame provided the door/frame/wall conditions are flush.

TA2314    ANSI Cross Reference: A2112 -Brass base*material* A5112 -Stainless steel

Door/Frame Type:  Wood or Metal

Hinge Type:Full Mortise

Door, Frame Wall Conditions:Flush* (Includes door and frame conditions of up to 1/8" inset)

Base Material: Finish 32D - Stainless steel Finishes 23D,10B - Brass

Hinge Weight:Standard

Inches:4 1/2" x 4"

Gauge:.134

No. of Holes:8

Fasteners: Machine:1/2 x 12-24 Wood:11/4 x 12

Hinge Corner:Square

Finishes:US26D SatinChrome, BSP Black Suede Powder Coat Finish, 26 Bright Chrome, 10B Dark Oxidized Satin Oil Rubbed Bronze, 3 Bright Brass, USP Primed for painting, 4 Satin Brass

Mackinney TA2314 4-1/2x4 26D, US, US4, US26, US10B, USP, BSP
