McKinney TA2314-4.5X4.5-QC4/8/12, ElectroLynx 5 Knuckle, Standard Weight Full Mortise BB Hinge

McKinney TA2314-4.5X4.5-QC4/8/12, ElectroLynx*5 Knuckle, Standard Weight Full Mortise Ball Bearing Hinge*

TA2714 -Full Mortise Hinge - The most common application is a flush door/frame/wall condition using a hollow metal frame with a standard hollow metal or wood door which is flush or 1/16" inset from the face of the frame, with a wall which is either flush (or inset from the face of the frame. Recommended to hang door for 180˚ swing: Full Mortise Hinge. The same hinge could be used with a wood or aluminum frame provided the door/frame/wall conditions are flush.

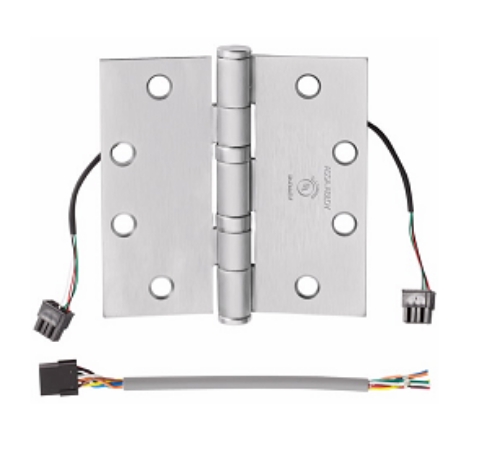

ElectroLynx Hinge (QC option):

Available on standard and heavy weight full mortise bearing hinges as well as swing clear and wide throw hingesElectric hinges allow a constant flow of current from the power source through the hinge to electrified door hardware. No external wires can be seen, eliminating tampering and improving the aesthetics of the door openingMaterials: brass, stainless steel, and steelFor 4 amp continuous @ 24 volts AC or DC per circuit, 28 gauge multi-strand wires are used.An 8 position connector is used for QC4 and QC8 wire hinges. An 8 position and a 4 position connector is used for QC12 wire hinges.Hand of hinge must be specified on two knuckle hingesCan be used in conjunction with MM option on most full mortise hinges. QC12 x MM not recommended for wood or solid core doorsFull Mortise QC hinges are available in most BHMA and McKinney powder coat finishesWires are coordinated to work wth other ASSA ABLOY Group brands electro-mechanical hardware Options: QC4 2 circuits, 4 wire QC8 4 circuits, 8 wire QC12 6 circuits, 12 wire

McKinney TA2714:

ANSI Cross Reference: TA2314 - A5112 - Stainless steel TA2314 - A2112 - Brass

Door/Frame Type:  Wood or Metal

Hinge Type:Full Mortise

Door, Frame Wall Conditions:Flush* (Includes door and frame conditions of up to 1/8" inset)

Base Material:Stainlesss steel / Brass

Hinge Weight:Standard

Inches:4 1/2" x 4 1/2",(mm: 114.3 x 114.3)

Gauge:.134

No. of Holes:8

Fasteners: Machine:1/2 x 12-24 Wood:11/4 x 12

Hinge Corner:Square

Finishes:US26D SatinChrome, BSP Black Suede Powder Coat Finish, 26 Bright Chrome, 10B Dark Oxidized Satin Oil Rubbed Bronze, 3 Bright Brass, USP Primed for painting, 4 Satin Brass

Mackinney TA2714 QC4, QC8,-1/2x41-1/2 26D, US, US4, US26, US10B, USP, BSP
