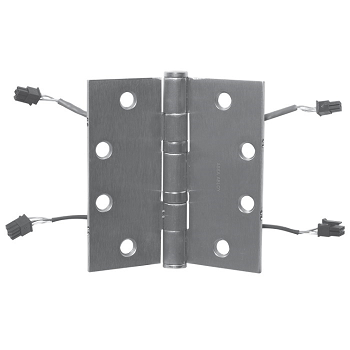

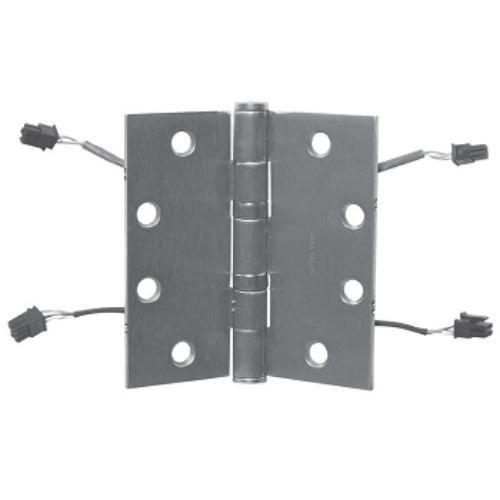

McKinney TA2714-4.5X4.5-26D-POE, ElectroLynx Power over Ethernet, 5 Knuckle, Standard Weight, BB Hinge

McKinney TA2714-4.5X4.5-26D-POE, ElectroLynx Power over Ethernet, 5 Knuckle, Standard Weight, BB Hinge

TA2714 -Full Mortise Hinge - The most common application is a flush door/frame/wall condition using a hollow metal frame with a standard hollow metal or wood door which is flush or 1/16" inset from the face of the frame, with a wall which is either flush (or inset from the face of the frame. Recommended to hang door for 180˚ swing: Full Mortise Hinge. The same hinge could be used with a wood or aluminum frame provided the door/frame/wall conditions are flush.

ElectroLynx Power over Ethernet (PoE) Hinge

Brass eyelets add protection and durability to the PoE hinge which features common wire colors coordinated to work with intelligent Power over Ethernet  lectromechanical hardware from SARGENT and Corbin RusswinThe PoE hinge should be installed in the second from bottom hinge position on the door. Once installed, it will give no outward indication of its function and will transfer power and data efficiently and reliably, as long as the wire capacity is not exceededAll PoE hinges are factory tested and specially packaged to minimize damage during shipment. Installation instructions are packed with each hinge. Along with the PoE hinge, mating PoE door and frame side harnesses are required to complete the opening. The required PoE harnesses must be ordered separatelyAvailable on: 41 /2" and 5" TA2314 & TA2714 Standard Weight 5 Knuckle 4 1/2" and 5" T4A3386 & T4A3786 Heavy Weight 5 Knuckle

McKinney TA2714:

ANSI Cross Reference:A8112

Door/Frame Type:  Wood or Metal

Hinge Type:Full Mortise

Door, Frame Wall Conditions:Flush* (Includes door and frame conditions of up to 1/8" inset)

Base Material:Steel

Hinge Weight:Standard

Inches:4 1/2" x 4 1/2",(mm: 114.3 x 114.3)

Gauge:.134

No. of Holes:8

Fasteners: Machine:1/2 x 12-24 Wood:11/4 x 12

Hinge Corner:Square

Finishes:US26D SatinChrome

Mackinney TA2714 PEO
