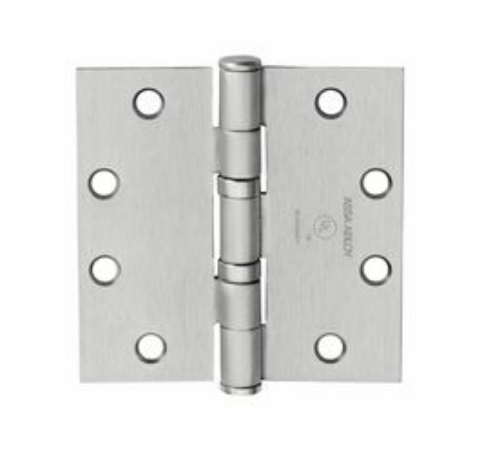

McKinney TA2714 5x4.5, 5 Knuckle, Standard Weight Full Mortise Ball Bearing Hinge

McKinney TA2714 5x4.5, 5 Knuckle, Standard Weight Full Mortise Ball Bearing Hinge

Full Mortise Hinge - The most common application is a flush door/frame/wall condition using a hollow metal frame with a standard hollow metal or wood door which is flush or 1/16" inset from the face of the frame, with a wall which is either flush (or inset from the face of the frame. Recommended to hang door for 180˚ swing: Full Mortise Hinge. The same hinge could be used with a wood or aluminum frame provided the door/frame/wall conditions are flush.

TA2714

ANSI Cross Reference:A8112

Door/Frame Type:  Wood or Metal

Hinge Type:Full Mortise

Door, Frame Wall Conditions:Flush* (Includes door and frame conditions of up to 1/8" inset)

Base Material:Steel

Hinge Weight:Standard

Inches:5x5"

Gauge:.134

No. of Holes:8

Fasteners: Machine:1/2 x 12-24 Wood:11/4 x 12

Hinge Corner:Square

Finishes:US26D SatinChrome, BSP Black Suede Powder Coat Finish, 26 Bright Chrome, 10B Dark Oxidized Satin Oil Rubbed Bronze, 3 Bright Brass, USP Primed for painting, 4 Satin Brass

Mackinney TA2714 4-5x4.5 26D, US, US4, US26, US10B, USP, BSP
