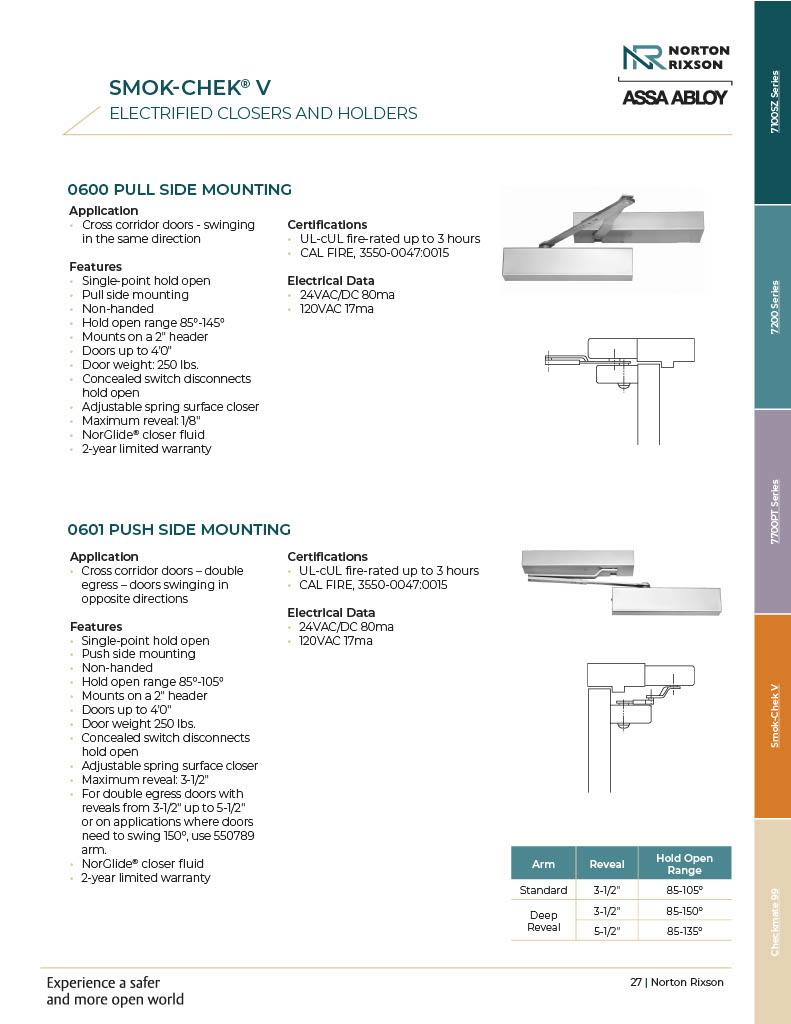

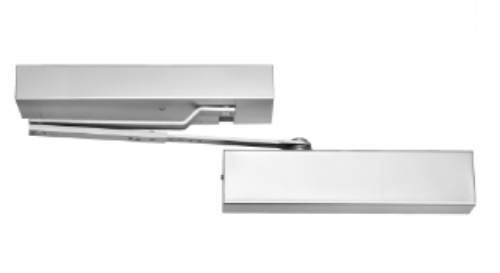

Norton Rixson 0601-689 Smok-Chek-V Electrified Closer/Holder - Push Side Mounting

Norton Rixson *0601-689 Smok-Chek-V Electrified Closer/Holder - Push Side Mounting , Sprayed Aluminum*

Application:

 Cross corridor doors – double egress – doors swinging in opposite directions Non-handed Maximum door weight 250 lbs. Doors up to 4'0"Product Description & Features:

 Push side mount Hold open range 85 Degree- 135 Degree Doors may swing and hold at 180 Degree by using special arm 550789 Mounts on 2" header Adjustable spring surface closer Maximum reveal 3-1/2" For reveals 3-1/2" - 5-1/2" use special arm 550789 Concealed switch disconnects hold open Sprayed finishesTechnical Information:

 24VAC/DC 80ma, 120VAC 17maModel:0601 120VAC 689, 0601 24VAC/DC 689, 0601-120VAC-689, 0601-24VAC/DC-689
