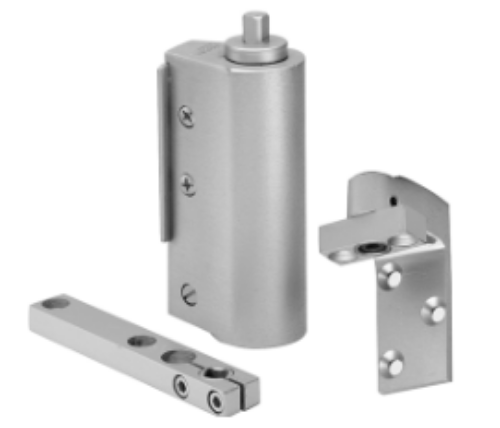

Norton Rixson 356-689 Interior Gate Closers - Sprayed Aluminum

Norton Rixson *356-689 Interior Gate Closers - Sprayed Aluminum*

Application:

Double Acting, Non-handedMaximum weight: 75 lbs.Dwarf doors from 2'2" to 3'0" wide  (660 x 914mm)Flat Arm

Description/Features:

Recommended for office rail gates, partitions, and lavatory stall doorsBody mounts under the gateSurface mounted top pivot: 35410201-3/4" door thicknessMaximum opening 90 DegreeArm adjustment door normally comes to rest at closed position. If door is to remain open, arm is set on spindle so door comes to rest at 90 DegreePackage also includes closer bracket and arm that may be surface mounted or mortisedFrame carries full weight of doorQuiet control; no slamming or flappingAll moving parts enclosed and fully immersed in lubricating checking fluidPainted finishes onlyNot compliant with ICC/ANSI A117.1 low opening force requirements
