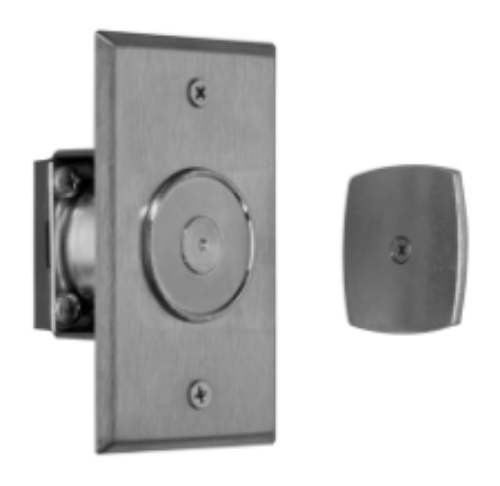

Norton Rixson 989 689 Flush Mount Electromagnetic Door Holder/Release, Wall Mounted

Norton Rixson 989 689 Flush Mount Electromagnetic Door Holder/Release, Wall Mounted

Product Details

Norton Rixson *989-689 Flush Mount Electromagnetic Door Holder/Release, Wall Mounted, Sprayed Aluminum*

Application:

Wall MountLow ProfileConcealed WiringANSI/C00011Product Description & Features:

Total Projection: 7/16" (11mm)Mounting Requirements: 2" x 4" x 2-1/2" (51 x 102 x 64mm) outlet boxWall must be properly reinforced and oulet box adequately fastenedTechnical Information:

Voltage and Current: 120VAC, 60Hz., .020 amp 24VAC/DC, 60Hz., .020 amp 12VDC, .040 amp

Norton Rixson 989 689 Flush Mount Electromagnetic Door Holder/Release, Wall Mounted

Name: Norton Rixson 989 689 Flush Mount Electromagnetic Door Holder/Release, Wall Mounted
SKU: 989-689
Price: 415.35 USD
Availability: InStock

SKU: 989-689

In Stock

Chat

$415.35

About this item

Electromagnetic Door Holders/Releases are designed for virtually any remote door release application, electromagnetic door holders/releases can be be tripped by an alarm or smoke detector or triggered by a remote switch.

Resources

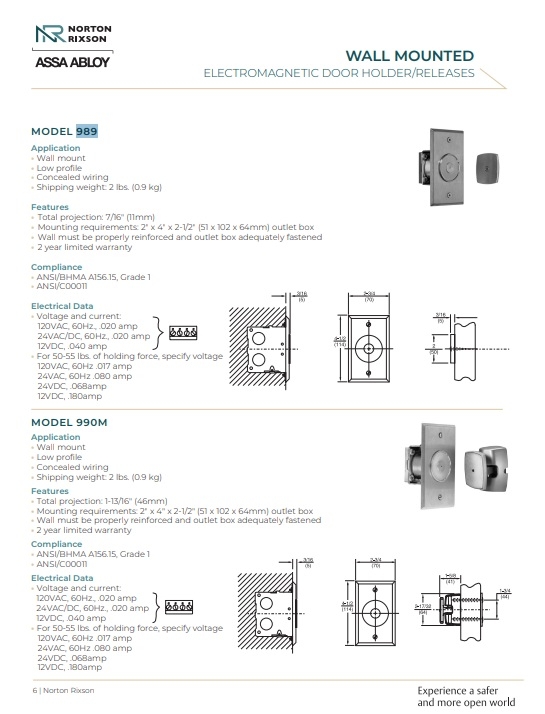

Catalog

Norton Rixson *989-689 Flush Mount Electromagnetic Door Holder/Release, Wall Mounted, Sprayed Aluminum*

Application:

Wall MountLow ProfileConcealed WiringANSI/C00011Product Description & Features:

Total Projection: 7/16" (11mm)Mounting Requirements: 2" x 4" x 2-1/2" (51 x 102 x 64mm) outlet boxWall must be properly reinforced and oulet box adequately fastenedTechnical Information:

Voltage and Current: 120VAC, 60Hz., .020 amp 24VAC/DC, 60Hz., .020 amp 12VDC, .040 amp
