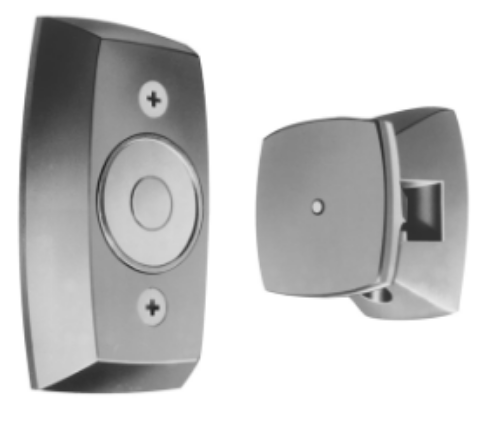

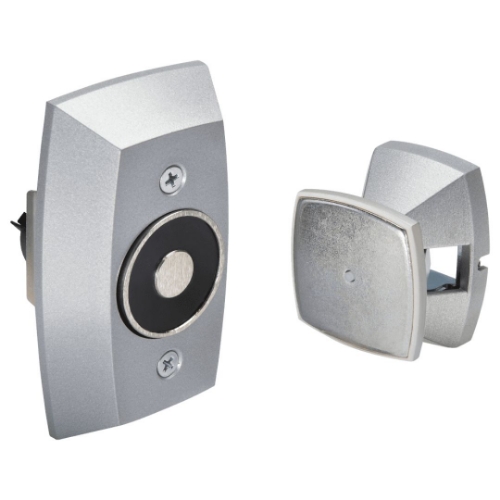

Norton Rixson 997M 689 Surface Mount Electromagnetic Door Holder/Release, Wall Mounted

Norton Rixson 997M 689 Surface Mount Electromagnetic Door Holder/Release, Wall Mounted

Product Details

Norton Rixson *997M-689 Surface Mount Electromagnetic Door Holder/Release, Wall Mounted, Sprayed Aluminum*

Application:

Wall MountConcealed WiringANSI/C00011Product Description & Features:

Total Projection: 2-5/8" (67mm)Mounting Requirements: 2" x 4" x 1-3/4" (51 x 102 x 45mm) outlet boxWall must be properly reinforced and outlet box adequately fastenedTechnical Information:

Voltage and Current: 120VAC, 60Hz., .020 amp 24VAC/DC, 60Hz., .020 amp 12VDC, .040 amp

Norton Rixson 997M 689 Surface Mount Electromagnetic Door Holder/Release, Wall Mounted

Name: Norton Rixson 997M 689 Surface Mount Electromagnetic Door Holder/Release, Wall Mounted
SKU: 997M689
Price: 473.62 USD
Availability: InStock

SKU: 997M689

In Stock

Chat

$473.62

About this item

Electromagnetic Door Holders/Releases are designed for virtually any remote door release application, electromagnetic door holders/releases can be be tripped by an alarm or smoke detector or triggered by a remote switch.

Resources

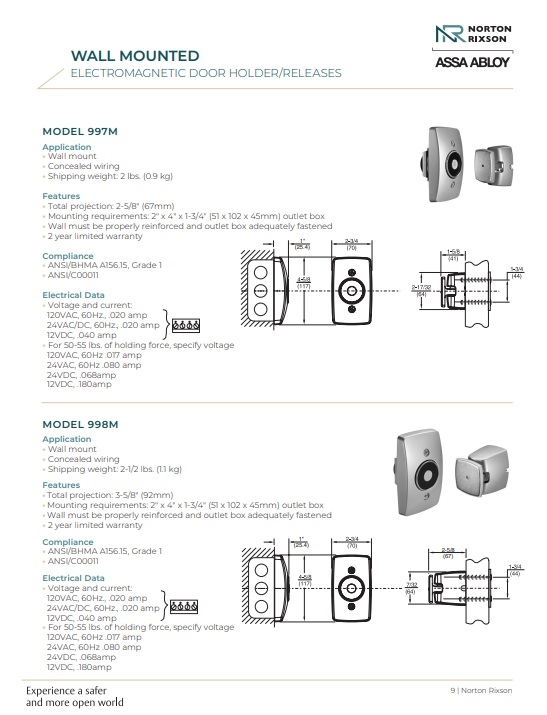

Catalog

Norton Rixson *997M-689 Surface Mount Electromagnetic Door Holder/Release, Wall Mounted, Sprayed Aluminum*

Application:

Wall MountConcealed WiringANSI/C00011Product Description & Features:

Total Projection: 2-5/8" (67mm)Mounting Requirements: 2" x 4" x 1-3/4" (51 x 102 x 45mm) outlet boxWall must be properly reinforced and outlet box adequately fastenedTechnical Information:

Voltage and Current: 120VAC, 60Hz., .020 amp 24VAC/DC, 60Hz., .020 amp 12VDC, .040 amp
