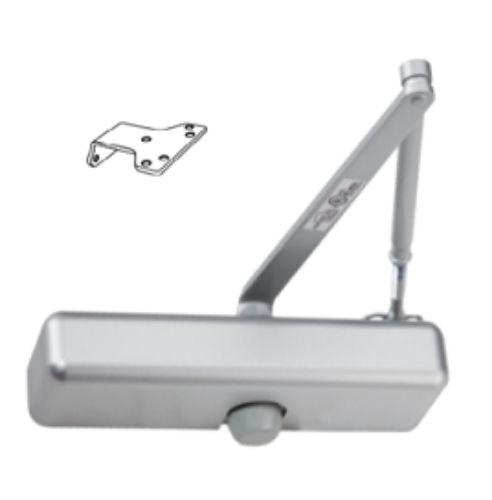

PDQ 3101-BC-PA-SV Light Commercial Grade 1 Closer, Tri-pack Arm - Streamline Cover

PDQ 3101-BC-PA-SV Light Commercial Closer, Tri-pack Arm - Streamline Cover

Features: 5lb. Barrier Free Spring Setting for ADA Compliance. 6 Additional Spring Settings that Provide 17% More Adjustment Capability to Find that Sweet Spot for Optimal Door Closing Action. Barrier Free Settings Available on Both Regular/ Top Jamb and Parallel Arm Applications.

HANDING: Non-handed.

OPERATION: Rack and pinion design.

BODY:  High strength aluminum alloy.

ARM: Stamped Steel Main Arm. Round style arm assembly.

ARM OPTIONS: Hold Open Arm. Track/Hold Open Arm. EDA (Extra Duty PA Arm). DS/DSHO heavy duty parallel stop arm. Spring Cushion Stop for DS/DSHO.

FACTORY DEFAULT SPRING SIZE, 1-4:  Size 2.

PISTON:  Hardened steel.

FACTORY DEFAULT SPRING SIZE, 3-6: Size 3.

PISTON: Hardened steel.

ADJUSTMENT: Adjustable controlled closing. Separate hydraulic backcheck standard. Separate sweep, latch and backcheck intensity valves.

SIZE: 3101 = Adjustable BF (Barrier Free) 4. 3100 = Adjustable 3-6.

MOUNTING:  Common 9-1/16" x 3/4" mounting hole pattern retrofits Yale 50, Norton 1600. Tri-packed for regular, top jamb and parallel arm installations. Includes fasteners for metal, wood and aluminum doors and frames. Sex nuts and bolts standard. Self drilling self tapping screws available.

COVER:  Streamline plastic cover optional.

FINISHES CLOSERS:  689 Aluminum, 693 Black, 695 Duro Bronze, 696 Gold, 605 Polished Brass, 626 - Satin Chrome.

FINISHES CUSHION STOPS:  605 (US3) - Bright Brass (PVD), 613 (US10B) - Oil Rubbed Bronze (PVD), 630 (US32D) - Satin Stainless Steel.

Note: PVD (Physical Vapor Deposition) coated finishes offer outstanding resistance to wear, durability and corrosion.

CERTIFICATIONS, LISTINGS, COMPLIANCES:  UL 228 listed. ANSI/UL 10C listed for labeled swinging fire doors rated for up to and including 3 hours. Certified to ANSI/BHMA A156.4-2006 Grade 1. Meets requirements of the Buy American Act. Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings.

WARRANTY: Twenty-five (25) year limited warranty.

Model: PDQ 3101 PASV, 3101 PASV PDQ, PDQ 3101PASV, PDQ 3101, PDQ 3101PASV, PDQ 3101 PASV, 3101PASV, 3101PASV PDQ, 3101PASV PDQ, PDQ3101, PDQ3101PASV, PDQ 3101PASVSV, PDQ3101PASVSV, 3101PASVSV
