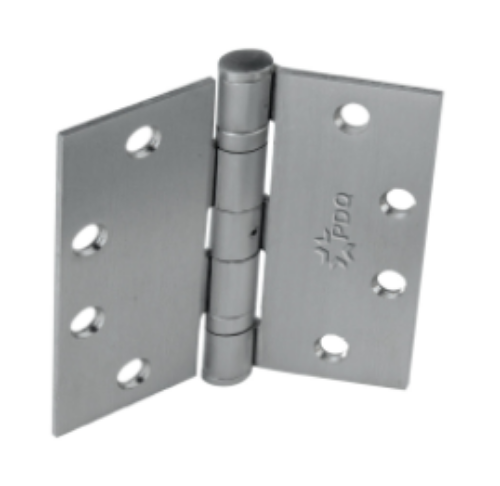

PDQ 35-SSBB-4035-NRP-630, 5 Knuckle 2 Ball Bearing, Standard Weight , Stainless Steel, Full Mortise Hinge, - 4" x 3-1/2"

PDQ 35-SSBB-4035-NRP-630, 5 Knuckle*2 Ball Bearing, Standard Weight , Stainless Steel,  Full Mortise Hinge, - 4" x 3-1/2", Non-Removable Pin*

Certified to ANSI  A5112 NON-REMOVABLE PIN (NRP): - Included with all 2 and 4 ball bearing, std and heavy weight hinges.  - Groove in pin accepts set screw in center barrel. - Set screw secured using a 3/32" hex (allen) wrench and is not accessible when door is closed. TYPE: - Full Mortise. Hinge leaves are mortised into the door and frame. SWAGGED: - Standard. - Provides 1/16" of clearance between both leaves when the hinge is in the closed position. Frequency of Use: - Medium. Thickness: - 0.134" x 0.005". Size: - 4" x 3-1/2". Hinge Weight: - Standard. MATERIAL: - Stainless Steel - For Exterior, doors, corrosive environments. FASTENERS: -  All hinges packed with Machine Screws (12-24 x 1/2" FHMS) and Wood Screws (12 x 1-1/4" FHWS). CERTIFICATIONS, LISTINGS, COMPLIANCES: - Conforms with the requirements of NFPA 80-2013, Section 6.4.3.1. - Certified to ANSI/BHMA A156.1-2006: Grade 2, 2 Ball Bearing (BB) 1,500,000 cycles. - UL 10C Listed: - SH Series Spring Hinges - EL Series Electrified Hinges. WARRANTY:  - Five (5) year limited warranty.

PDQ 35STBB4035, 35STBB4035, 35STBB4035 PDQ, 35STBB4035PDQ, PDQ 35STBB4035, 35STBB, PDQ35, 35PDQ, 35STPL40BB, 35STBB,
